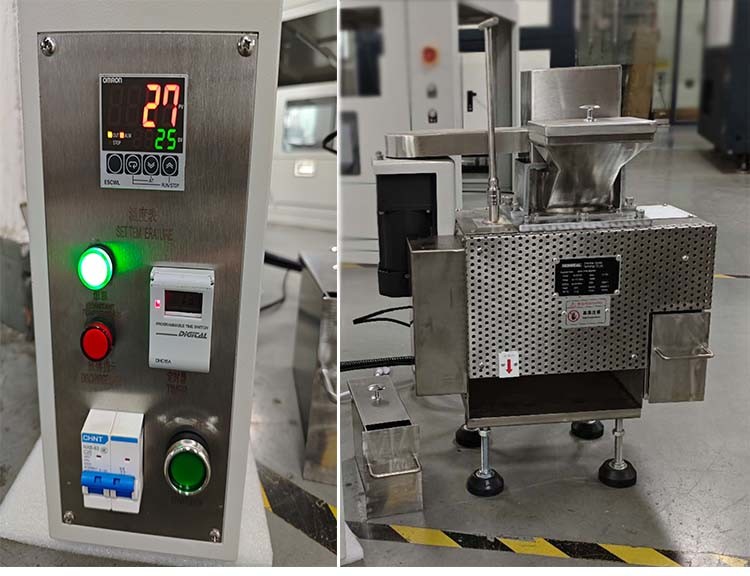

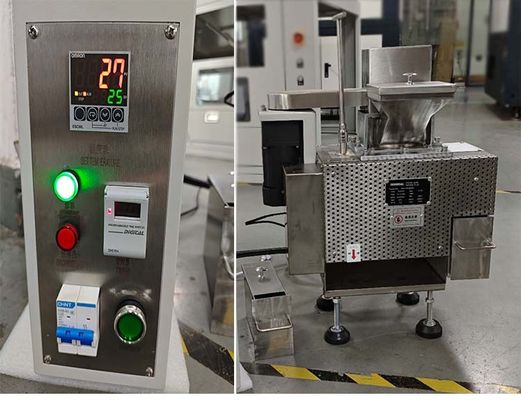

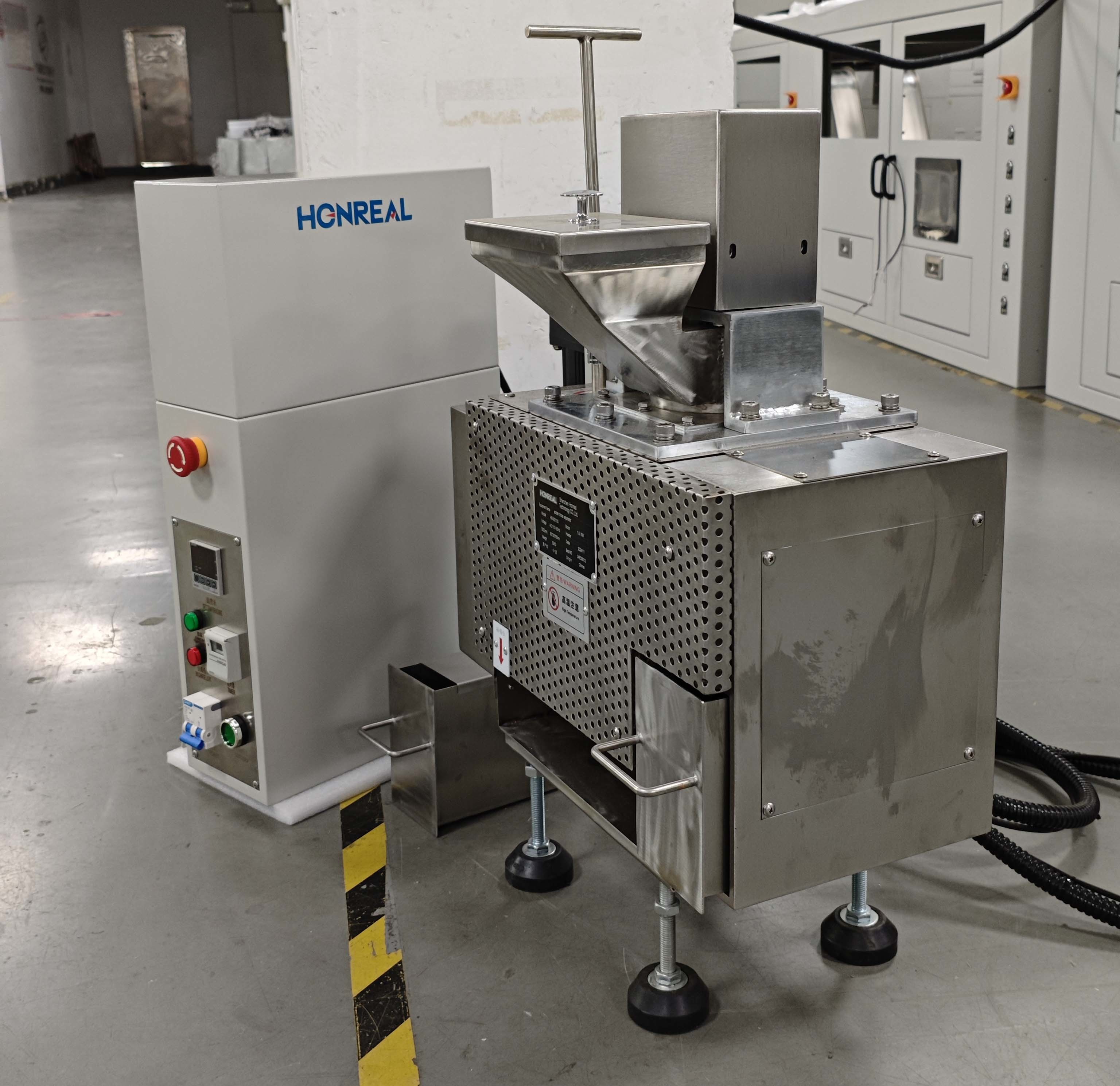

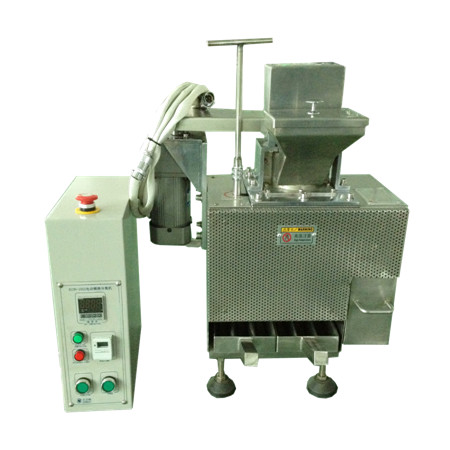

SMT Solder Dross Recovery System Solder Waste Recycling Separator Online Automatic Solder Dross Separator
HR-SD100 is an endeavor in reverting and recycling the oxides which occur during working of a Wave Soldering Machine in order to reduce production cost, create a greener environment and assist the quality process.
Use special stirring system to melt the tin residues in the tin container and separate tin and ash in the separation container by the high speed of screw rotation.
1.Characteristic:
1.Highly effective recycling of the solder waste, up to 90% yield .
2.No need to add any chemicals or reducers to the process uses physical separation to ensure a good quality product.
3.Button controls, digital temperature control sheet, accurate temperature control.
4.All-stainless steel tank, clean convenience.
5.316 grade stainless mixing bowl with an 10kg capacity with heating power for complete mixing.
6.Dross automatic feeding system, automatic feed screw.
7.Electronic liquid level alarm, manually put tin.
8.Automatic separation of tin and tin ash, into the tin and tin-ash collection device.
9.Small size, light weight, move convenience.
10.Independent smoke filtration system (Optional).
2.Technical parameters
| Item | (Parameter) |
| Mixing motor | 1φ 220V 90W |
| Mixing Heating Power | 1.6KW |
| Mixing Capacity of Bottom Tin | 10KG |
| Temperature Scope | 0-350℃ |
| Heating-up time | 50MIN |
| Feeding time | Continuous3-4kg/15min |
|
Dimension Electrical box size |
L500*W250*H650 L140*W330*H390 |
| Totol Power Consumption | 1.8KW |
| Normal running power | 0.4KW |
| Power | 1φ220V 50Hz |
| Net Weight | Appro*45kg |
Our Service
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
Certification
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
3) I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
