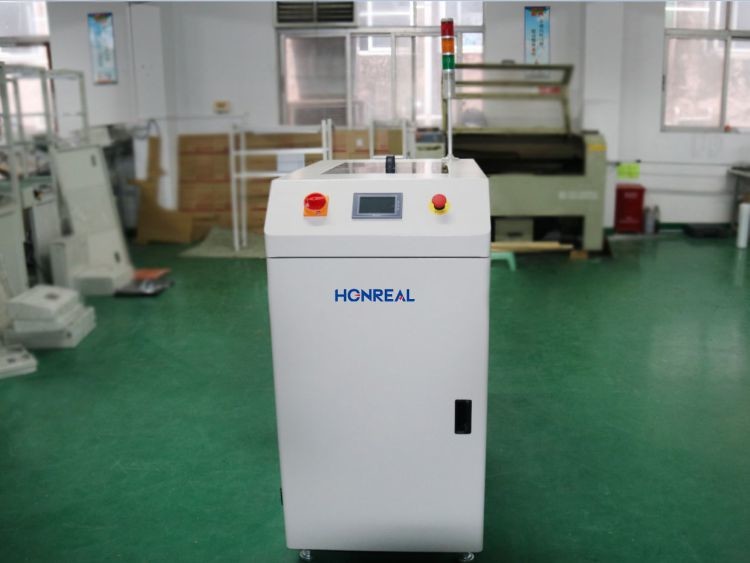

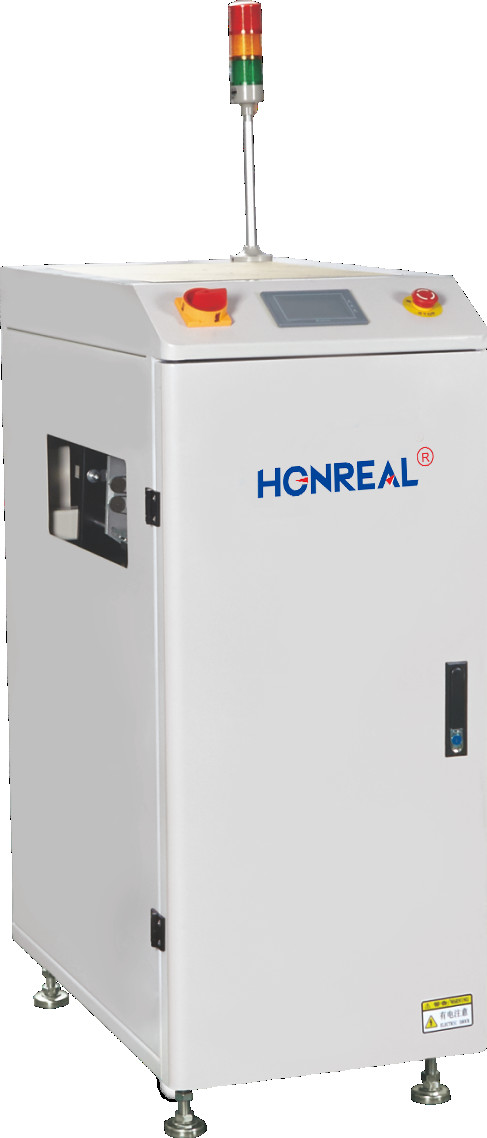

Automatic SMT Conveyor Pcb Board Inverter Flip Over Conveyor Cycling Time Approx 10 Seconds
Product introduction:
1.Stable and reliable PLC control system
2.Easy to operate LED touch screen control interface
3.Using cylinder flip, quick, smooth, precise alignment
4.Buffer deceleration design more stable, accurate
5.Optional pass working mode
6. Smooth and parallel width adjustment(leadscrew)
7.SMEMA port is compatible;
Technical parameters | |
Function | This unit is used to invert PCB (180) Meet the need of two-sided machining |
PCB thickness | Min0.6mm |
Cycling time | Approx 10seconds |
Transport direction | Left to right/right to left(optional) |
Transport height | 900±20mm(or customized) |
Air pressure | 4-6 bar, MAX10L/minute |
Power supply | 100-230V AC(customized) single phase, MAX 300V/A |
Specifications | ||
Model No | HR-350FB | HR-460FB |
PCB size (L×W)～(L×W)mm | (50x50)～(450x350) | (50x50)～(550x460) |
Machine size (L×W×H)mm | 500×850×1200 | 600×950×1200 |
Weight | 110kg | 130kg |
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
