Automatic Magazine 90 Degree PCB Unloader Multi Rack L Shape CE

1set
MOQ
USD 2800-4000 Per Set
Price
Automatic Magazine 90 Degree PCB Unloader Multi Rack L Shape CE
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: Min0.6mm
PCB Loading Time: Approx 6 Seconds
Magazine Change-over Time: Approx 30 Seconds
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)~(L×W)mm: (50x50)~(350x250)mm
Machine Size (L×W×H)mm: 1700×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Weight: 130kg
Highlight:

PCB Loader And Unloader Multi Rack

,

PCB Loader And Unloader L Shape

,

Automatic pcb magazine unloader

Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250XL
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description

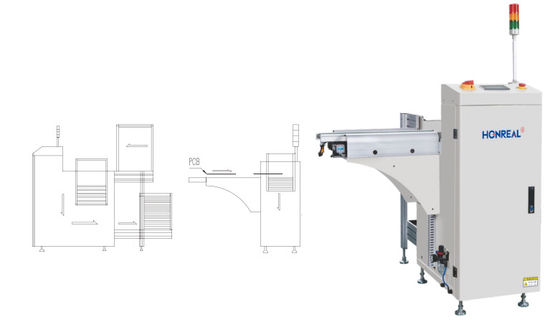

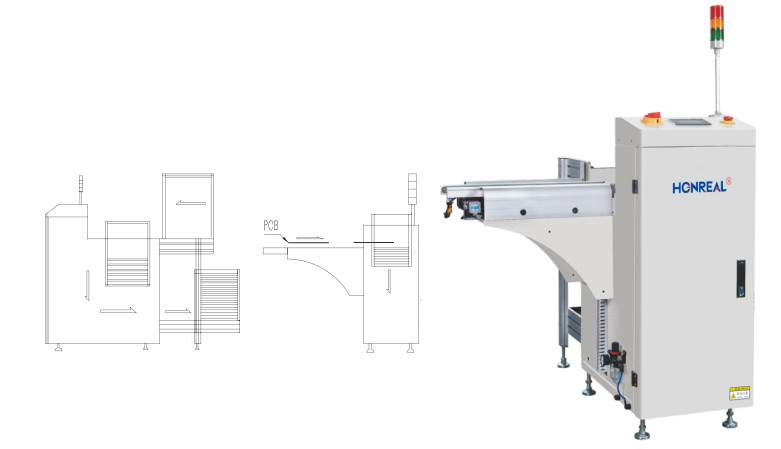

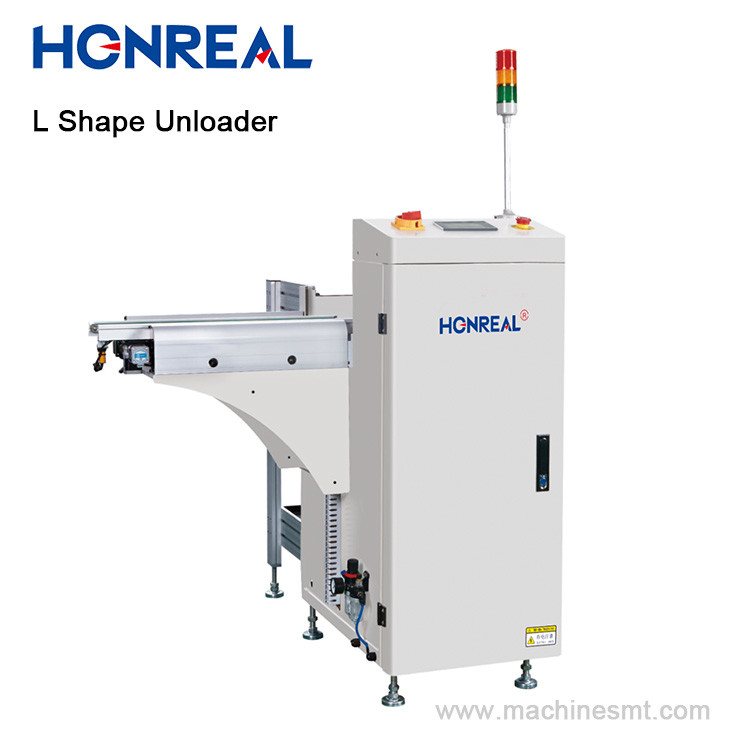

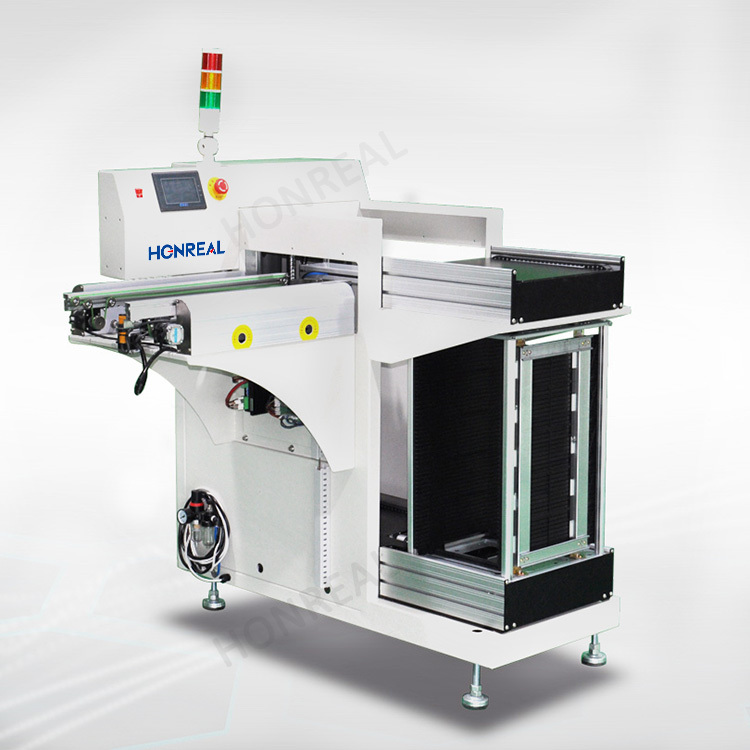

Automatic Stacker Handle SMT Handling Multi Rack Magazine Unloader Machine L Shape PCB Loader And Unloader Equipment


Product application:


It is used in the source of SMT and AI production lines. It does not need to touch the PCB board by hand to better protect the PCB board. The PCB Loader automatically sends the PCB in the anti-static material frame to the production line according to the signal of the rear equipment. It can also set the function of starting push plate layer/layer push plate; this machine has the functions of high lifting precision, automatic counting, fault alarm, alarm information prompting, etc. It is an essential equipment for realizing full line automation.



Technical parameters


Function This equipment is used to collect PCBs into magazine at the end of SMT production line

PCB thickness


Min0.6mm

Magazine number


Transport up:1pcs,transport down:1ps,(or customized)

Step pitches select


1-4(10mm step pitches)

PCB loading time


Approx 6 seconds

Magazine change-over time


Approx 30 seconds

Transport direction


Left to right/right to left(optional)

Transport height


900±20mm(or customized)

Air pressure


4-6 bar, MAX10L/minute

Power supply


100-230V AC(customized) single phase, MAX 300V/A



Specifications


Model No


HR-250XL HR-330XL HR-390XL HR-460XL
PCB size (L×W)~(L×W)mm (50x50)~(350x250) (50x50)~(455x330) (50x50)~(530x390) (50x50)~(530x460)
Machine size (L×W×H)mm 1180×1130×1200 1300×1420×1200 1500×1530×1200 1500×1630×1200
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 170kg 150kg 170kg 185kg
