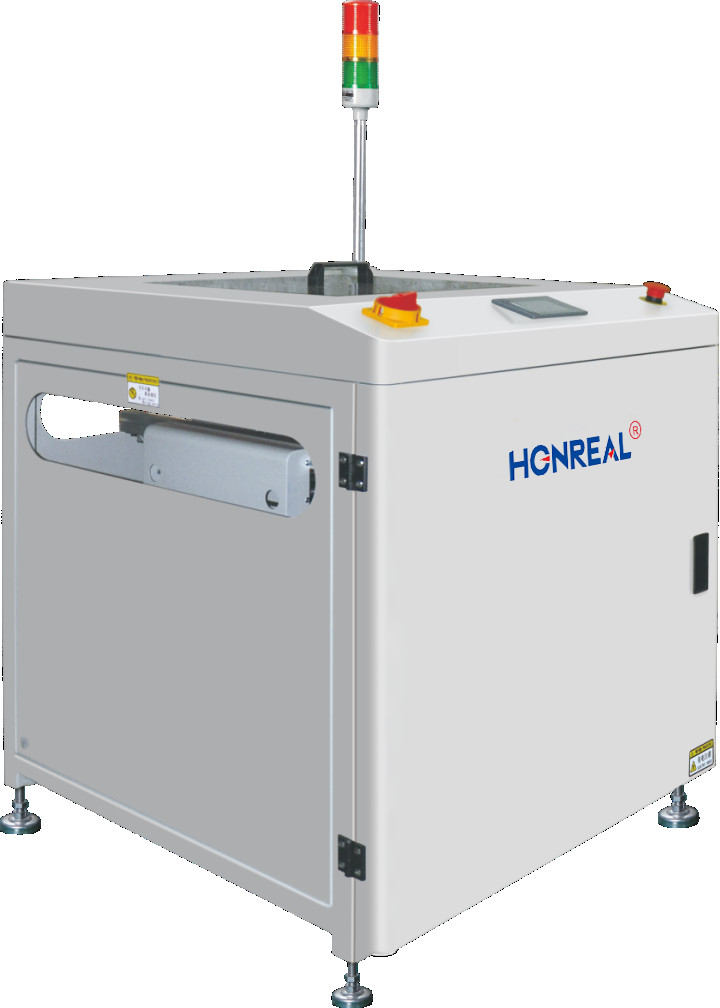

LED Touch Screen Automatic PCB 90 Degrees SMT Turning Conveyor Machine
Description

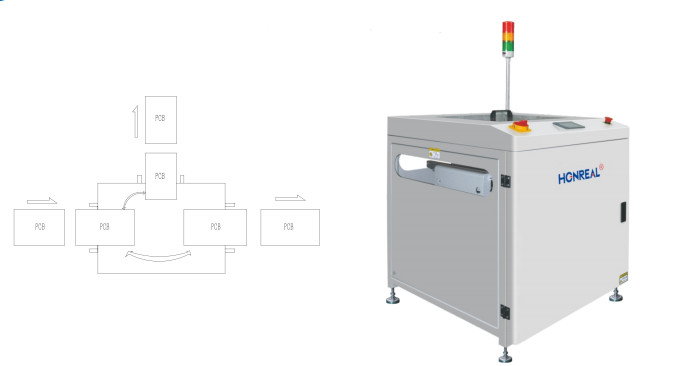

The turn PCB turning conveyor is made to turn the direction of your pcb boards 90 or 180 degrees. The turn conveyors can turn your boards clockwise or counter-clockwise.
The PCB turn will change the flow direction in the assembly line. That is possible with a PCB turning conveyor.
Features
1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate movement (stepping motor).
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
| Technical parameters | |
| Function | This equipment is used to adjust the running direction of the circuit board on the production line to different paths . |
| PCB thickness | Min0.6mm |
| Cycle time | Approx 15seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 250V/A |
| Specifications | ||
| Model No | HR-250ZD | HR-350ZD |
| PCB size(L×W)～(L×W)mm | (50x50)～(350x250) |
(50x50)～(460x330)
|
| Machine size (L×W×H)mm | 600x650x1300 | 700x750x1300 |
| Weight | 170KG | 195kg |
Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
FAQ:
Q: How do you guarantee the quality of your sales?
A: We ensure the quality of our products through rigorous testing before delivery. Every set of machines undergoes thorough testing to ensure excellent performance and reliability.
Q: How is the training process?
A: After purchasing our machines, your engineers can visit our company for training. Alternatively, we provide comprehensive training materials, including training videos and user manuals, which make it easy to learn and operate the machines. The user manual will be provided along with the machine.
Q: Can I have my logo on the product?
A: Yes, we offer customized logo services free of charge. Please let us know your requirements, and we will ensure your logo is incorporated onto the product.
Q: Are the machines difficult to use?
A: No, the machines are designed to be user-friendly. Previous clients have found that it takes a maximum of two days to learn how to operate the machines effectively.
