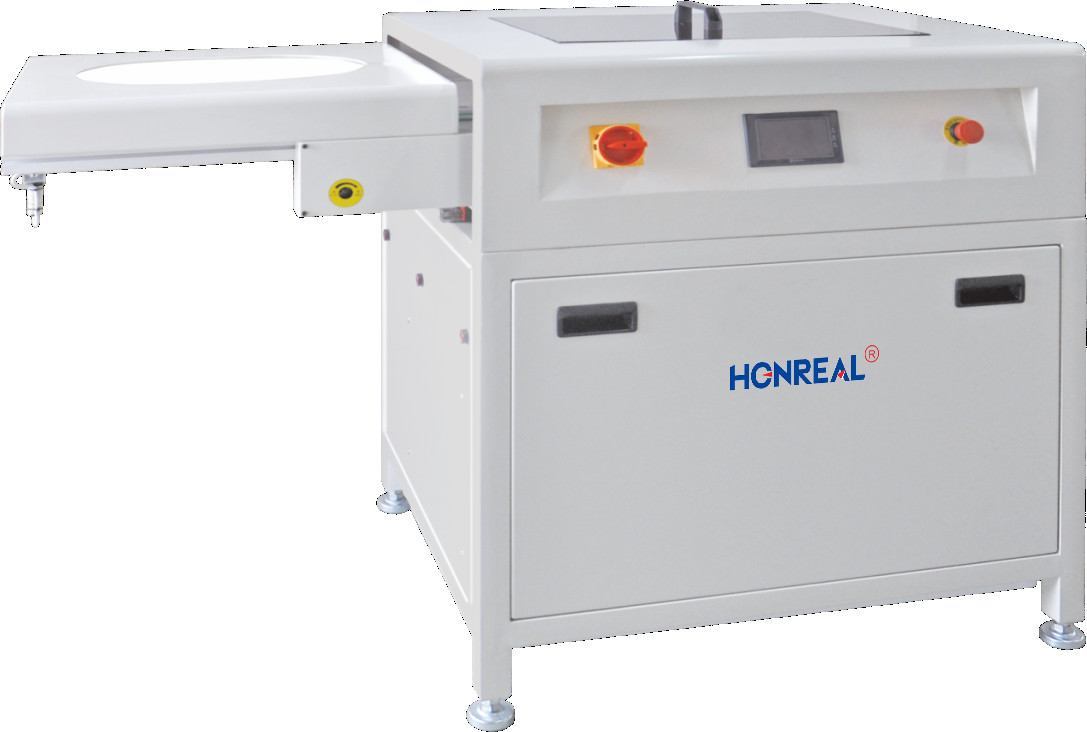

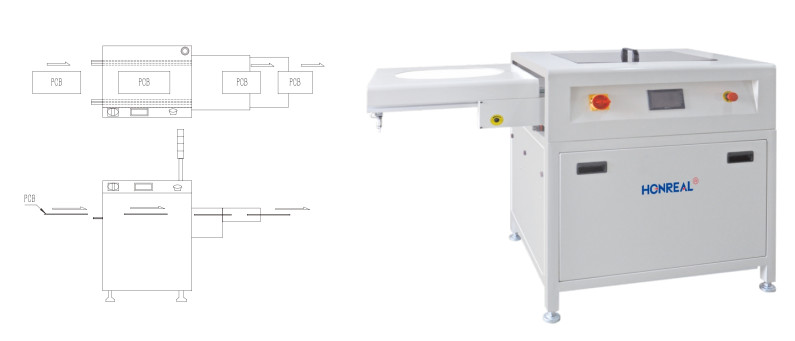

PCB Linking Conveyor Lowering Gate PCB Conveyor SMT Line Telescopic Conveyor
Description

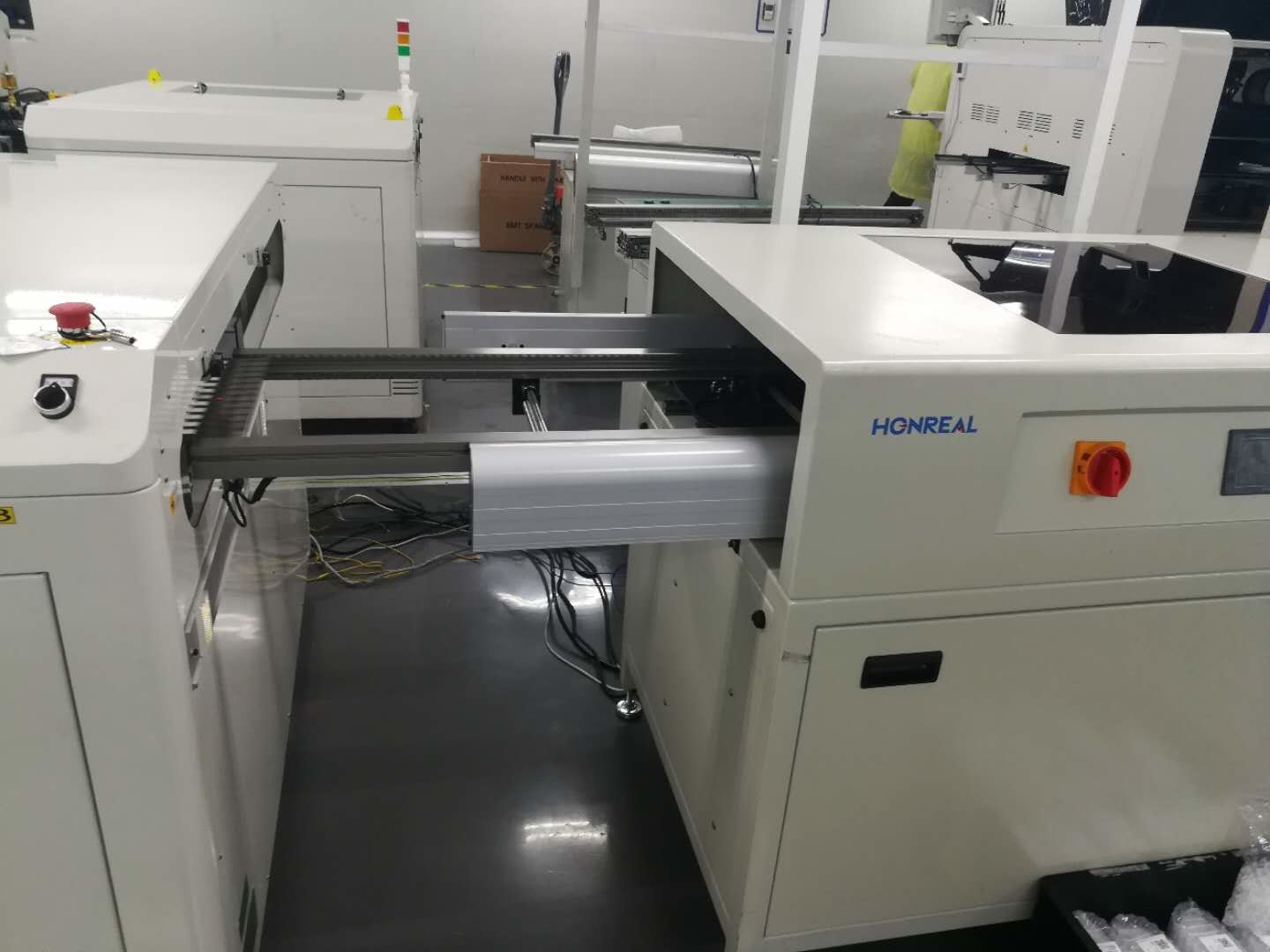

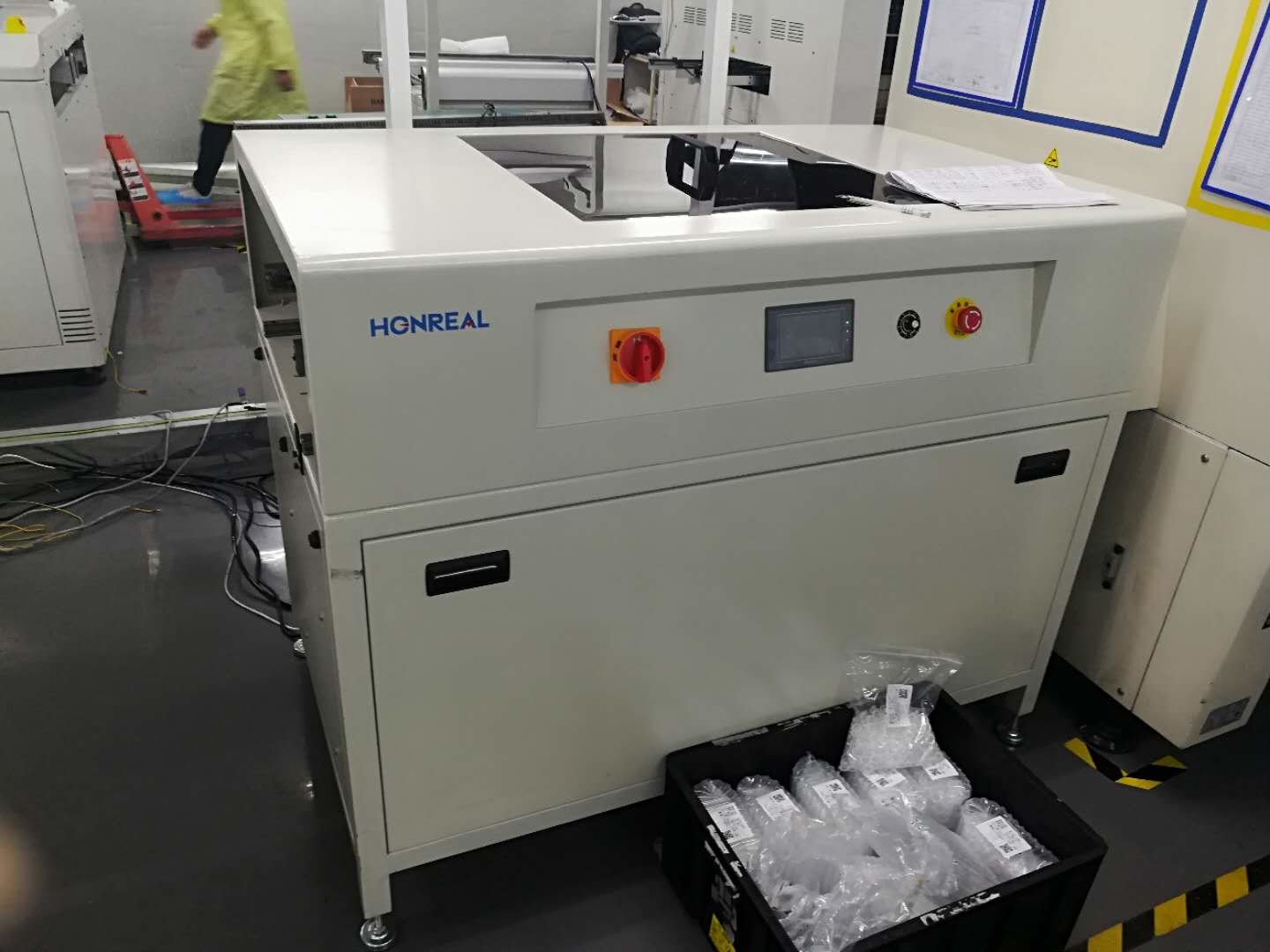

The SMT Telescopic Gate Conveyor unit is used to allow passage across the line when required. SMT Telescopic Gate Conveyor uses a very swift and smooth retraction and extension of the conveyor across busy walkways. The SMT Telescopic Gate Conveyor is fitted with safety sensors to stop any accidents occurring.
Features
1.User friendly soft touch LED membrane control panel
2.Swift and smooth retraction/extension of the conveyor
3.Safety sensor installed to enhance safety
4.850mm passage way, or specify
5.SMEMA compatible
|
Technical parameters |
|
|
Function |
This equipment is used at the junction of the aisle of the production line to play the role of transmission and channel |
|
PCB thickness |
Min0.6mm |
|
Transport direction |
Left to right/right to left(optional) |
|
Transport height |
900±20mm(or customized) |
|
Conveyor belt type |
Round belt or flat belt |
|
Power supply |
100-230V AC(customized) single phase, MAX 100V/A |
|
Specifications |
||
|
Model No |
HR-350GD |
HR-460GD |
|
PCB size(L×W)～(L×W)mm |
(50x50)～(460x330) |
(50x50)～(530x460)
|
|
Machine size (L×W×H)mm |
800x750x1100 |
850x850x1100 |
|
Weight |
130KG |
160kg |
Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Certification
Packing
