OVERVIEW
When cleaning assembled printed circuit boards also known as PCBA cleaning, the main goal is to remove resin and flux residues from populated boards and hybrids as well as production related residues created by handling.

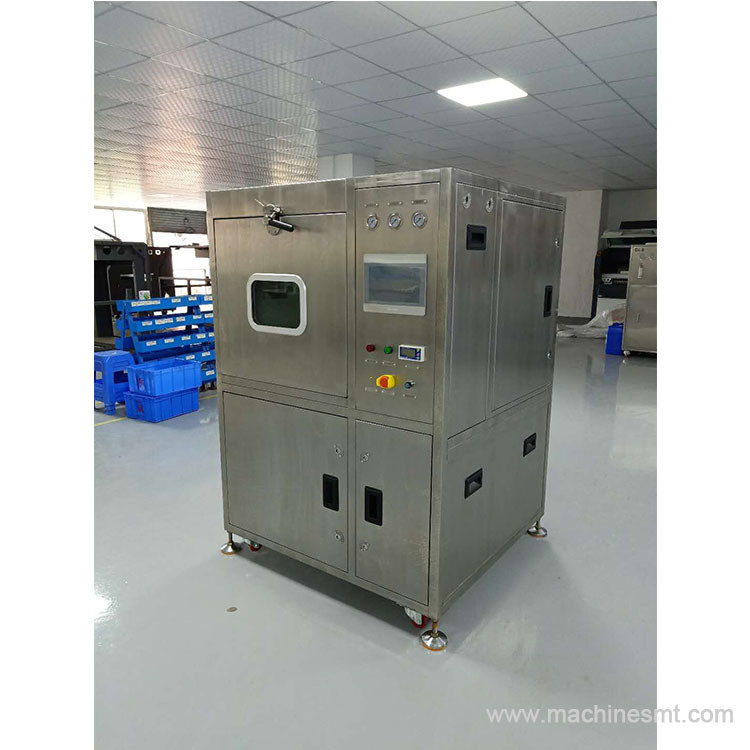

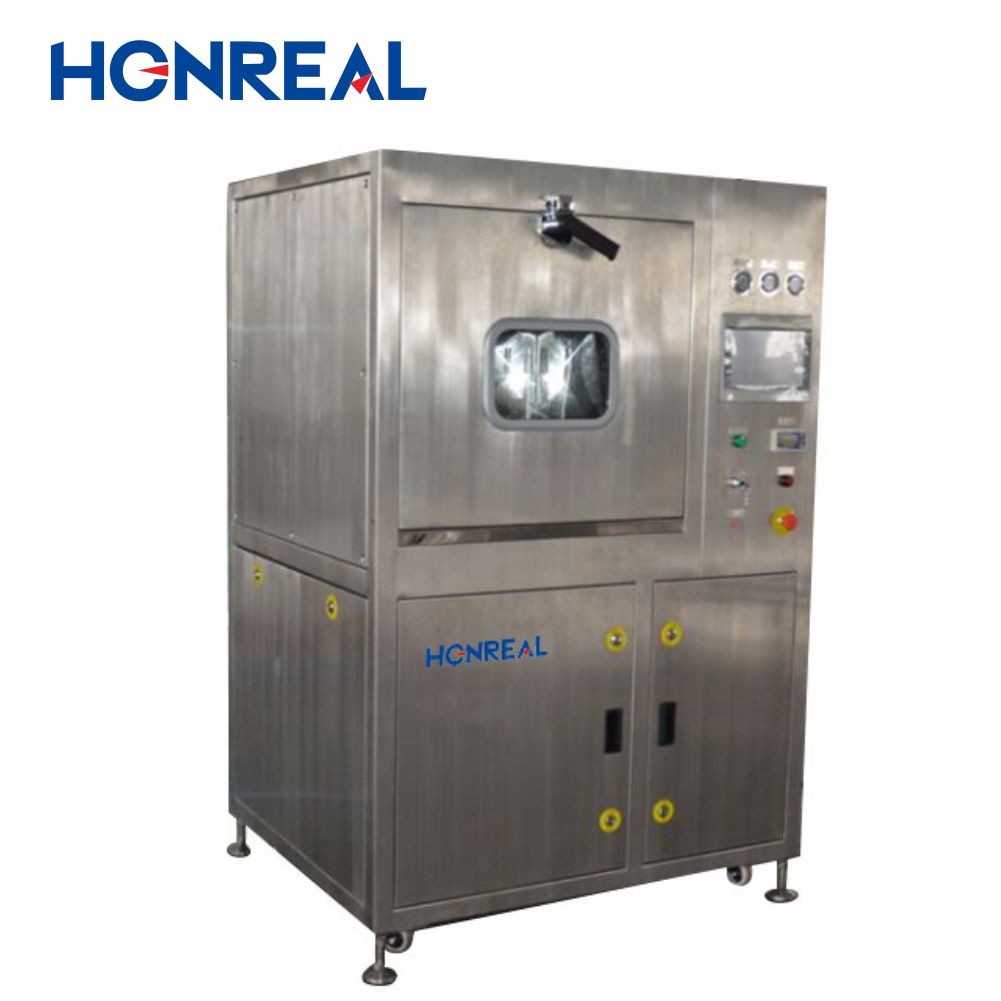

The HR-Q6 is used with Deionizer water, about 30~60L/min and a pressure of ≤0.4Mpa the machine perform well on both lead-based (eutectic) and lead-free solders.
Can be used for SMT, through-hole, and mixed technology assemblies. All flux types are removed, including water soluble, resin, and no clean, and all contaminants, component residue created during assembly.
Technical Parameters:
| content | Parameter |
| Model No | HR-Q6 |
| Clean area size | L610*W560*H160mm 2layer |
| Concentration tank capacity | 30L |
| Dilution tank capacity | 70L |
| Spray tank capacity | 17-23L |
| Sprayer heater power | 6KW |
| Cleaning time | 0~ 99 minutes(adjustable) |
| Cleaning temperature(liquid) | Room temperature ~75℃ (adjustable) |
| Rinse time | 1 minute/time(1-59 times/adjustable) |
| Rinse temperature(DI water) | Room temperature~75 ℃(adjustable) |
| Drying time | 0~99 minutes/(adjustable) |
| Resistivity monitoring range | 0~18M |
| Solvent tank heater power | 9KW |
| Drying temperature | Room temperature~99 ℃/ (adjustable) |
| Drying heater power/KW | 6KW |
| Injection pressure | 30PSI- 90PSI (adjustable) |
| Chemical-grade filter |
0.22μm (filter particles:solder paste, rosin, flux and contaminants) |
| Di water filter | 1 inch fast junction type interface |
| Chemical discharge port | 1 inch fast junction type interface |
| Real-time pressure gauge | 3 PCS (nozzle/DI water/waste) |
| Horizontal spray pump | 5.5KW |
| Exhaust port size | Φ100(W)*30mm(H) |
| Power ;air source | AC380V 50HZ 65A/0.45MPa~0.75MPa |
| Net weight | 400kg |
| Dimension | L1400*W1350*H1830mm |
Shenzhen Honreal Technology Co., Ltd. is recognized as a national high-tech enterprise, focusing on the research, development, production, and sales of SMT equipment. It provides services to leading electronic companies worldwide, including those listed in the top 500. The company has a registered capital of 5 million. From its inception, Honreal has remained committed to technological advancement, considering quality as vital for its existence. It emphasizes independent research and development, relentlessly pursuing innovation. As a result of its continuous efforts, the company has garnered several high-tech invention patents.
Q1: What is the cycle time of HR-Q6 batch cleaning machine?
A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.
Q2: What liuqid can be used in HR-Q6 to clean PCBA?
A2: Water-based PCBA cleaning liquid wash, DI water rinse.
Q3: Have many pcbas can HR-Q6 clean in one cycle?
A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.
Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?
A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.
Comparison pictures before clean and after clean:
