Features:

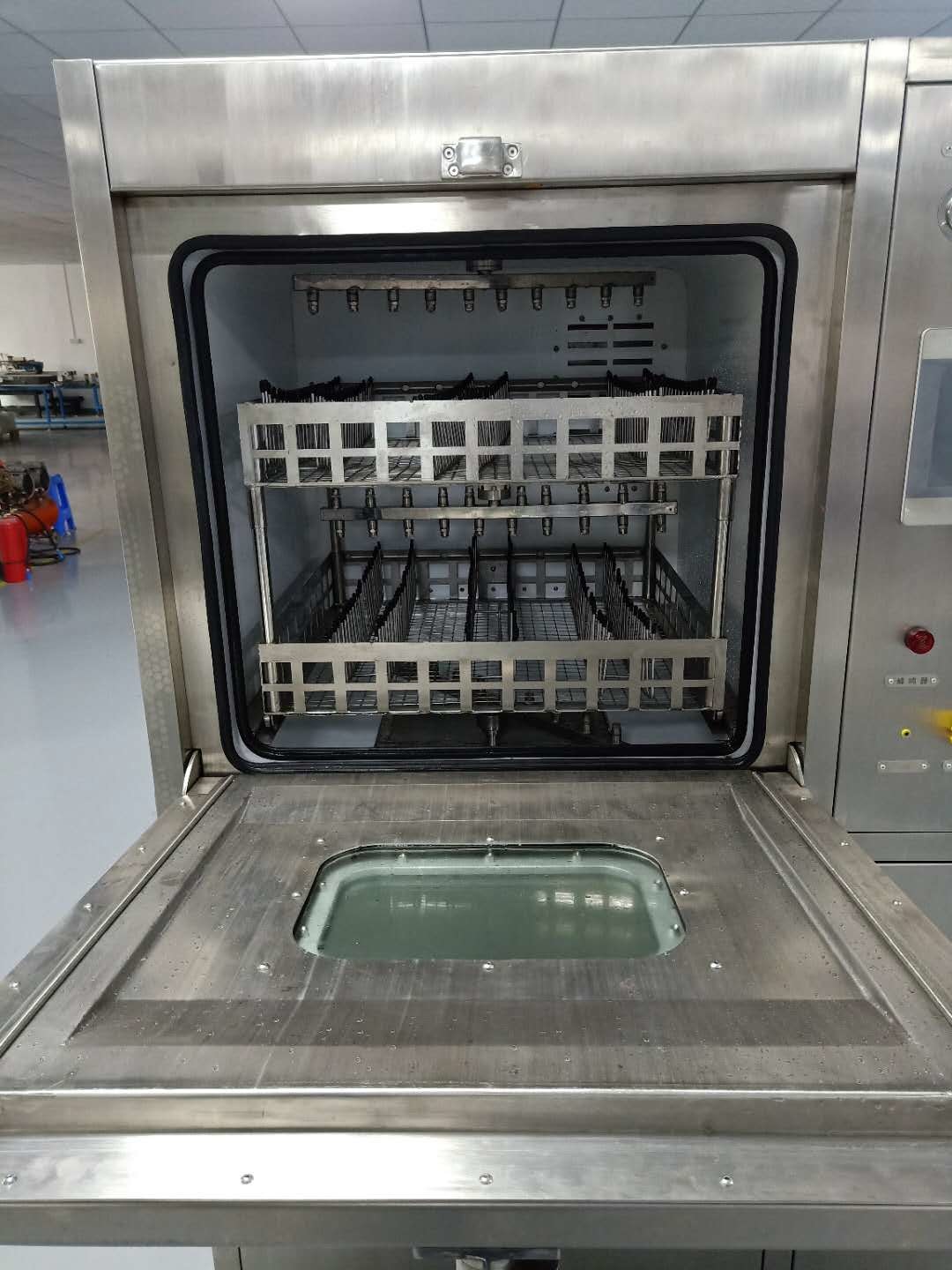

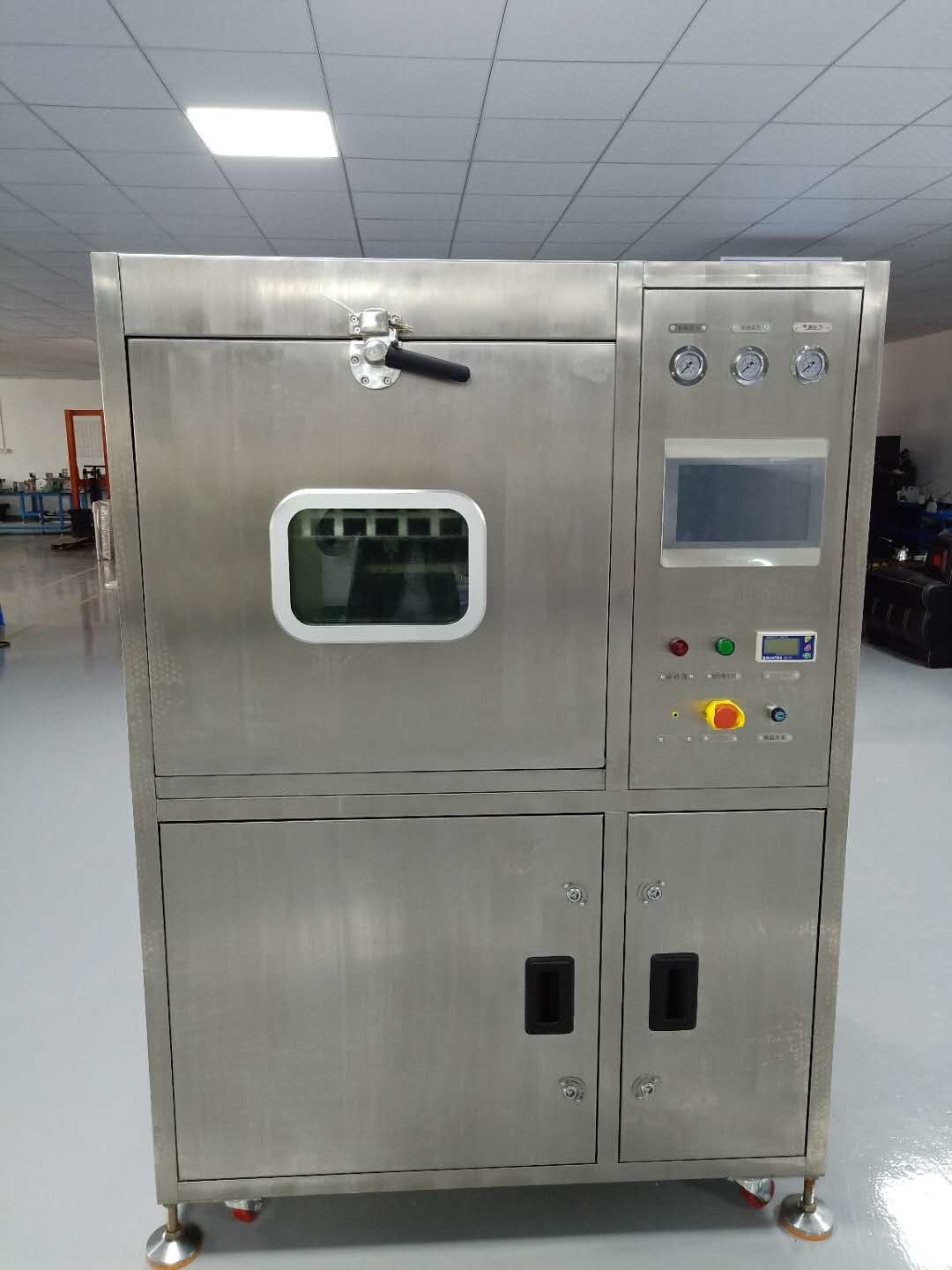

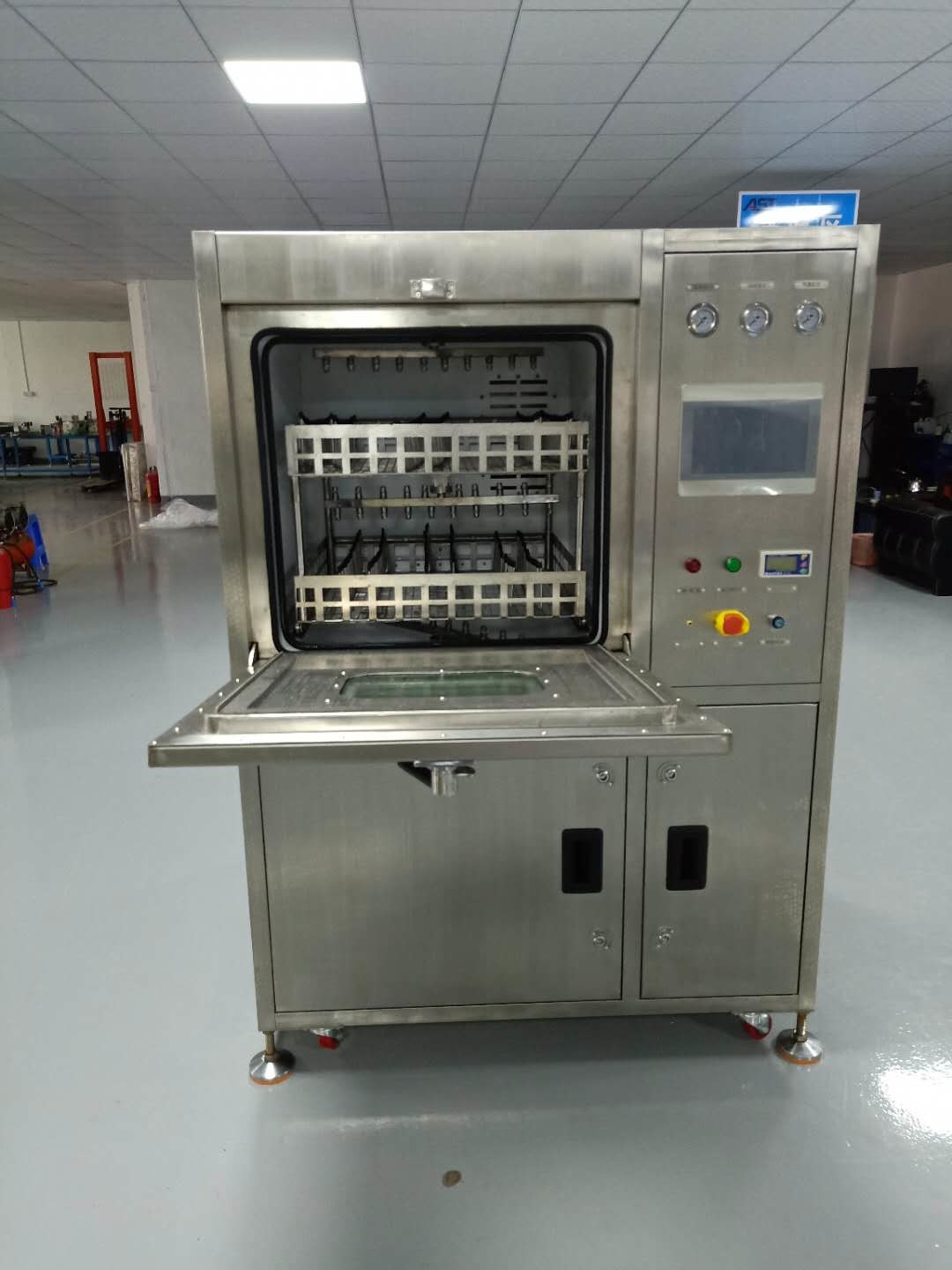

1. the whole process visible : the cleaning process can be visible through the front window and LED light.
2. automatic cleaning mode: clean, rinse, dry process can complete in one cabinet and compact machine.
3. the most scientific nozzle design: the use of left and right incremental distribution --- to enhance cleaning efficiency,The upper and lower dislocation distribution - completely solve the cleaning blind area;
4. the nozzle pressure adjustable design: to solve the small and light PCBA in the high pressure spray under the conditions of the collision, splash problem;
5. the standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;
6. a comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning;
7. convenient cleaning dilution to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical liquid (option);
8. Temporary tank and auxiliary heating system: Temporary tank is used to store dilution and DI water.
During cleaning process, the air pump absorb dilution form dilution tan and send to temporary tank ,then wash pump absorb dilution from temporary tank to clean PCBA. After cleaning process, the air pump absorb dilution from temporary tank and send them back to dilution tank.
During rinsing process, the air pump absorb DI water from DI water produce machine and send it to temporary tank, each time after rinsing ,DI water will be discharged form temporary tank. The rinse water can be heated as needed;
9. Lower operating costs: built-in filter makes the dilution repeated used. By using compressed air blow method at the end of cleaning process : blow the residual detergent off from pipeline and the pump , which effectively save 50% dilution.
10. The concentration lqiuid compensation function: the concentration of dilution will be getting lower and lower after repeated use which will affect the cleaning effect and cleaning efficiency of PCBA, at this time , need to add some concentrated liquid to dilution tank to compensate the dilution concentration. concentration compensation can improve the effective use of liquid, the concentration liquid adding amount can be adjustable according to the real situation.
Technical Parameters:
| Content | Parameter |
| Model No | HR-Q6 |
| Clean area size | L610*W560*H160mm 2layer |
| Concentration tank capacity | 30L |
| Dilution tank capacity | 70L |
| Spray tank capacity | 17-23L |
| Sprayer heater power | 6KW |
| Cleaning time | 0~ 99 minutes(adjustable) |
| Cleaning temperature(liquid) | Room temperature ~75℃ (adjustable) |
| Rinse time | 1 minute/time(1-59 times/adjustable) |
| Rinse temperature(DI water) | Room temperature~75 ℃(adjustable) |
| Drying time | 0~99 minutes/(adjustable) |
| Resistivity monitoring range | 0~18M |
| Solvent tank heater power | 9KW |
| Drying temperature | Room temperature~99 ℃/ (adjustable) |
| Drying heater power/KW | 6KW |
| Injection pressure | 30PSI- 90PSI (adjustable) |
| Chemical-grade filter |
0.22μm (filter particles:solder paste, rosin, flux and contaminants) |
| Di water filter | 1 inch fast junction type interface |
| Chemical discharge port | 1 inch fast junction type interface |
| Real-time pressure gauge | 3 PCS (nozzle/DI water/waste) |
| Horizontal spray pump | 5.5KW |
| Exhaust port size | Φ100(W)*30mm(H) |
| Power ;air source | AC380V 50HZ 65A/0.45MPa~0.75MPa |
| Net weight | 400kg |
| Dimension | L1400*W1350*H1830mm |
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents .
Q1: What is the cycle time of HR-Q6 batch cleaning machine?
A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.
Q2: What liuqid can be used in HR-Q6 to clean PCBA?
A2: Water-based PCBA cleaning liquid wash, DI water rinse.
Q3: Have many pcbas can HR-Q6 clean in one cycle?
A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.
Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?
A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.
Comparison pictures before clean and after clean:
