Features:

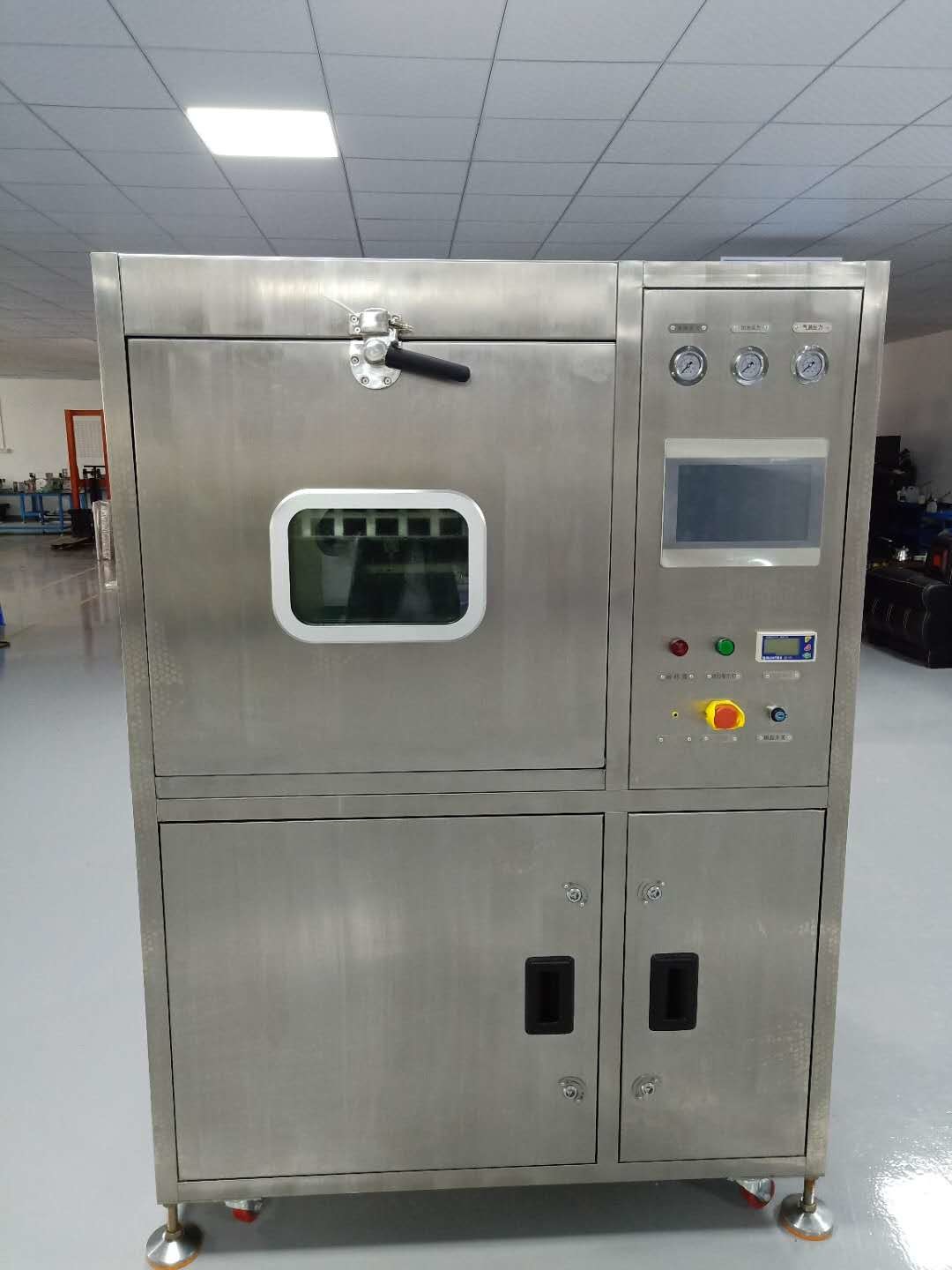

1.Visualization of the whole process: Cleaning room equipped with visual window and 2 LED lights, cleaning process be clear at a glance .

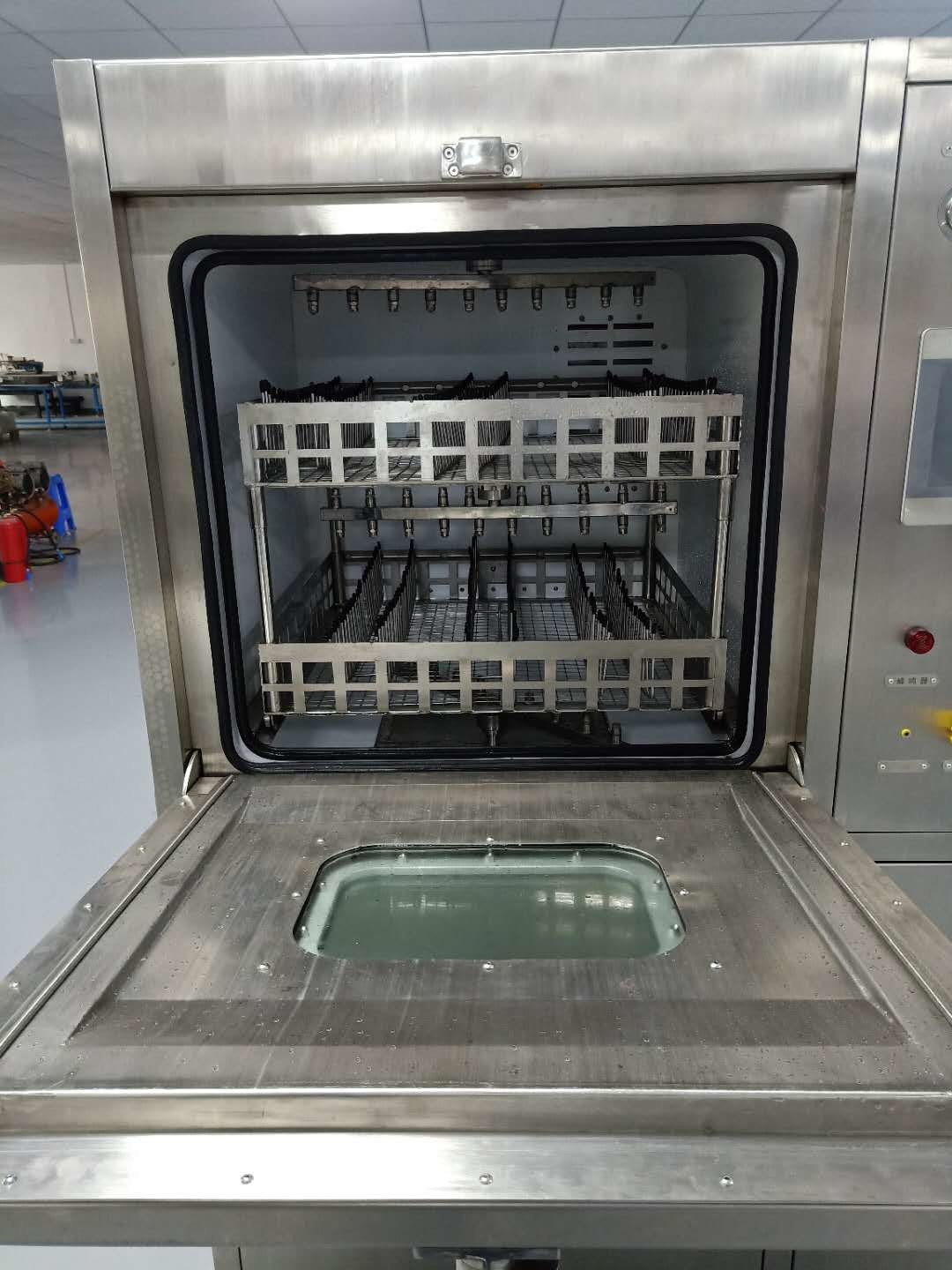

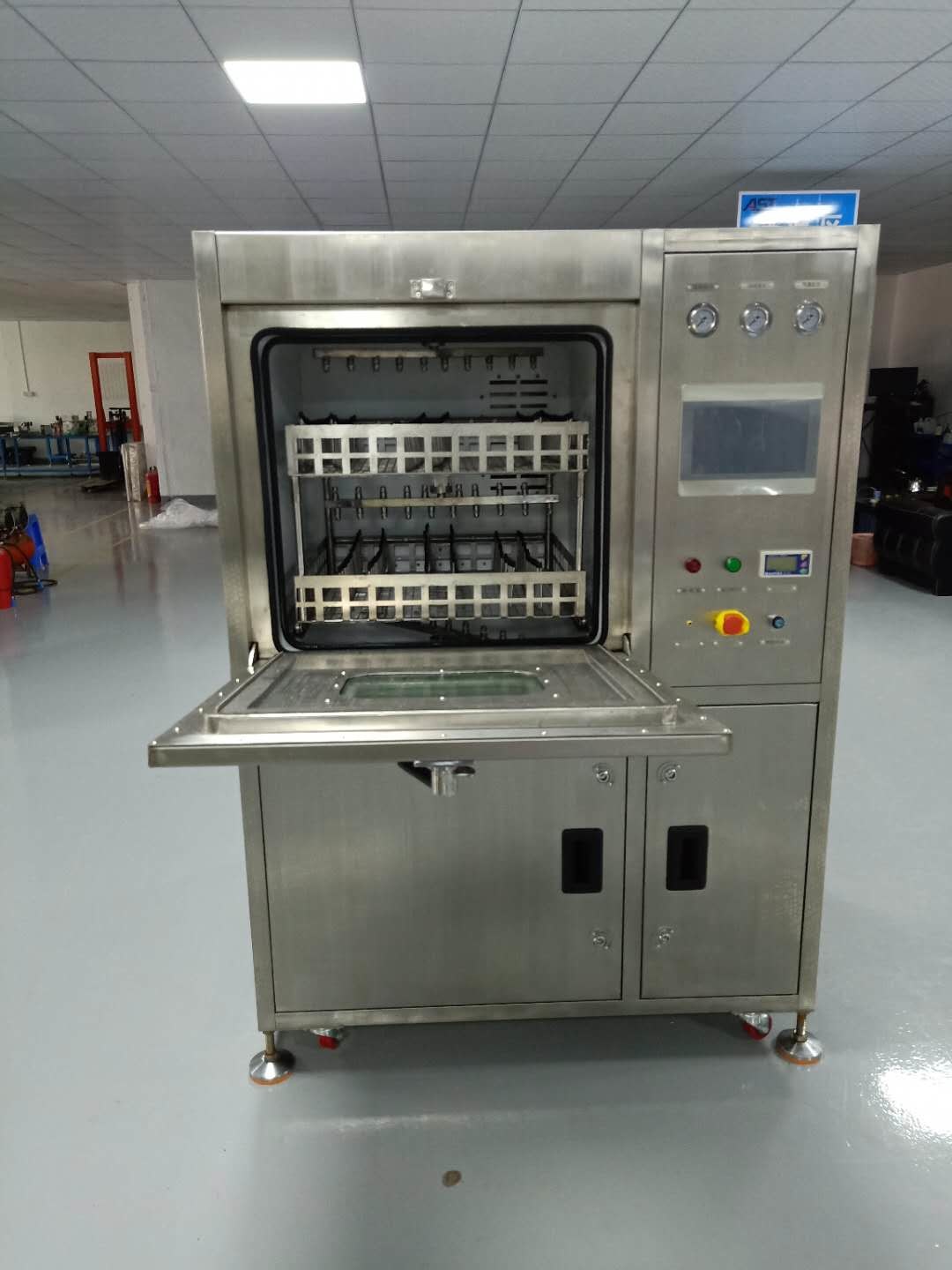

2.The world‘s largest cleaning baskets:610mm(L) ×560mm(W) × 100mm(H) 2 layer , Meet larger PCBA sizes and higher cleaning production.
3.The most scientific nozzle design(patent ):Increasing nozzles from left to right, Enhance the cleaning efficiency, Distribution nozzles up and down, Completely solve the blind clean area
4.Nozzle pressure adjustable design: Solve the small size of PCBA in the cleaning process by spray under high pressure collision, splash problem
With standard diluents slot heating system: Greatly promoted cleaning efficiency. Shorten cleaning time.
5.Touch screen interface: According to different PCBA model set with different process parameters, Quick edit and variety of different process parameters can be stored program, including, solvent temperature, cleaning time, rinse times/ time, rinse temperature, dry time, drying temperature, conductivity monitoring parameters, etc... According to different permissions, operator, can be set password management authority.
6.High standards of cleanliness: Ion pollution completely accords with the 610D IPC - Ⅰ class standard (less than 1.5 ug/cm2)
7.Convenient liquid add mode: Can manual to join, also can set according to proportion (5% ~ 25%) automatic proportioning DI water and chemical fluid.
8.Comprehensive cleaning system: according to the product surface residual organic matter, inorganic matter thoroughly effective cleaning
Automatic cleaning mode: in a clean indoor finish all cleaning, rinsing and drying process, small size, compact structure
Technical Parameters:
| content | Parameter |

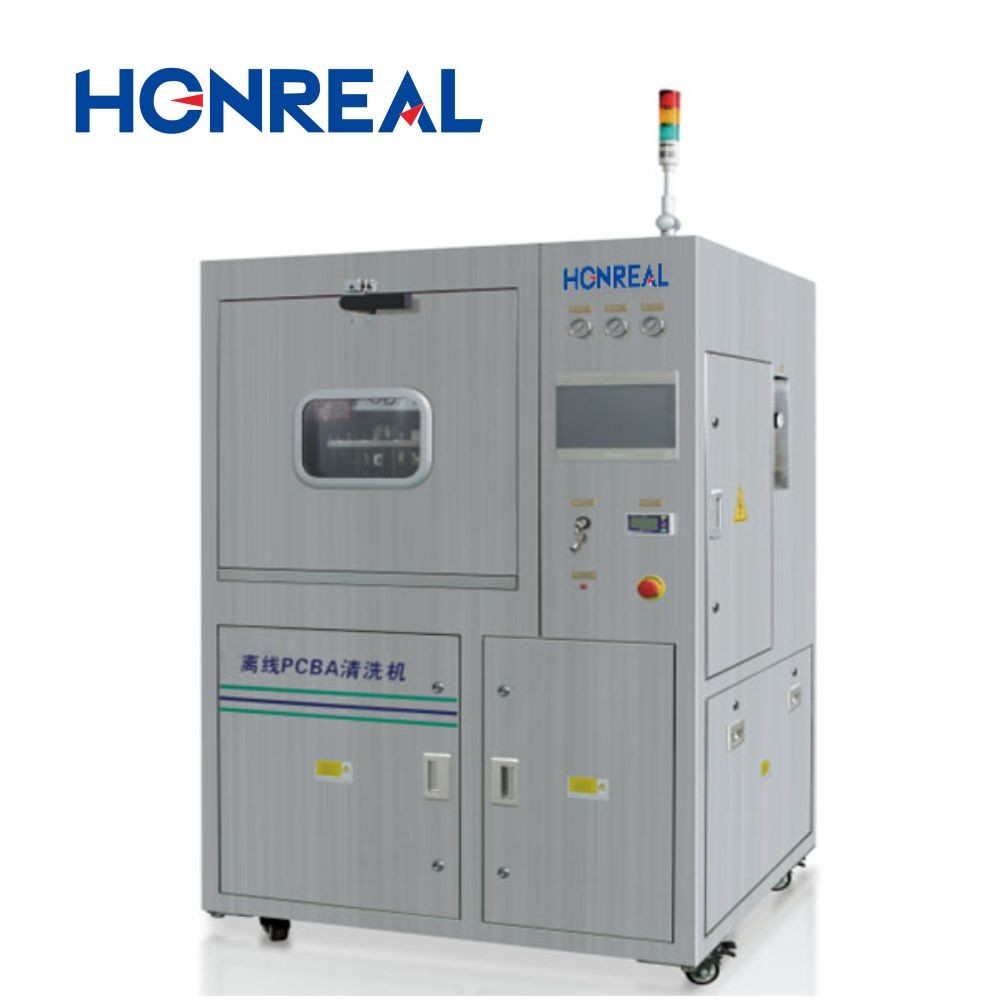

| Model No | HR-Q6 |
| Clean area size | L610*W560*H160mm 2layer |
| Concentration tank capacity | 30L |
| Dilution tank capacity | 70L |
| Spray tank capacity | 17-23L |
| Sprayer heater power | 6KW |
| Cleaning time | 0~ 99 minutes(adjustable) |
| Cleaning temperature(liquid) | Room temperature ~75℃ (adjustable) |
| Rinse time | 1 minute/time(1-59 times/adjustable) |
| Rinse temperature(DI water) | Room temperature~75 ℃(adjustable) |
| Drying time | 0~99 minutes/(adjustable) |
| Resistivity monitoring range | 0~18M |
| Solvent tank heater power | 9KW |
| Drying temperature | Room temperature~99 ℃/ (adjustable) |
| Drying heater power/KW | 6KW |
| Injection pressure | 30PSI- 90PSI (adjustable) |
| Chemical-grade filter |
0.22μm (filter particles:solder paste, rosin, flux and contaminants) |
| Di water filter | 1 inch fast junction type interface |
| Chemical discharge port | 1 inch fast junction type interface |
| Real-time pressure gauge | 3 PCS (nozzle/DI water/waste) |
| Horizontal spray pump | 5.5KW |
| Exhaust port size | Φ100(W)*30mm(H) |
| Power ;air source | AC380V 50HZ 65A/0.45MPa~0.75MPa |
| Net weight | 400kg |
| Dimension | L1400*W1350*H1830mm |
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents .
Q1: What is the cycle time of HR-Q6 batch cleaning machine?
A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.
Q2: What liuqid can be used in HR-Q6 to clean PCBA?
A2: Water-based PCBA cleaning liquid wash, DI water rinse.
Q3: Have many pcbas can HR-Q6 clean in one cycle?
A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.
Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?
A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.
Comparison pictures before clean and after clean:
