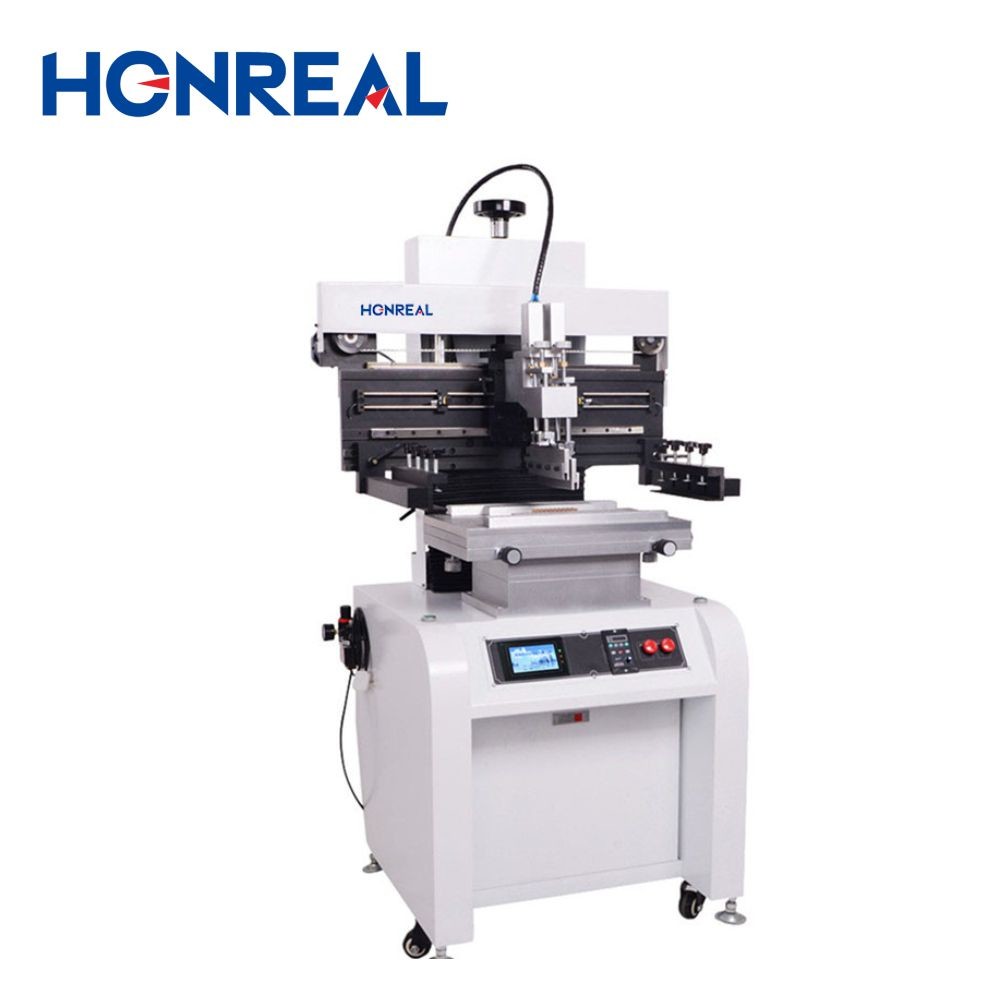

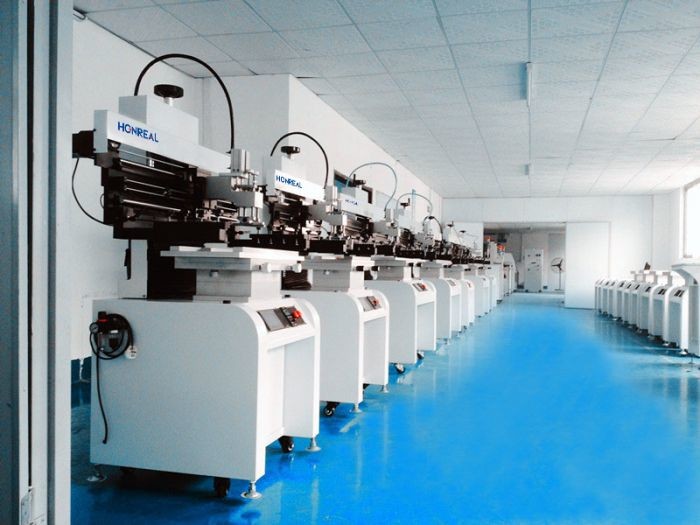

Semi Auto Printed Circuit Board Silk Screen Printing PCB Printer Machine
Product introduction:
1.Our equipment utilizes a precision guide rail and an imported motor to drive the blade seat conversion, resulting in precise and accurate printing.
2.The printing scraper is designed to rotate 45 degrees and can be fixed in place, making it convenient for stencil cleaning and replacement.
3. Scraper block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.

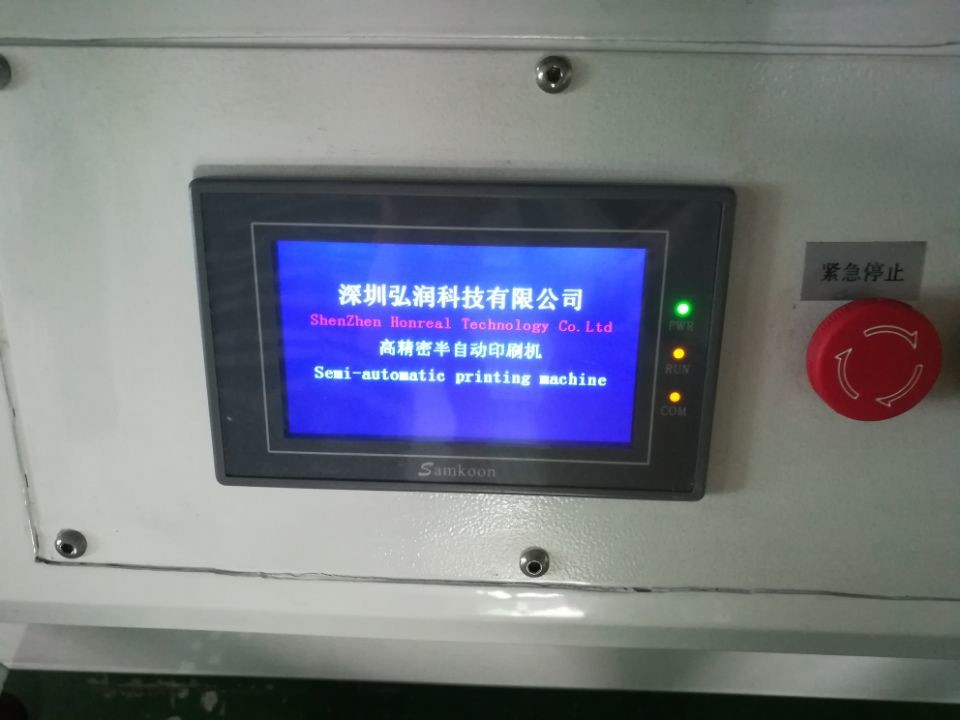

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
| Technical parameters | |
|
Function |
This unit is used to print solder paste onto PCB board |
| Printing table sizes | 300×400mm(or customized) |
| The frame size | 370×470mm,420×520mm,550×650mm |
| PCB size | 50x50~300×400mm |
| PCB thickness | 0.2 - 5.0mm |
| Printing position fixed | PCB Outer Or Pin Positioning |
| Bedplate fine-tuning | Front/Back±10mm R/L±10mm |
| Printing precision | ±0.02mm |
| Repetitive precision | ±0.05mm |
| Minimum spacing | 0.35mm |
| Air pressure | 4-6Kgf/Cm2 |
| Power supply | 220V 50/60Hz 100W |
| Specifications | ||||
|
Model No |
HR-1068 | HR-1068A | HR-1068B | HR-1068C |
| PCB size (L×W)~(L×W)mm | (50x50)~(300x400) | (50x50)~(300x600) | (50x50)~(300x1200) | (50x50)~(300x1500) |
| Steel mesh size (L×W)mm~(L×W)mm | (370x470~(550x650) | (370x470)~(550x850) | (370x470~(550x1450) | (370x470)~(550x1750) |
| Printing table sizes (L×W)mm | 300×400 | 300×650 | 300×1250 | 400×1550 |
| Machine size (L×W×H)mm | 860×760×1700 | 1060×760×1700 | 1660×760×1700 | 1960×760×1700 |
| Weight | 260kg | 300kg | 340kg | 380kg |
