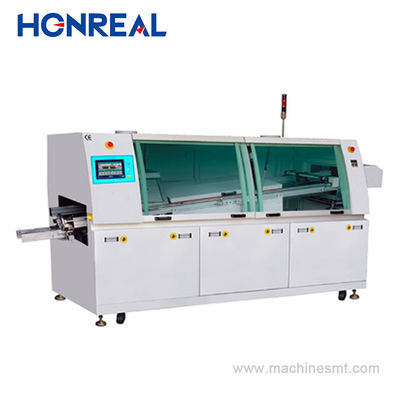

HR-350M Lead Free Wave Soldering Machine
● A new streamline design replaces a conventional right-angled exterior. And the design is based on mechanical aesthetics and practicability, making the maintenance an easy operate.
● PLC controller, PC and on-line UPS form a stable,safe and efficient controlling system.
● The software has the functions like PCB counting, temperature setting and editing, PCB parameter menu, and profile testing, alarms anmuti-languages conversion. In the meanwhile, the software has make a lots effect about the safety issues just like wave motor running safe temperature etc.
● The one-week timer will provide a amazing function for customer. The operator can edit his work schedule for this wave solder machine weekly. And the machine can turn on automatically to melt the solder before operator come to work. When it’s time to work, the solder has been melt and everything is ready. It will save about 1.5 hours for customer everyday.
● The specially designed guiding rail reduce the deformation caused by heat; After two years working you only need to change the cooper bars instead of change the whole conveyor rails.
● Sprayer droved by stepper motor , the speed can be set on PC. The moving and stopping time will be set in a more precious way.
● The sprayer is made in Japan; it provides perfect atomization performance of the flux.
● Adding flux automatically, there are two sensors on flux tank. When flux is lower than limit,it will switch on the pump to feed flux in automatically. Operator just need to put the whole barrel flux into the flux tank, meanwhile put the sucking tube into the barrel.
● Forced air convection preheat zone control by temperature controller in PID model. The preheat zone will provide enough uniform heat for the PCB.
● 2 individual bottom hot air zone and third upper hot air zone optional, this configuration will provide the greatest preheating effect for soldering.
● Adopt cast iron heater for the solder pot, it’s mounted outside of the solder pot. This new assembling way will prolong the life of the solder pot.
● Dual wave solder. Both wave heights are controlled by transducer. Changing the wave height via adjusting the frequency of power.
● Solder pot is made of 3mm thickness Ti material. Long life warranty.
● High quality B&M wave motor which made in Italian, small noise and more stable.
● Solder pot can lift up and down, move in and out automatically. It’s very easy for customer to change solder pot and conversion between leaded and lead-free.
| HR-350M Specifications | |
| Model | HR-350M |
| PCB width | 50-400mm (Optional:450mm) |
| Solder pot capacity | 390kg |
| Running power/general power | 7.5KW/22KW |
| Machine dimension | 3440(L)*1370(W)*1650(H) |
| Net weight | 750KG |
| Controlling system | PC + PLC |
| Conveyor motor | 1Ph 220V , 60W |
| Conveyor speed | 200MM-1500MM/Min |
| Flux Volume | 6.5 liters |
| Alcohol capacity | 4.5 liters |
| Conveyor direction | Left to right |
| Spray method | Stepper motor drive |
| Sprayer | St-6 made in Japan |
| Preheating zone | 1 upper preheating zones 2 individual bottom preheating zones |
| Preheating power | 4kw/zone |
| Solder pot material | Ti |
| Solder pot heater | Cast iron |
| Heater power | 1.2KW*10PCS |
| Wave number | dual waves |
| Wave type | Turbulent first wave |
| Melting time | 60 minutes |
| Solder pot lift up&down | Manual |
| Solder pot in&out | Manual |
| Finger cleaning pump | 1PH 220V 10W |
| Finger type | Dual hook Or L finger |
| Finger material | Ti |
| Solder angle | 5-7° |
| Air supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |
