Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating

MOQ: 1set
Price: USD 6500-8500 Per Set
Standard Packaging: Woodencase
Delivery Period: 5-10 Work Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100sets/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONREAL
Model Number
HR-SD100
Machine Type:
Automatic Solder Dross Separating Machine
Ixing Capacity Of Bottom Tin:
10KG
Mixing Heating Power:
1.6KW
Temperature Scope:
0-350℃
Mixing Motor:
1φ 220V 90W
Mixing Bowl:
316 Grade Stainless
Highlight:

Automatic Solder Dross Recovery Machine

,

Ash Separating Solder Dross Recovery Machine

Product Description

High Separation Rate Tin Slag Recovery Equipment Tin Dross Solder Dross Smelting Ash Separating Machine





1.Characteristic:

1.Highly effective recycling of the solder waste, up to 90% yield .

2.No need to add any chemicals or reducers to the process uses physical separation to ensure a good quality product.

3.Button controls, digital temperature control sheet, accurate temperature control.

4.All-stainless steel tank, clean convenience.

5.316 grade stainless mixing bowl with an 10kg capacity with heating power for complete mixing.

6.Dross automatic feeding system, automatic feed screw.

7.Electronic liquid level alarm, manually put tin.

8.Automatic separation of tin and tin ash, into the tin and tin-ash collection device.

9.Small size, light weight, move convenience.

10.Independent smoke filtration system (Optional).



2.Technical parameters

Item (Parameter)
Mixing motor 1φ 220V 90W
Mixing Heating Power 1.6KW
Mixing Capacity of Bottom Tin 10KG
Temperature Scope 0-350℃
Heating-up time 50MIN
Feeding time Continuous3-4kg/15min

Dimension

Electrical box size

L500*W250*H650

L140*W330*H390
Totol Power Consumption 1.8KW
Normal running power 0.4KW
Power 1φ220V 50Hz
Net Weight Appro*45kg

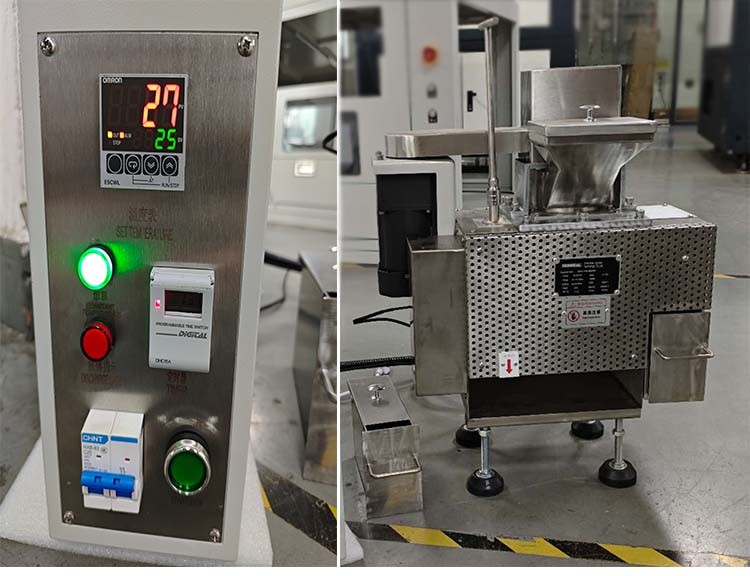

Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating 0

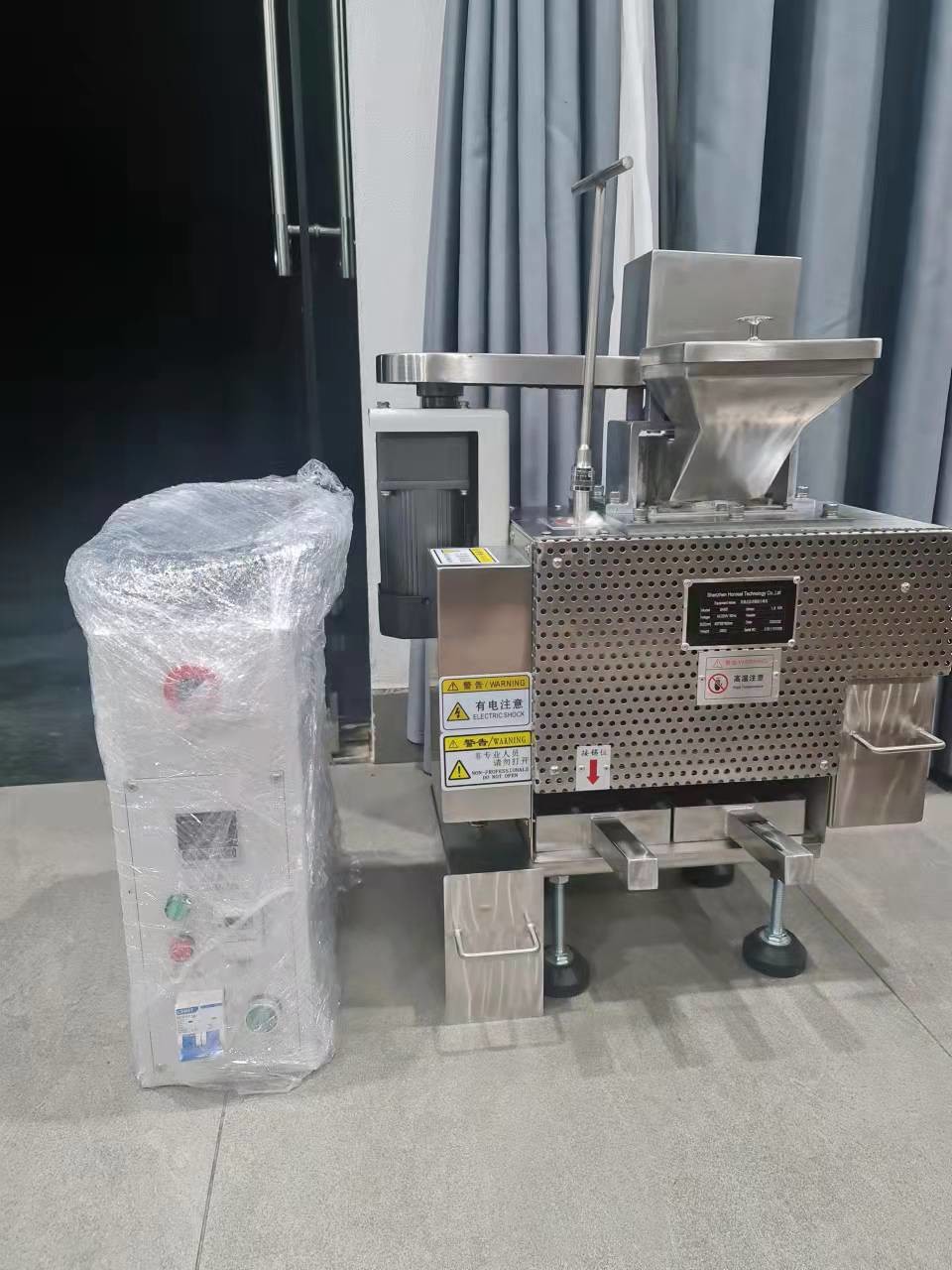

Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating 1

After separation

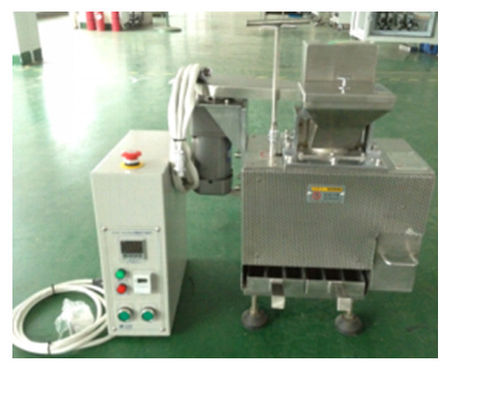

Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating 2

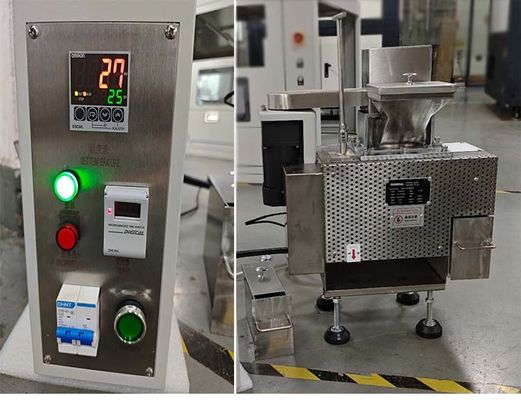

Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating 3



Our Service

1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.



Packaging & Shipping


Automatic Solder Dross Recovery Machine For Tin Slag Smelting Ash Separating 4
