| Technical parameters | |
|
Function |

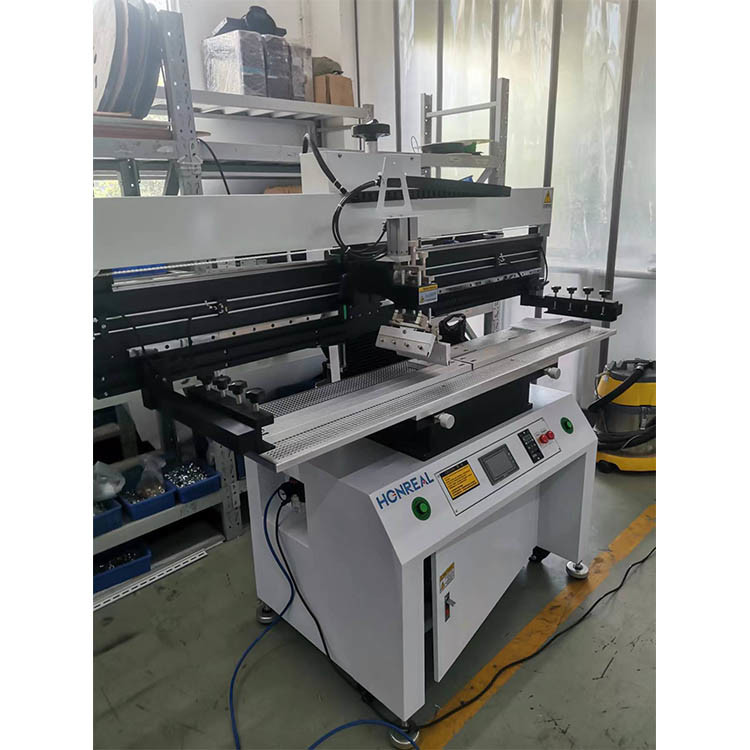

This unit is used to print solder paste onto PCB board |
| Printing table sizes | 300×400mm(or customized) |
| The frame size | 370×470mm,420×520mm,550×650mm |
| PCB size | 50x50~300×400mm |
| PCB thickness | 0.2 - 5.0mm |
| Printing position fixed | PCB Outer Or Pin Positioning |
| Bedplate fine-tuning | Front/Back±10mm R/L±10mm |
| Printing precision | ±0.02mm |
| Repetitive precision | ±0.05mm |
| Minimum spacing | 0.35mm |
| Air pressure | 4-6Kgf/Cm2 |
| Power supply | 220V 50/60Hz 100W |
| Specifications | ||||
|
Model No |
HR-1068 | HR-1068A | HR-1068B | HR-1068C |
| PCB size (L×W)~(L×W)mm | (50x50)~(300x400) | (50x50)~(300x600) | (50x50)~(300x1200) | (50x50)~(300x1500) |
| Steel mesh size (L×W)mm~(L×W)mm | (370x470~(550x650) | (370x470)~(550x850) | (370x470~(550x1450) | (370x470)~(550x1750) |
| Printing table sizes (L×W)mm | 300×400 | 300×650 | 300×1250 | 400×1550 |
| Machine size (L×W×H)mm | 860×760×1700 | 1060×760×1700 | 1660×760×1700 | 1960×760×1700 |
| Weight | 260kg | 300kg | 340kg | 380kg |
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
FAQ:
Q: How do you guarantee the quality of your sales?
A: We ensure the quality of our products through rigorous testing before delivery. Every set of machines undergoes thorough testing to ensure excellent performance and reliability.
Q: How is the training process?
A: After purchasing our machines, your engineers can visit our company for training. Alternatively, we provide comprehensive training materials, including training videos and user manuals, which make it easy to learn and operate the machines. The user manual will be provided along with the machine.
Q: Can I have my logo on the product?
A: Yes, we offer customized logo services free of charge. Please let us know your requirements, and we will ensure your logo is incorporated onto the product.
Q: Are the machines difficult to use?
A: No, the machines are designed to be user-friendly. Previous clients have found that it takes a maximum of two days to learn how to operate the machines effectively.
