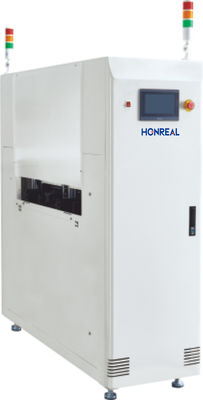

PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity

1set
MOQ
Negotiable
Price
PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
MAX PCB’s Capacity: 20 PCS
PCB Loading Time: Approx 20 Seconds
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX30L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)
Machine Size (L×W×H)mm: 500×920×1650
Highlight:

Fast PCB Handling Equipment Conveyor

,

Smt PCB Handling Equipment Conveyor
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-BF350
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
Fast Delivery PCB Handling Equipment Conveyor FIFO LIFO Buffer For Smt Assembly Production Line
Product Specifications
Attribute Value
MAX PCB's capacity 20 PCS
PCB loading time Approx 20 seconds
Transport direction Left to right/right to left(optional)
Transport height 900±20mm(or customized)
Air pressure 4-6 bar, MAX30L/minute
Power supply 100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm (50x50)～(350x250)
Machine size (L×W×H)mm 500×920×1650
Product Description

This vertical buffer is designed to have the function as FIFO/LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.

Key Features
  • PLC program control
  • Servo motor system to improve the working efficiency
  • Selectable pitch settings
  • Tower-light display for machines working status
  • Built-in Rack structure
  • Enclosed CE construction to improve the safety level
  • Conveyor & rack adjustment by motorized
  • Separately driven buffer conveyors
  • 0 PCBs storage capacity
  • User-friendly touch screen panel
  • SMEMA compatible
  • Threshold signal to protect the PCBs in the upstream oven
Technical Parameters

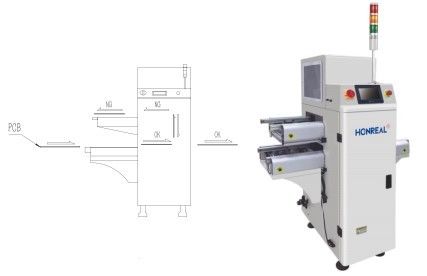

Function This device can buffer the NG and OK boards from AOI or SPI inspection machines
PCB thickness Min 0.6mm
PCB loading time 20pcs
Cycling time Approx 20 seconds
Transport direction Left to right/right to left(optional)
Transport height 900±20mm(or customized)
Air pressure 4-6 bar, MAX30L/minute
Power supply 100-230V AC(customized) single phase, MAX 250V/A
Model Specifications
Model No HR-BF350 HR-BF460
PCB size (L*W)~(L*W)mm (50x50)~(450x350) (50x50)~(550x460)
Machine size (L*W*H)mm 1310*540*1200 1310×640×1200
Weight 100kg 120kg
PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity 0
About Our Company

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise specializing in SMT equipment research and development, production, and sales. We service the world's top 500 electronic companies with a registered capital of 5 million.

With an experienced technical team and excellent technical innovation ability, we focus on creating a better product supply chain and service team to meet different customer needs. Our long-term goal is to understand customers, put them first, and provide valuable services.

PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity 1
Our Services and Commitments

Before purchase, we conduct comprehensive analysis of customer requirements to recommend the most suitable products. Customers will receive complete information about product performance characteristics.

During production, we strictly follow contract terms to ensure products are delivered intact and on time according to customer requirements.

Company Commitments:
  • Prompt response to all quality feedback
  • Installation, commissioning, and training according to contract requirements
  • Long-term technical support
  • Timely supply of consumables and spare parts
Certifications
PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity 2
Packing
PCB Buffer Conveyor FIFO LIFO for SMT Assembly Line 20 PCB Capacity 3
