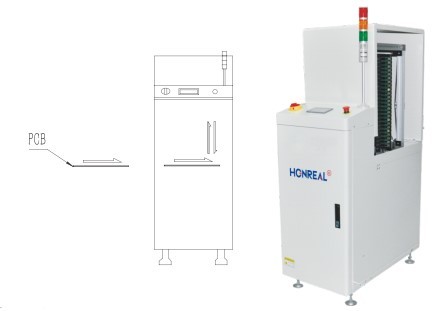

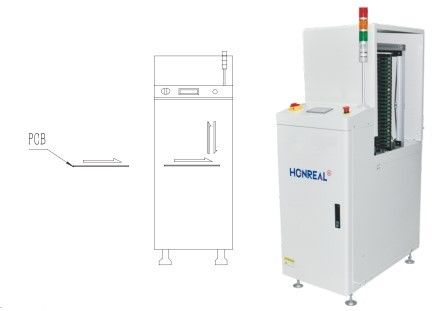

Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling

1set
MOQ
Negotiable
Price
Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling
Features Gallery Product Description Request A Quote
Features
Specifications
MAX PCB’s Capacity: 20 PCS
PCB Loading Time: Approx 20 Seconds
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX30L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 500×920×1650mm
Highlight:

Automatic PCB Turn Conveyor

,

PCB Turn Conveyor Multi Function
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-BF350
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
Automatic PCB Conveyor Multi Function Vertical Type Buffer For PCB Handling
Product Specifications
Attribute Value
MAX PCB's capacity 20 PCS
PCB loading time Approx 20 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX30L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm (50x50)～(350x250)mm
Machine size (L×W×H)mm 500×920×1650mm
Product Description

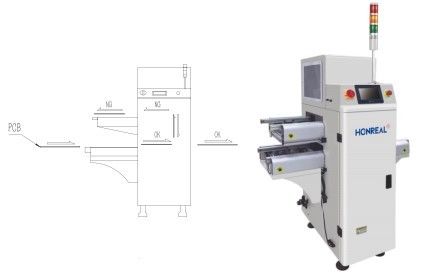

Automatic Multi-Function Vertical Type NG Board Buffer Stocker Conveyor Machine For PCB Handling
Key Features:
  • Buffers NG and OK boards from AOI or SPI inspection machines with separate flow paths
  • PLC control system ensures stable and reliable operation
  • User-friendly LED touch screen control interface
  • Multiple operation modes: FIFO (first in first out), LIFO (last in first out), and pass through function
  • Fast, smooth, and accurate retrieval positioning
  • Memory function controls PCB input/output sequence
  • Smooth parallel width adjustment via leadscrew mechanism
  • Full closed design ensures operational safety
  • Compact footprint saves valuable floor space
  • SMEMA port compatibility for seamless integration
Technical Parameters
Function Buffers NG and OK boards from inspection machines
PCB thickness Min 0.6mm
PCB loading time 20pcs
Cycling time Approx 20 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX30L/minute
Power supply 100-230V AC (customized) single phase, MAX 250V/A
Model Specifications
Model No HR-BF350 HR-BF460
PCB size (L*W)~(L*W)mm (50x50)~(450x350) (50x50)~(550x460)
Machine size (L*W*H)mm 1310*540*1200 1310×640×1200
Weight 100kg 120kg
Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling 0
Client Cases
Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling 1
Services and Commitments

We provide comprehensive pre-sales consultation to recommend the most suitable products based on your actual requirements, ensuring you understand all performance characteristics before purchase.

Our production and delivery processes strictly adhere to contract terms, guaranteeing products arrive intact and on schedule.

Our Company Promises:
  • Prompt response to all quality feedback and inquiries
  • Professional installation, commissioning, and technical training
  • Long-term technical support and maintenance services
  • Timely supply of consumables and spare parts
Certification
Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling 2
Packing
Automatic Vertical PCB Buffer Conveyor for AOI SPI Handling 3
