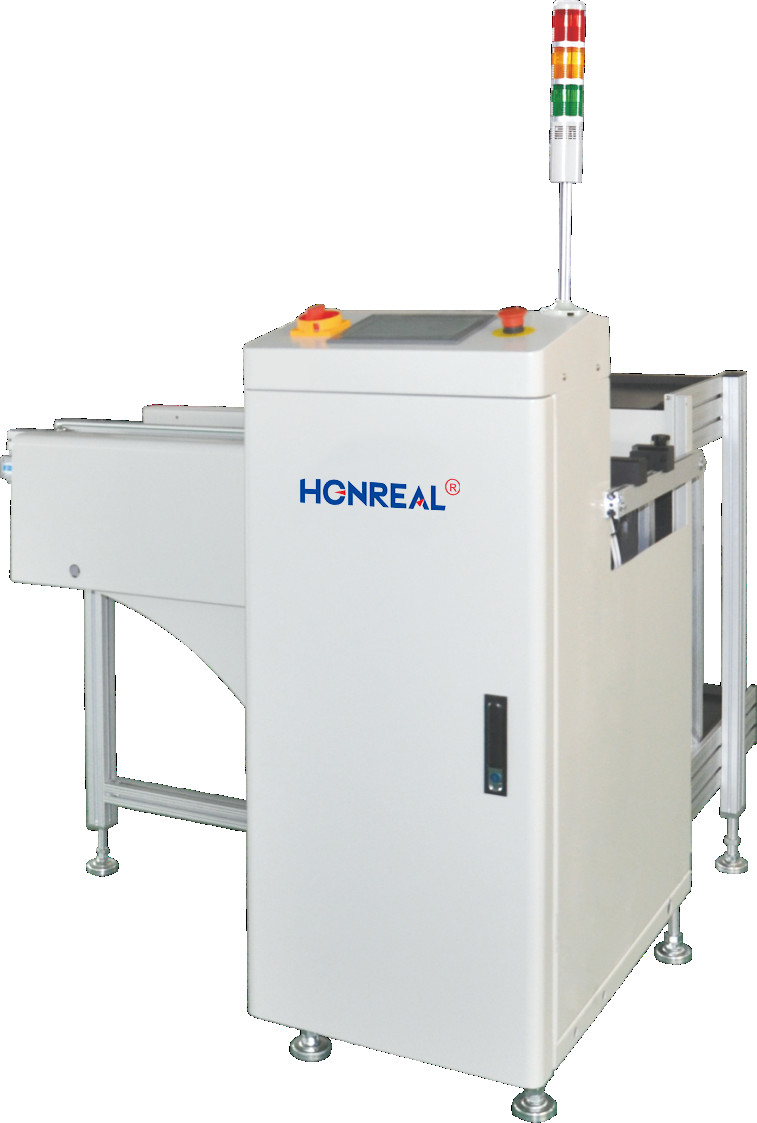

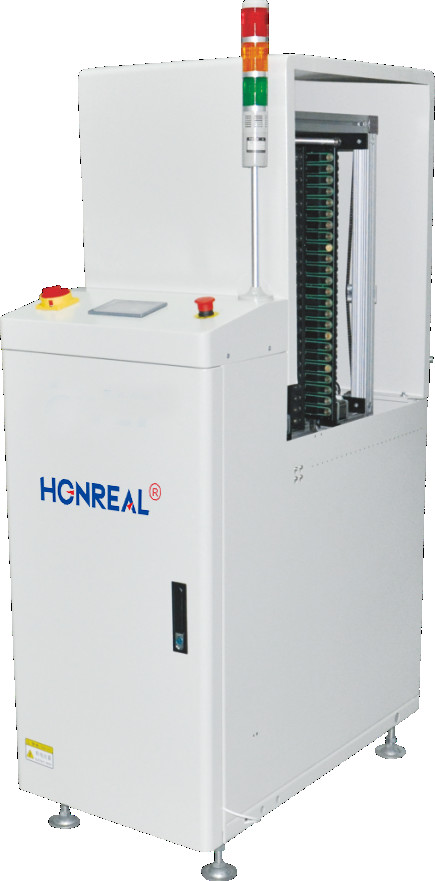

Automatic Multi Function PCB Single Magazine Buffer Conveyor Machine For Smt Production Line
Product introduction:

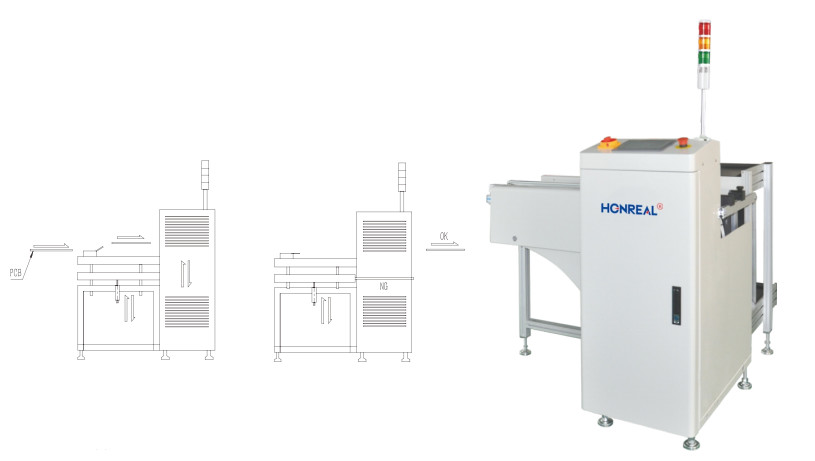

1.This buffer can be used as a high capacity mid-line loader/unloader, as a LIFO/FIFO buffer or as a reject buffer.
2.PLC control system,Working is stably and reliably;
3.Easy to operate LED touch screen control interface;
4.FIFO(first in first out),LIFO(last in first out)and pass through function optiona;
5.Fast,smooth,accurate retrieval positioning;
6.Memory function,control the order of pcb’s pass in and out;
7.Smooth and parallel width adjustment(leadscrew);
8.Full closed design ensures safety level of operation.
9.Smaller footprint.
10.SMEMA port is compatible;
| Technical parameters | |
| Function | This buffer can be used as a high capacity mid-line loader/unloader, as a LIFO/FIFO buffer or as a reject buffer. |
| PCB thickness | Min0.6mm |
| MAX PCB’s capacity | 50pcs(0.6mm thickness PCB) |
| Cycling time | Approx 20 seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 250V/A |
| Specifications | ||||
| Model No | HR-250BT | HR-330BT | HR-390BT | HR-460BT |
| PCB size (L*W)~(L*W)mm | (50x50)~(350x250) | (50x50)~(455x330) | 50x50)~(530x390) | 50x50)~(530x460) |
| Machine size (L*W*H)mm | 1180*1150*1200 | 1320×1260×1200 | 1550×1380×1200 | 1600x1450x1200 |
| Weight | 180kg | 220kg | 260kg | 300kg |
FAQ:
Q: How do you guarantee the quality of your sales?
A: We ensure the quality of our products through rigorous testing before delivery. Every set of machines undergoes thorough testing to ensure excellent performance and reliability.
Q: How is the training process?
A: After purchasing our machines, your engineers can visit our company for training. Alternatively, we provide comprehensive training materials, including training videos and user manuals, which make it easy to learn and operate the machines. The user manual will be provided along with the machine.
Q: Can I have my logo on the product?
A: Yes, we offer customized logo services free of charge. Please let us know your requirements, and we will ensure your logo is incorporated onto the product.
Q: Are the machines difficult to use?
A: No, the machines are designed to be user-friendly. Previous clients have found that it takes a maximum of two days to learn how to operate the machines effectively.
