Full Automatic PCB Stencil Printer A5 737x737mm SMT

1
MOQ
USD 25000-28000 Per Set
Price
Full Automatic PCB Stencil Printer A5 737x737mm SMT
Features Gallery Product Description Request A Quote
Features
Specifications
Max Size: 737X737mm
PCB Max Size: 510X340mm(530X340mm)
Transport Height: 900±40mm
Squeegee Speed: 6~200mm/sec
Printing Accuracy: ±0.02mm
Control Method: PC Control
Highlight:

Full Automatic PCB Stencil Printer

,

Intelligent Automatic Solder Paste Printer
Basic Infomation
Place of Origin: China
Brand Name: Right
Model Number: A5
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 20 Days
Payment Terms: T/T
Supply Ability: 100 Sets Per Month
Product Description
Full Automatic PCB Stencil Printer A5 for SMT 737X737mm
Product Specifications
Attribute Value
Max Size 737X737mm
PCB Max Size 510X340mm(530X340mm)
Transport Height 900±40mm
Squeegee Speed 6~200mm/sec
Printing Accuracy ±0.02mm
Control Method PC Control
Product Overview

The Full Automatic PCB Stencil Printer A5 is a high-precision stencil printing machine designed for SMT applications, featuring advanced automation and intelligent printing capabilities.

Key Features
  • Humanized design with wide application range and strong versatility
  • Unique spray-type automatic cleaning system
  • Energy-saving wipe paper-saving structure
  • Advanced image processing system
  • Intelligent printing production mode
  • International standard UVW three-axis linkage platform
  • Multiple optional functions including automatic tin adding and stencil plugging detection

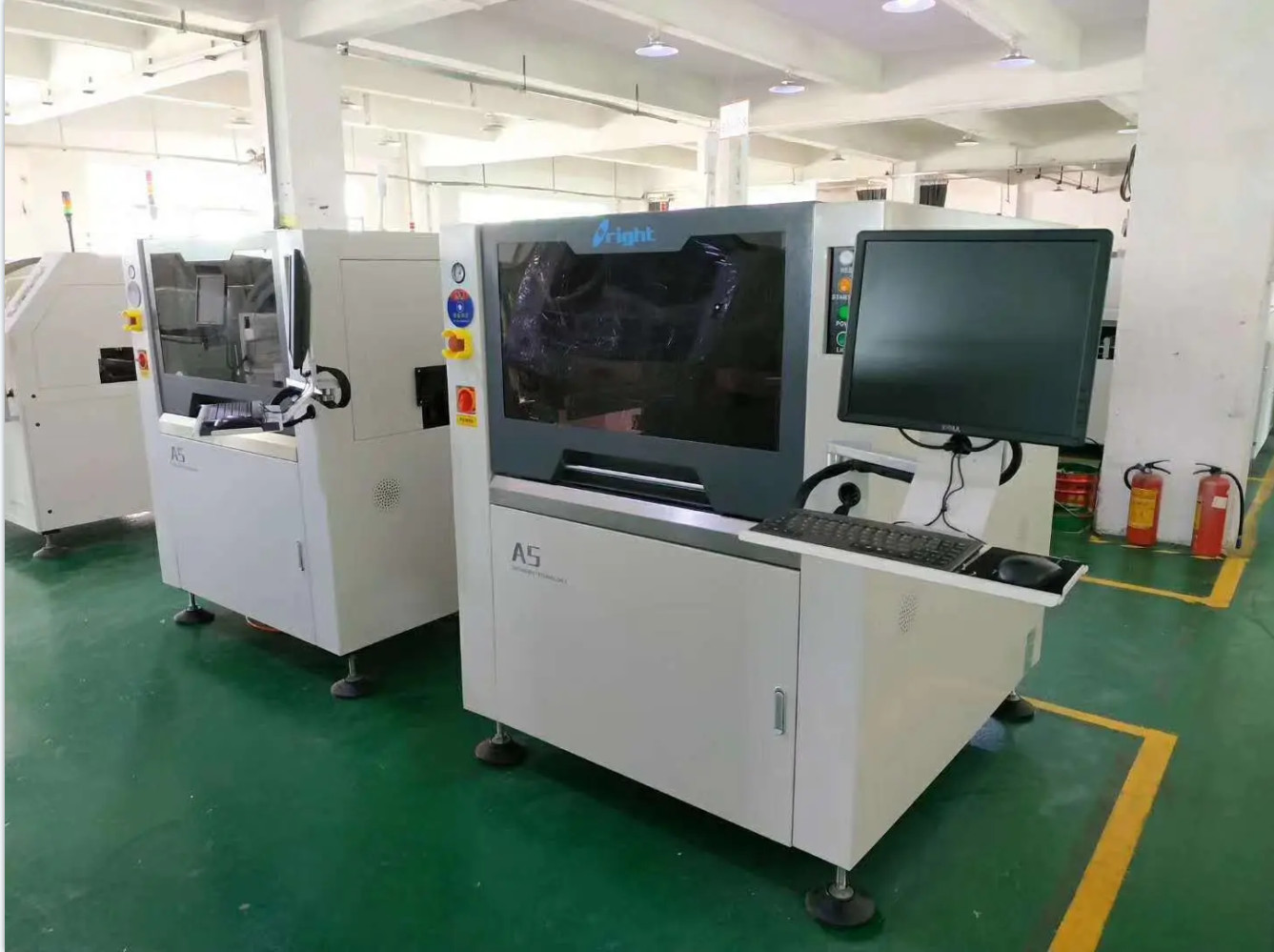

Full Automatic PCB Stencil Printer A5 737x737mm SMT 0
Technical Parameters
Parameter Specification
Model A5
Screen Frames 370*370mm~737*737mm
Thickness 25~40mm
PCB size (min~max) 50*50~400*340mm
PCB thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Speed Max 1500mm/s (Programmable)
Print head Two independent motorized printheads
Squeegee speed 6~200mm/sec
Squeegee Angle 60°/55°/45°
Repeat Position Accuracy ±0.025mm
Cycle Time <7s (Excluding Printing & Cleaning)
Machine Dimensions 1220*1355*1500mm
Machine Weight Approx 1000kgs
Global Service Support

We provide comprehensive SMT factory solutions including:

  1. Complete SMT solutions tailored to your needs
  2. Core technology with our equipment
  3. Professional technical service
  4. Expertise in SMT factory setup
  5. Solutions for all SMT-related questions
Company & Packaging

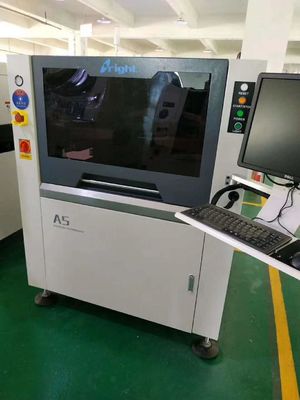

Full Automatic PCB Stencil Printer A5 737x737mm SMT 1 Full Automatic PCB Stencil Printer A5 737x737mm SMT 2
