Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin
  • name
  • name
  • name

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin

MOQ: 5 PCS
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 1-3 workIing days
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honeal
Name:
PCB Positioning Pin
Application:
For Semi-Automatic Solder Paste Printer
Total Length:
11 Mm
Diameter:
4mm
Pin Size:
1.0 1.5 2.0 2.5 3.0 3.5
Material:
Imported Stainless Steel
Highlight:

Solder Paste Equipment Positioning Pin

,

PCB Positioning Pin

Product Description

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin



SMT printing machine accessories positioning pin size:1.0 1.5 2.0 2.5 3.0 3.5 .The diameter is 4MM and the height is 8MM. The thin part is 1.0-3.5MM. The height is 3MM. The total height is 11MM.Made of imported stainless steel, durable.



Copper thimble size, total length: 30mm, diameter: 4mm (middle step diameter: 8mm), length of long end part including step: 20mm (step thickness: 2mm),It is made of brass. It is processed by Taiwan precision automatic lathe with good machining accuracy and smooth surface. The dimensional error is less than 0.02mm. It is suitable for PCB positioning and bending prevention of semi-automatic solder paste printing machine, and the top surface is more standard.

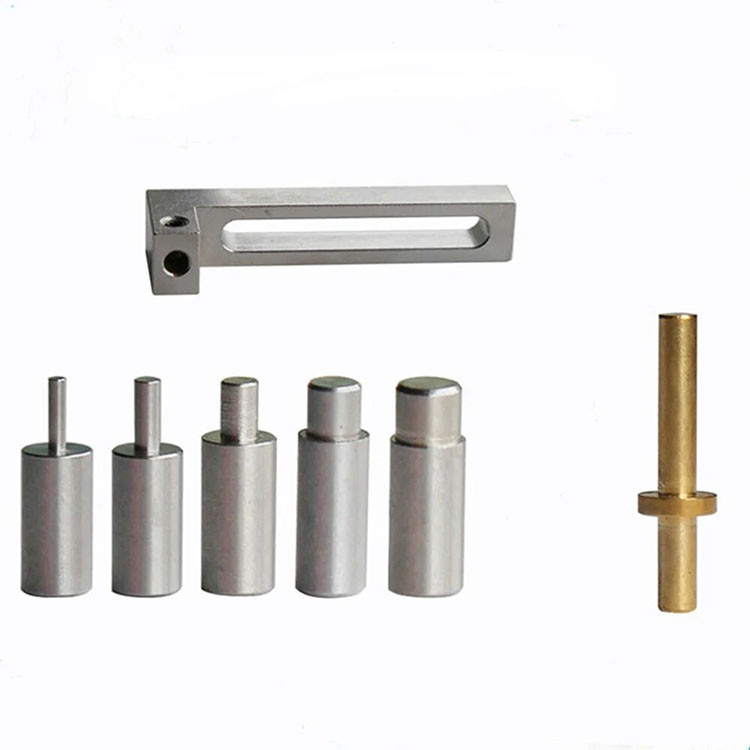

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin 0

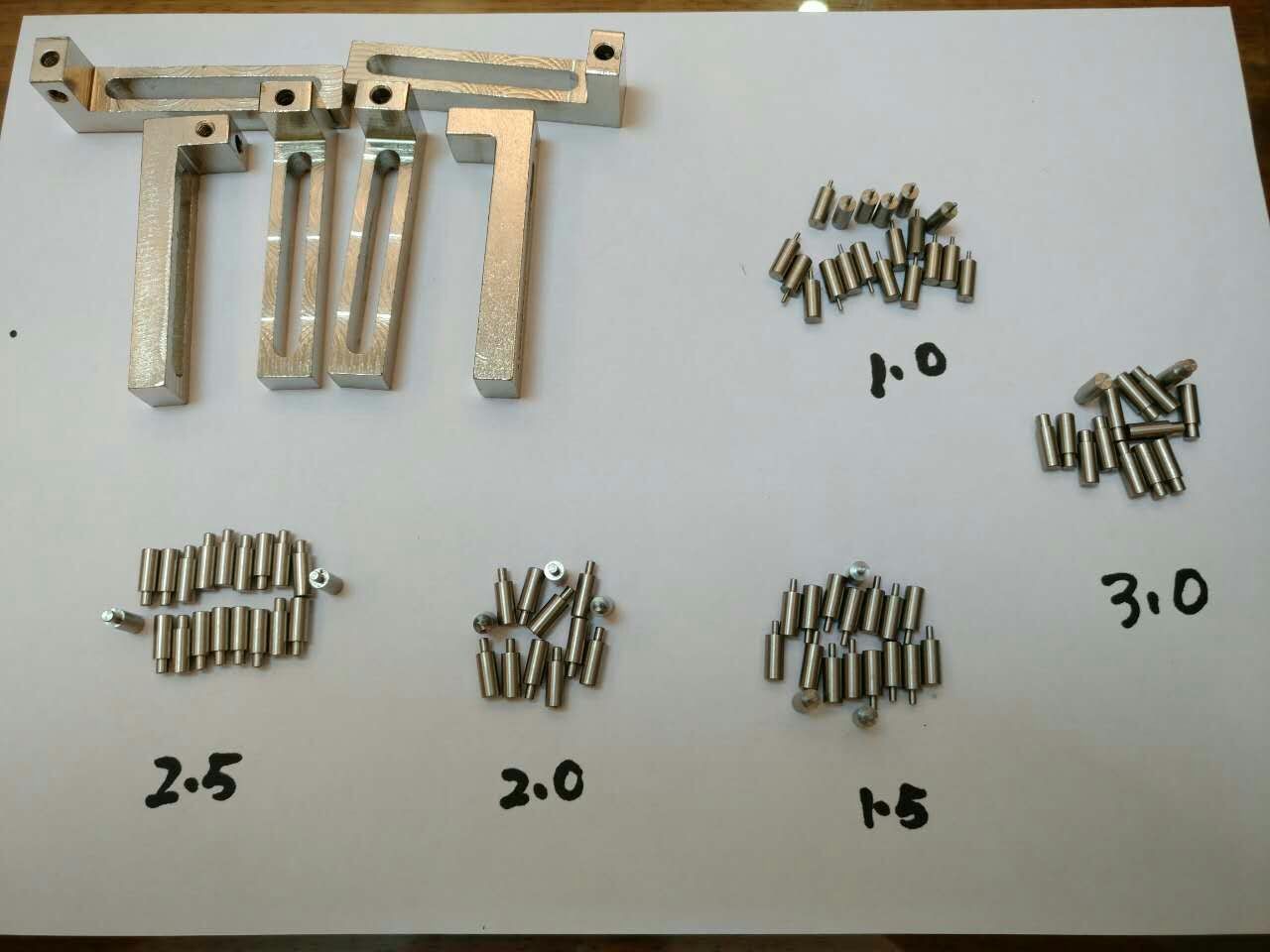

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin 1

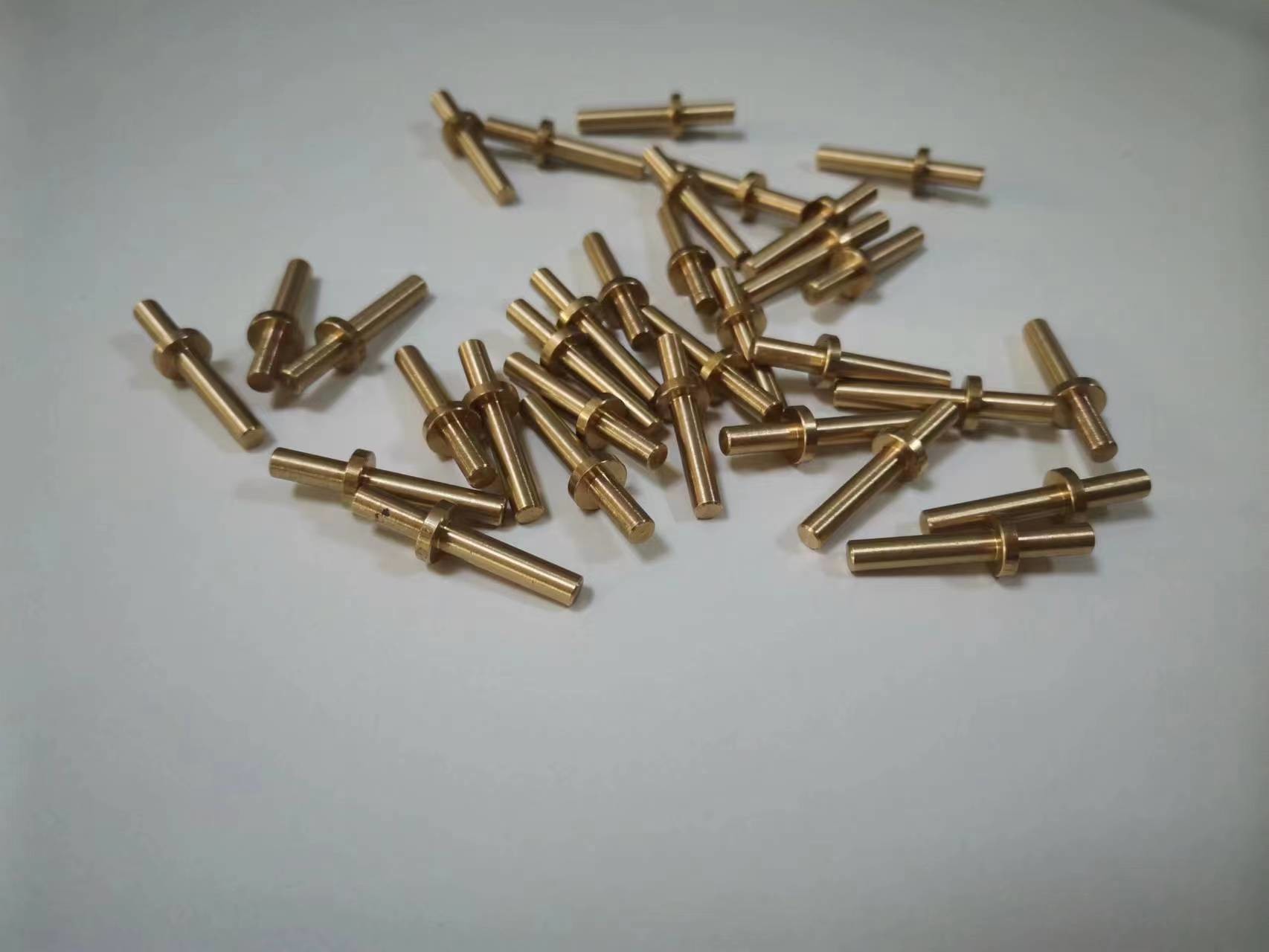

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin 2
