Stainless Steel L Type Holder And Support Pin For Semi-Automatic Solder Paste Printer
  • name
  • name
  • name

Stainless Steel L Type Holder And Support Pin For Semi-Automatic Solder Paste Printer

MOQ: 5 PCS
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 1-3 workIing days
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honeal
Name:
L-type Holder
Application:
For Semi-Automatic Solder Paste Printer
Total Length:
65/70 Mm
Wide:
12mm
High:
20mm
Material:
Stainless Steel
Highlight:

SS L Type Holder And Support Pin

,

L Type Holder And Support Pin

Product Description

Semi Automatic SMT Solder Paste Equipment Accessories PCB Positioning Pin

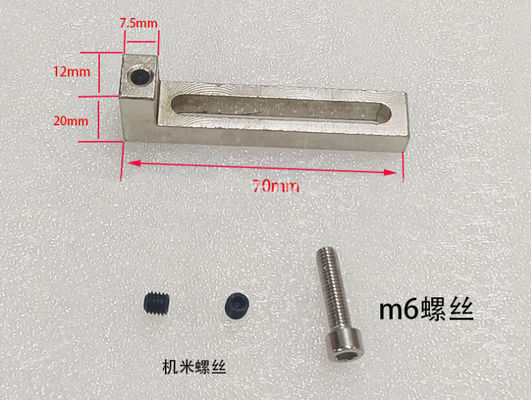

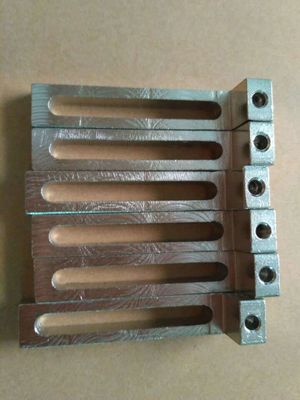

The L-type positioning seat is made of stainless steel with high precision, suitable hole size and no sliding wire. The surface is nickel plated, hard and bright in color. The positioning seat is 65/70mm long, 12mm wide and 20mm high. All positioning seats are equipped with two Jimi screws and one positioning screw before delivery. It is common for semi-automatic solder paste printing machines.

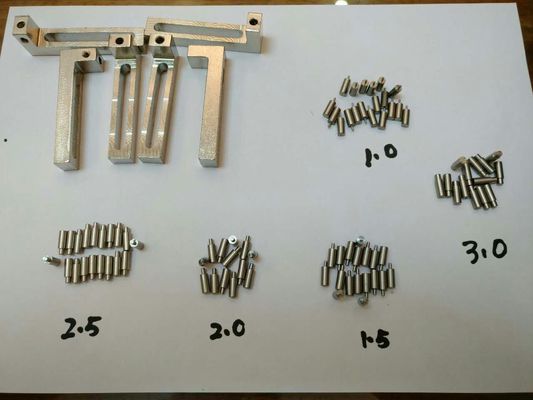

SMT printing machine accessories positioning pin size:1.0 1.5 2.0 2.5 3.0 3.5 .The diameter is 4MM and the height is 8MM. The thin part is 1.0-3.5MM. The height is 3MM. The total height is 11MM.Made of imported stainless steel, durable.



Copper thimble size, total length: 30mm, diameter: 4mm (middle step diameter: 8mm), length of long end part including step: 20mm (step thickness: 2mm),It is made of brass. It is processed by Taiwan precision automatic lathe with good machining accuracy and smooth surface. The dimensional error is less than 0.02mm. It is suitable for PCB positioning and bending prevention of semi-automatic solder paste printing machine, and the top surface is more standard.



Stainless Steel L Type Holder And Support Pin For Semi-Automatic Solder Paste Printer 0



Stainless Steel L Type Holder And Support Pin For Semi-Automatic Solder Paste Printer 1

Stainless Steel L Type Holder And Support Pin For Semi-Automatic Solder Paste Printer 2



Tags:

Intelligent SMT Stencil Printer,

Semi Automatic SMT Stencil Printer,

Touch Screen SMT Stencil Printer
