Advantageous:
1.Offline model machine, in same XYZ motion table combine selective fluxing and soldering, compact & full function.
2.High soldering quality.
3.PCB board movement, spray and welding platform fixed.
4.Can be placed next to SMT production line for soldering, very flexible.
5.Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.

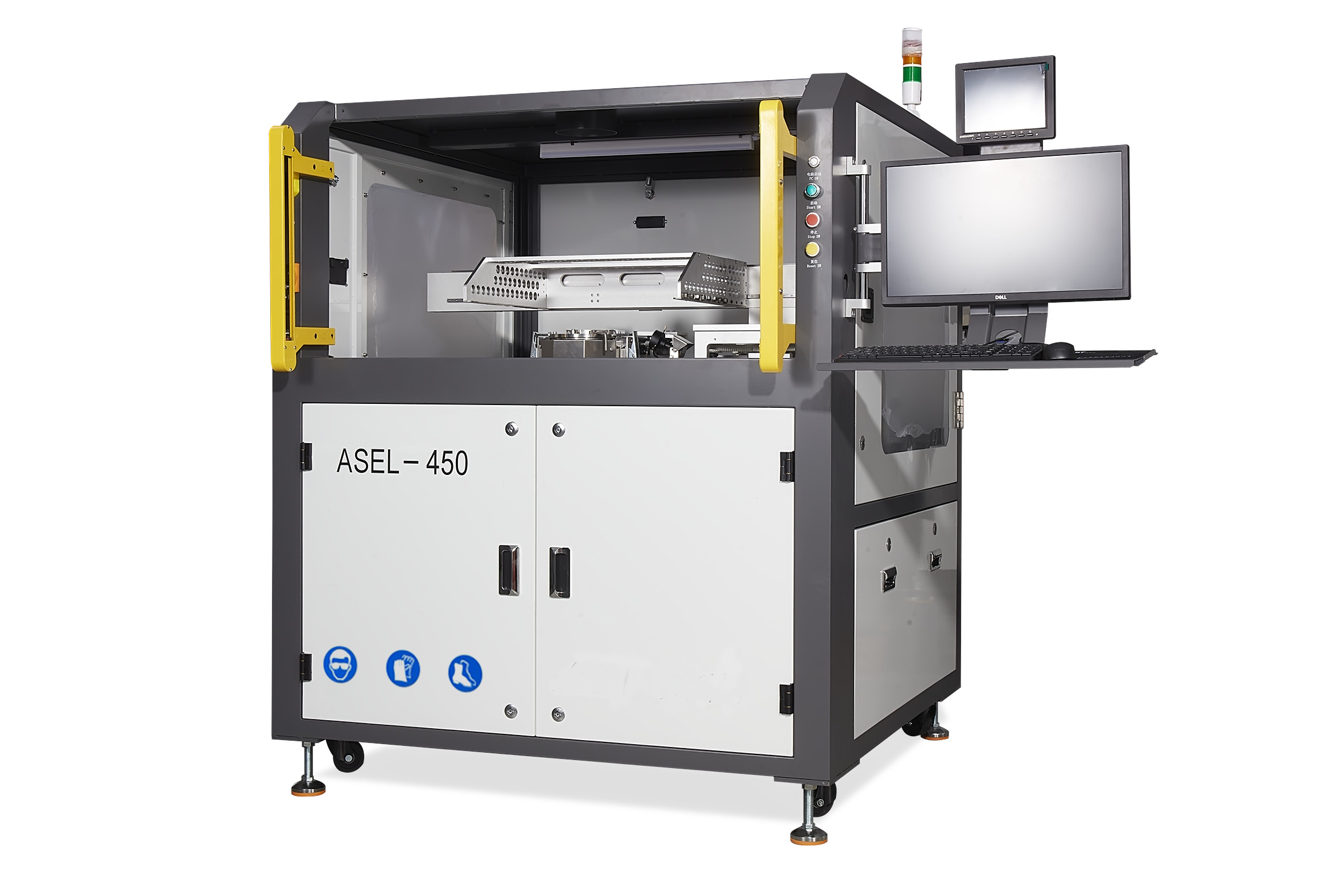

| Item | ASEL-450 |
| General | |
| Operating power/Max power | 1--3KW/5KW |
| PCB size | 50x50---350x450mm |
| Machine dimension | 1090*1256*1340mm |
| Net weight | 320KG |
| Power supply | 1PH 220V 50HZ |
| Air supply | 3-5 bars |
| Exhausting required | 100M3/h |
| PCB Robotic Platform | |
| Axes of Motion | X, Y, Z |
| Motion Control | Full servo |
| Position Accuracy | + / - 0.05mm |
| PCB upper clearance | 80mm |
| PCB bottom clearance | 30mm |
| PCB positioning | Self test pressure |
| Solder Management | |
| Standard Solder Stations | 1pcs |
| Solder Pot Capacity | 15 kgs |
| Solder Temperature Control | PID |
| Heat-Up Time | 45 Minutes |
| Max Temperature | 380 C |
| Solder Pot heater | 3kw |
| Solder Nozzles | |
| MiniWave Nozzles | Dia 2 to 8mm |
| Customized nozzle | Can provide |
| Nitrogen (N2) Inertion Management | |
| N2 Heater | standard equipped |
| N2 Temp PID Control Range | 0 - 350 C |
| N2 Consumption per Nozzle | 1.5m3/H/NOZZLE |
| Required N2 Purity | Oxygen | O2 < 20 PPM |
| Flux Management | |
| Spray Flux Nozzle | Mini spray fluxer, atomization type |
| Flux Capacity | 1.2L |
| Flux Tank | Pressure tank |
| Controlling System | |
| Program method | PC computer control |
| Controlling system | PC computer control |
| Typical Program Time | 10 Minutes |
