The Solder Pot Capacity of this Small Offline Selective Wave Solder is 15 Kgs/PCS, ensuring that it can handle large volumes of soldering. Its Max Carrier Size of L400 X W400MM makes it versatile and can accommodate various sizes of components. Its compact size and offline capability make it ideal for small and medium-sized manufacturing units.
With this SMT Selective Wave Soldering Machine, you can expect high-quality and consistent results. Its advanced features ensure that it can handle complex soldering tasks with ease. Its precision-controlled wave ensures that the soldering is accurate, and the automatic fluxing system ensures that the flux application is uniform.
This Small Offline Selective Wave Solder is easy to maintain and operate, reducing the chance of downtime during production. Its user-friendly interface and intuitive controls make it easy to use, and its robust build ensures that it can handle the harsh environment of a manufacturing unit.
Overall, the SMT Wave Soldering Machine is an excellent investment for any manufacturing unit that requires efficient and precise soldering. Its compact size, offline capability, and advanced features make it an ideal choice for small and medium-sized manufacturing units. Get your hands on this Mini Selective Wave Soldering Machine today and take your soldering process to the next level!
| Machine name | SELPOT-400 | |
| General | ||
| dimension | L1520mm X W1650mm X H1650mm | |
| general power | 18kw | |
| consumption power | 5-7kw | |
| power supply | Three-phase 380V 50HZ | |
| net weight | 1200KG | |
| reuiqred air source | 0.4-0.6MPa | |
| required air flow | 8-12L/min | |
| required N2 pressure | 0.4-0.6MPa | |
| required N2 flow | more than 2cubic meter per hour | |
| required N2 purity | >99.998% | |
| required exhausting | 500--800CMB/H | |
| carrier or PCB | ||
| carrier | according product | |
| max carrier size | L400 x W400 mm | |
| PCB thickness | 0.2mm-----6mm | |
| pcb edge | 5mm or more | |
| controlling & conveyor | ||
| controlling | Industrial PC | |
| conveyor width | 100-400MM | |
| conveyor type | SUS roller | |
| conveyor thick | 2---6mm (edge thickness or carrier thickness) | |
| PCB conveyor direction | Left to right | |
| PCB conveyor up clearance | 100MM | |
| PCB conveyor bottom clearance | 30MM | |
| conveyor load | <10kg | |
| conveyor rail | Aluminum rail | |
| conveyor height | 900+/-30mm | |
| Motion table | ||
| motion axis | X, Y, Z | |
| motion control | Closed-loop servo control | |
| motion motor | Panasonic servo motor | |
| ball screw | Hiwin | |
| position accuracy | + / - 0.05 mm | |
| chassis | metal welding | |
| Flux management | ||
| flux nozzle | Japan Lumina | |
| nozzle durability | stainless steel | |
| flux tank capacity | 3L | |
| flux tank | pressure tank | |
| alcohol tank capacity | 1L | |
| alcohol tank | pressure tank | |
| Preheat | ||
| preheat method | upper IR heating | |
| heater’s power | 13.5kw | |
| temperature range | 25--240℃ | |
| solder pot | ||
| standard pot number | 1pcs | |
| solder pot capacity | 13 kgs / solder pot (Electromagnetic pump) | |
| solder temperature Control | PID | |
| melting time | 20--30 Minutes | |
| max solder temperature | 350 ℃ | |
| solder heater | 1.2kw | |

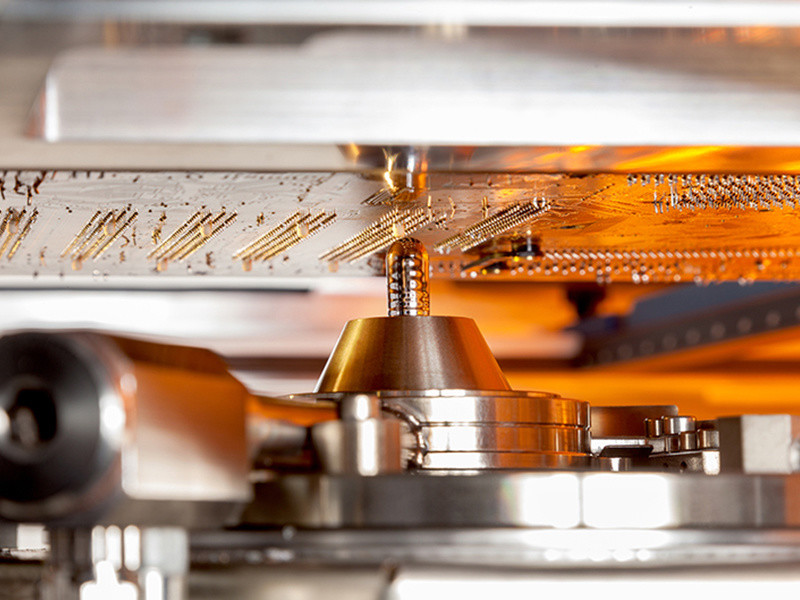

| solder nozzle | ||
| nozzle | customized | |
| material | high carbon alloy | |
| standard equipped nozzle | sdandard equipped 5pcs/ solder pot(the inside diameter of nozzle 2.5mm, 3mm, 4mm, 5mm,6mm ) | |
| N2 management | ||
| N2 heater | standard equipped | |
| ID N2 temp range | 0- 350 C | |
| N2 consumption | 2 m³ /h / nozzle | |

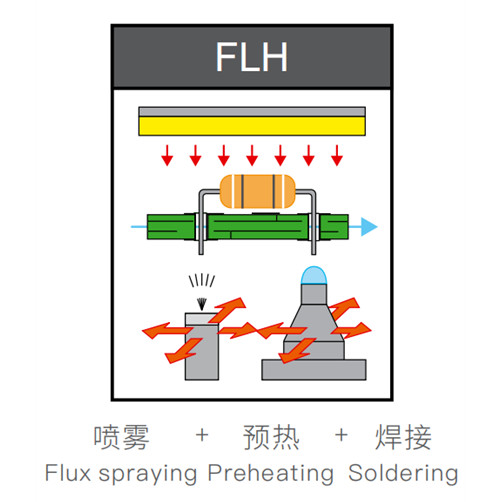

Features:
1.motion system
2. fluxing system
3. Preheat
The SMT Selective Wave Soldering Machine product offers extensive technical support and services to ensure optimal performance and maintenance of the machine. Our team of experts provides installation, training, and ongoing technical support to assist with any issues or questions that may arise. Additionally, we offer preventative maintenance services to keep the machine running smoothly and minimize downtime. Our team can also provide repairs and replacement parts as needed to maintain the optimal performance of the machine. Overall, our technical support and services aim to maximize the efficiency and lifespan of the SMT Wave Soldering Machine for our customers.
Product Packaging:
The SMT Wave Soldering Machine will be packaged securely to ensure safe delivery. It will be wrapped in protective materials such as bubble wrap and placed in a sturdy cardboard box. The box will be labeled with the product name, model number, and any other relevant information.
Shipping:
Shipping will be done via a reputable courier service to ensure timely and safe delivery of the product. The shipping cost will be calculated based on the destination and weight of the product. The delivery time will depend on the shipping method chosen and the destination.
