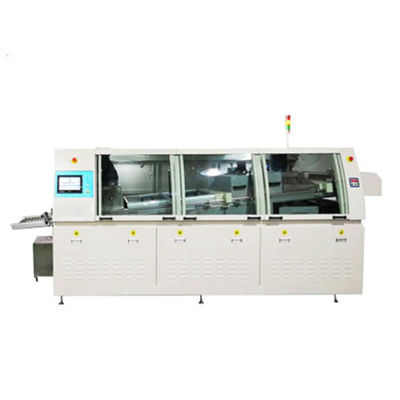

Dual Wave Automatic Wave Soldering Machine with Adjustable Conveyor Speed 0-1800mm/min

• Streamline design based on mechanical aesthetics and practicability for easy maintenance
• PLC controller, PC and on-line UPS form a stable, safe and efficient controlling system
• Advanced software with PCB counting, temperature setting, parameter menu, profile testing, alarms and multi-language conversion
• One-week timer for automatic operation scheduling and solder melting
• Specially designed guiding rail reduces heat deformation with replaceable copper bars
• Stepper motor-driven sprayer with precise speed and movement control
• Japanese ST-6 sprayer for perfect flux atomization performance
• Automatic flux feeding system with dual sensors
• Forced air convection preheat zone with PID temperature control
• 3 individual bottom hot air zones plus optional upper hot air zone
• Cast iron heater mounted outside solder pot for extended lifespan
• Dual wave solder with transducer-controlled wave heights
• 3mm thickness Ti material solder pot with long life warranty
• High quality Italian B&M wave motor for quiet, stable operation
• Automatically lifting and moving solder pot for easy maintenance and conversion

PCBs with mounted components are automatically fed into the chain conveyor system. The process includes flux spraying, preheating, wave-soldering and cooling before the soldered PCBs exit the system.

Connects directly with insertion conveyor, featuring bottom sensor for counting and spray fluxer control, plus width measurement ruler.

Air supply with adjustable flow pressure meter for precise flux application control.

High quality Japanese sprayer driven by stepper motor with precise speed control via touchscreen, offering smoother operation than traditional air cylinder systems.
