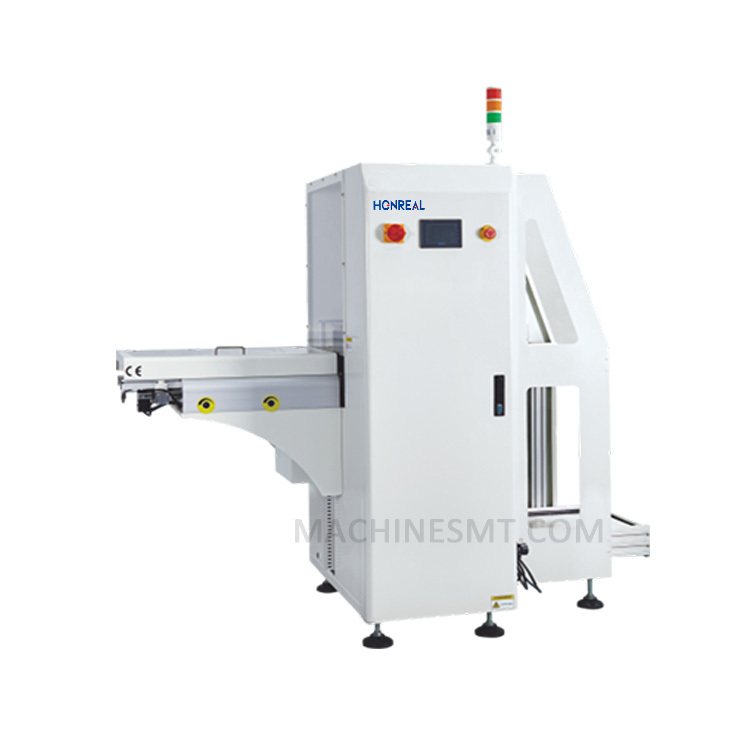

Compact SMT PCB Loader Unloader for 50x50 to 350x250mm Boards

1set
MOQ
USD3200-5800/SET
Price
Compact SMT PCB Loader Unloader for 50x50 to 350x250mm Boards
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: Min0.6mm
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1700×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Highlight:

SMT PCB Magazine Loader Unloader

,

Electrical Electronic PCB Magazine Loader Unloader

,

Compact Design PCB Magazine Loader Unloader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250X
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
Compact Design SMT PCB Magazine Loader Unloader for Electrical Electronic Product Line
Key Specifications
Attribute Value
PCB thickness Min 0.6mm
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm (50x50)～(350x250)mm
Machine size (L×W×H)mm 1700×750×1200mm
Magazine size (L×W×H)mm 355×320×563mm
Product Description

Stable PCB Magazine Unloader Multi PCB Unloader SMT Loader Unloader With Dust Cover

Key Features
  • Outer structure: sheet metal and aluminum profile frame with optional color surface spray treatment
  • Microcomputer PLC control system for stable and reliable operation
  • Touch screen display with automatic fault diagnosis and user-friendly interface
  • Multiple sound and light alarm functions integrated in touch screen
  • Adjustable rack lifting step based on PCB thickness
  • Automatic counting function for production statistics
  • User-friendly design prevents PCB board damage and improves output capacity
  • Motor-driven PCB board transfer to material frame
  • Stepper motor push plate with adjustable intensity and speed settings
  • Push plate device features two-end limit protection for PCB boards
Technical Specifications
Model No HR-EU250X HR-EU330X HR-EU390X HR-EU460X
PCB size (L×W)～(L×W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L×W×H)mm 1700×750×1650 1950×830×1650 2210×920×1650 2210×990×1650
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 150kg 180kg 200kg 230kg
