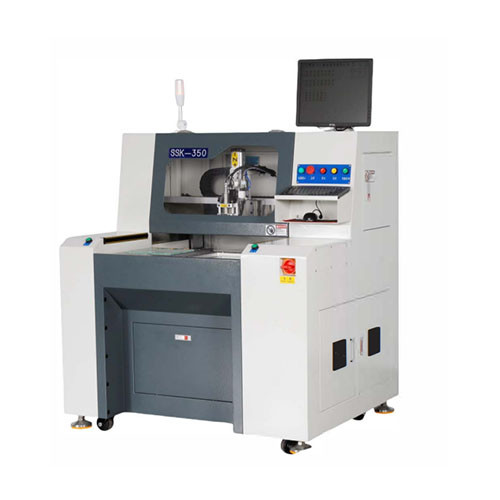

Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine
  • name
  • name
  • name
  • name
  • name

Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine

MOQ: 1
Price: USD 16000-22000 Per Set
Standard Packaging: Export wooden box packaging
Delivery Period: 20 work days
Payment Method: T/T
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Horeal
Certification
CE
Model Number
SSK-350
Document
PCBA milling depanelizer.pdf
Single Workable Area:
350mm X 400mm
Double Workable Area:
750mm X 400mm
Plate Positioning Way:
Fixture Positioning, Vision Correction
Spindle Motor Speed:
60000rpm/min
Maximum Cutting Speed:
200mm/s
Max Moving Speed:
1000mm/s
Cutting Repeat Accuracy:
0.01mm
Cutting Function:
Straight Line, Slash, Arcs,round
Machine Size:
1550mm*1350mm*1450mm(With The Display)
Highlight:

Single Table PCBA Router Machine

,

Offline PCBA Curve Cutting Machine

,

Double Table PCBA Router Machine

Product Description
Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine
Key Features
  • High-precision CCD zoom lens with program teaching and editing features for clearer images and superior accuracy

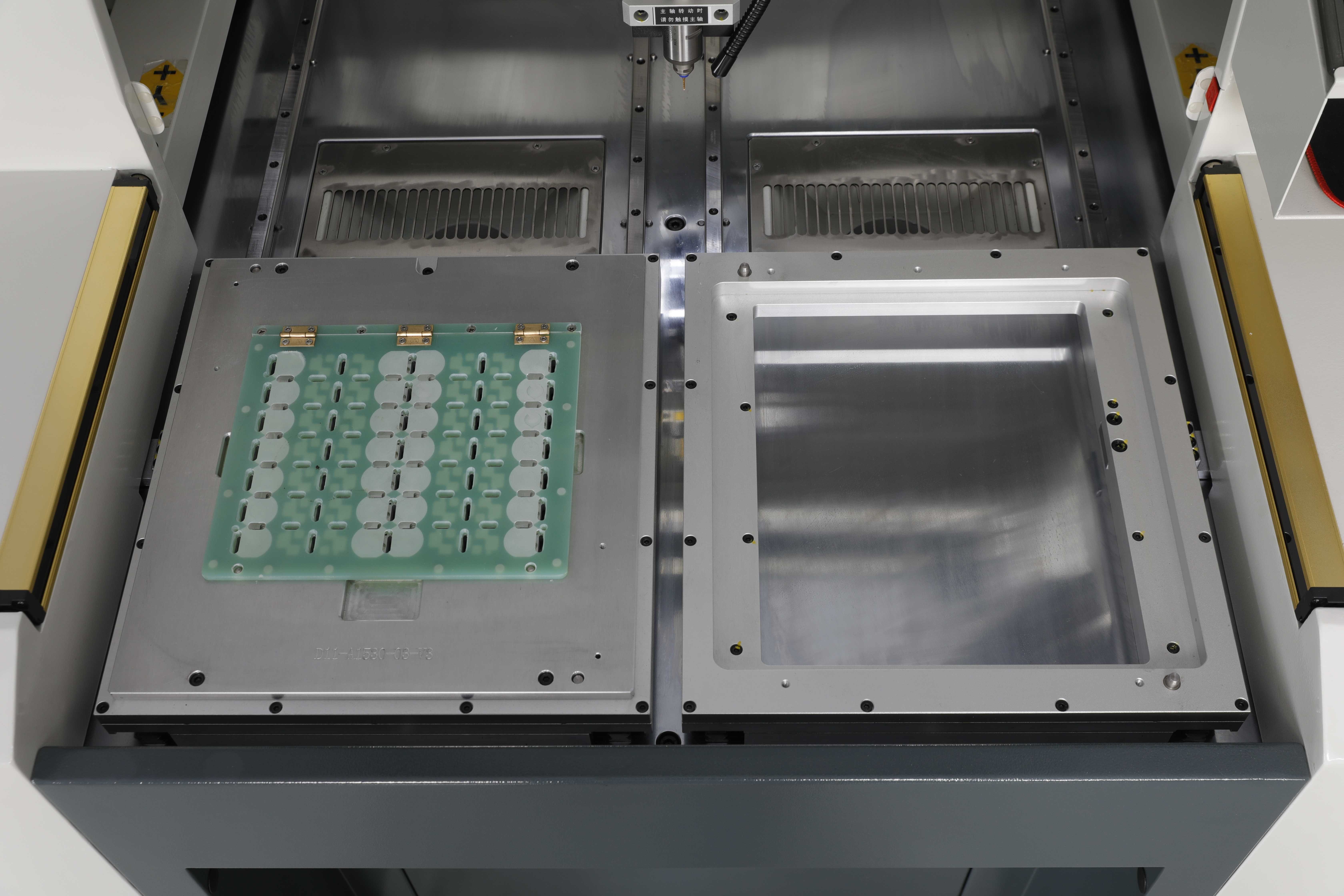

  • Dual-platform PCB feeding system minimizes idle time for optimal production efficiency
  • Automatic MARK point positioning with real-time path display and correction (±3mm tolerance)
  • Tool life monitoring system with customizable settings to extend cutter lifespan
  • Transparent safety door design provides clear process visibility and accident prevention
  • Fast CAD file import capability for rapid programming and precise visual programming
Technical Specifications
Attribute Value
Single workable area 350mm x 400mm
Double workable area 750mm x 400mm
Plate positioning Fixture positioning with vision correction

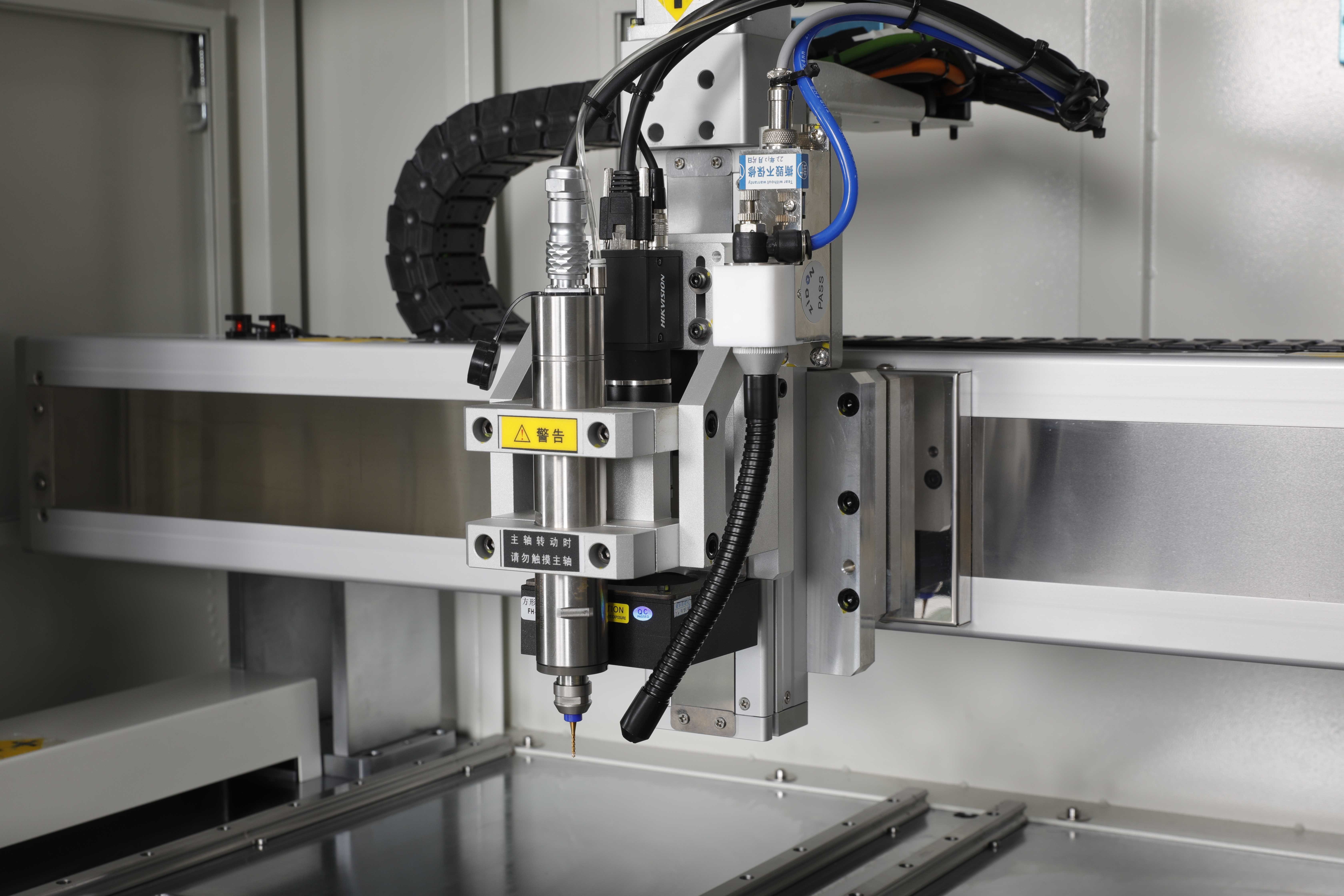

Spindle motor speed 60000rpm/min
Maximum cutting speed 200mm/s
Max moving speed 1000mm/s
Cutting repeat accuracy 0.01mm
Cutting functions Straight line, slash, arcs, round
Machine dimensions 1550mm x 1350mm x 1450mm (with display)
Additional Specifications

Model No: SSK-350

Control motor type: RUKING-SEAZ-20LRCP

X Y Z mobile area: 800mm x 450mm x 60mm

Plate thickness: <5mm

Cooling system: Self-cooling

Tool replacement: Special wrench

Filtration system power: 2.2KW 380V Motor

Power supply: 2KW AC220V

Air supply: 2~5KG/cm²

Program memory: Customizable storage locations

Vision system: High-pixel color CCD

Dust collection: Lower dust with independent collection

Cutter compensation: Automatic

Shaft position accuracy: 0.001mm

Cutting accuracy: 0.02mm

Weight: Approximately 750KG

Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine 0 Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine 1 Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine 2
