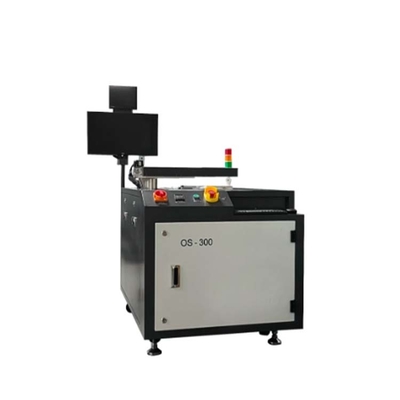

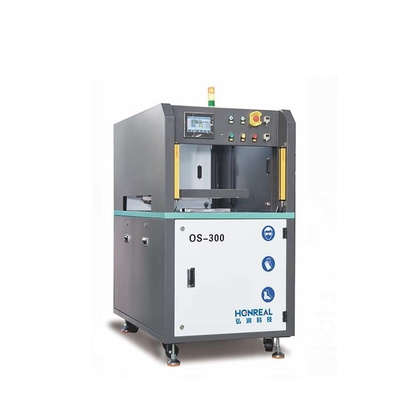

Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering

MOQ: 1 set
Price: USD 23800-26800 Per Set
Standard Packaging: Export wooden box packaging
Delivery Period: 30 work days
Payment Method: T/T，,Western Union,MoneyGram
Supply Capacity: 1000 sets/Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honeal
Model Number
OS-300
Dimension:
L870mm X W1230mm X H1550mm
Max Carrier Size:
Max:350(L)*300(W)(mm)
Emperature Setting Range:
Max400 ℃
Position Accuracy:
+ / - 0.05 Mm
Solder Pot Capacity:
13 Kgs /PCS
Preheat Method:
Upper IR Heating
Highlight:

mini desktop selective soldering machine

,

high precision automated soldering machine

,

PCB assembly wave soldering machine

Product Description
Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering
Product Attributes
Attribute Value
Dimension L870mm X W1230mm X H1550mm
Max carrier size Max:350(L)*300(W)(mm)
Temperature setting range Max400 ℃
Position accuracy + / - 0.05 mm
Solder pot capacity 13 kgs /PCS
Preheat method Upper IR heating
Mini Wave Selective Soldering Machine for Electronics Production
Features:
  • The machine integrates flux spraying and soldering
  • The solder pot is fixed, and the PCB board moves to realize soldering
  • Maximum PCB dimensions: 300 x 300mm
  • Small in occupation space and low in energy consumption
  • Manual placement and removal of boards
  • It is particularly suitable for the products of NPI
Technical Parameters
Machine Parameters
Dimensions L870mm X W1230mm X H1550mm
Power supply Single phase 220V 50HZ
Shipping Parameters
Rail adjustable range 50-300MM
PCB board size L350 X W300MM
Transport height 900±30mm
Sports platform Pulley + slide rail
Movement accuracy ±0.25 mm
Tin Furnace Parameters
Crest drive Mechanical pump
Number of tin furnaces Single cylinder
Tin furnace capacity 13 kg / furnace
Nitrogen consumption About 1.5 ~2 m3/h per tin cylinder
Programmatically Manually enter coordinates

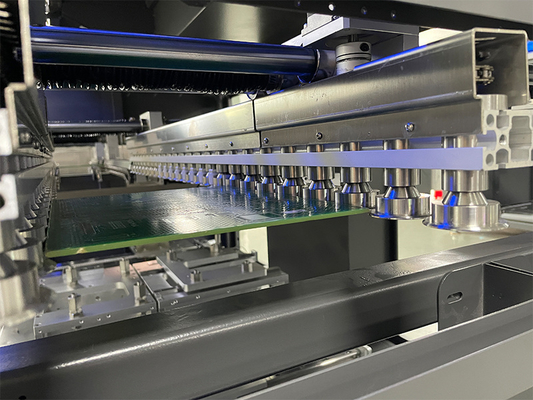

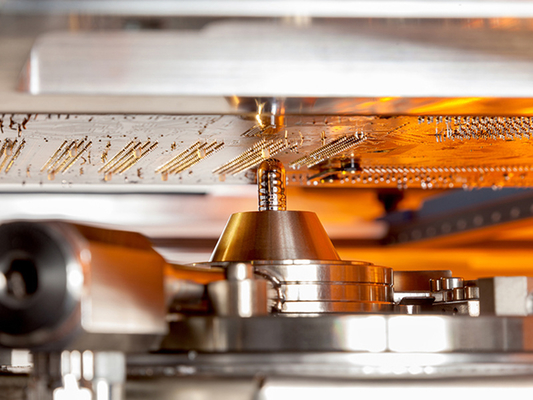

Product Details
Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering 0 Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering 1
Certification
Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering 2
Packing
Mini Desktop Wave Selective Soldering Machine High Precision Automated Selective Soldering PCB Assembly Soldering 3
Tags:

Automatic PCB Board Soldering Machine,

LED SMT Wave Soldering Machine,

PCB SMT Wave Soldering Machine
