In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

1set
MOQ
Negotiable
Price
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
Features Gallery Product Description Request A Quote
Features
Specifications
Required N2 Pressure: 0.4-0.6MPa
Product Name: HRX-31D Online Selective Wave Soldering
Product Category: SMT Selective Wave Soldering Machine
Net Weight: 2500KG
Positioning Axis: X, Y, Z
Dimension: L4193 X W1645 X H1630mm
Max Carrier Size: L580 X W460mm
Preheat Method: Top Hot Air Preheating; Bottom Shortwave Infrared Preheating
Highlight:

selective wave soldering machine HRX-31D

,

two pot selective solder machine

,

SMT wave soldering machine with warranty
Basic Infomation
Place of Origin: China
Brand Name: HONREAL
Certification: CE
Model Number: HRX-31D
Document: Honreal--Double module sele...p).pdf
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 45 Work Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100sets/month
Product Description
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

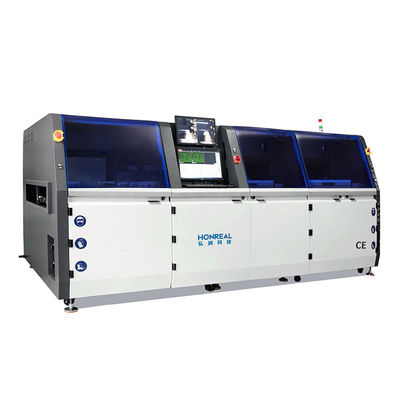

High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages
  • Fully functional online model with spray, preheating and welding three-stage configuration
  • Segmented independent PCB transport guide for improved production efficiency
  • High welding quality with improved pass rate
  • Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
  • Modular SMEMA online transportation design for flexible line formation
  • Full PC control with parameter saving capability for repeatable soldering quality
Technical Specifications
Parameter Value
Equipment type HRX-31D
Machine size L4193 x W1645 x H1630mm
Total machine power 35kw
Machine operating power 9-12kw
Power source Three-phase five-wire system 380V
Net weight 2500KG
Air source pressure requirements 0.4~0.6Mpa
Nitrogen source pressure requirements 0.4~0.6Mpa
Nitrogen source flow requirements ≥4 cubic/hour
Nitrogen source purity requirements ≥99.999%
Communication interface SMEMA

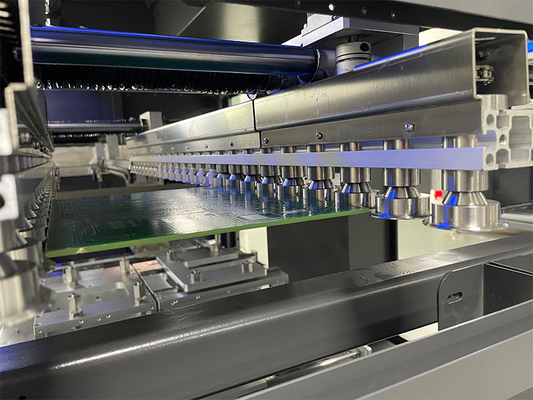

Transport Module Specifications
Feature Specification
Maximum PCB size L508 x W460mm
PCB board edge More than 5mm
Transport direction Horizontal from left to right
Headroom on PCB board 120mm
PCB board bottom clearance 60mm
Transport bearing capacity ≥10Kg
Transport height 900±30mm
Software Features
  • Independent software system with complete intellectual property rights
  • Live solder process display via camera
  • Critical parameter monitoring (temperature, speed, pressure)
  • Offline programming capability
  • Multiple programming methods (Gerber, camera scanning, PCBA scanning)
  • Automatic wave peak height correction
  • Comprehensive PCB menu storage for historical data tracking
  • LOG function with 3-level access rights
Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

  • Remote technical assistance via phone or email
  • On-site support services including installation, training, and maintenance
  • Dedicated technical team for peak performance optimization
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 0 In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 1
Company Information

Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. We serve top global electronic companies with our experienced technical team and innovation capabilities.
