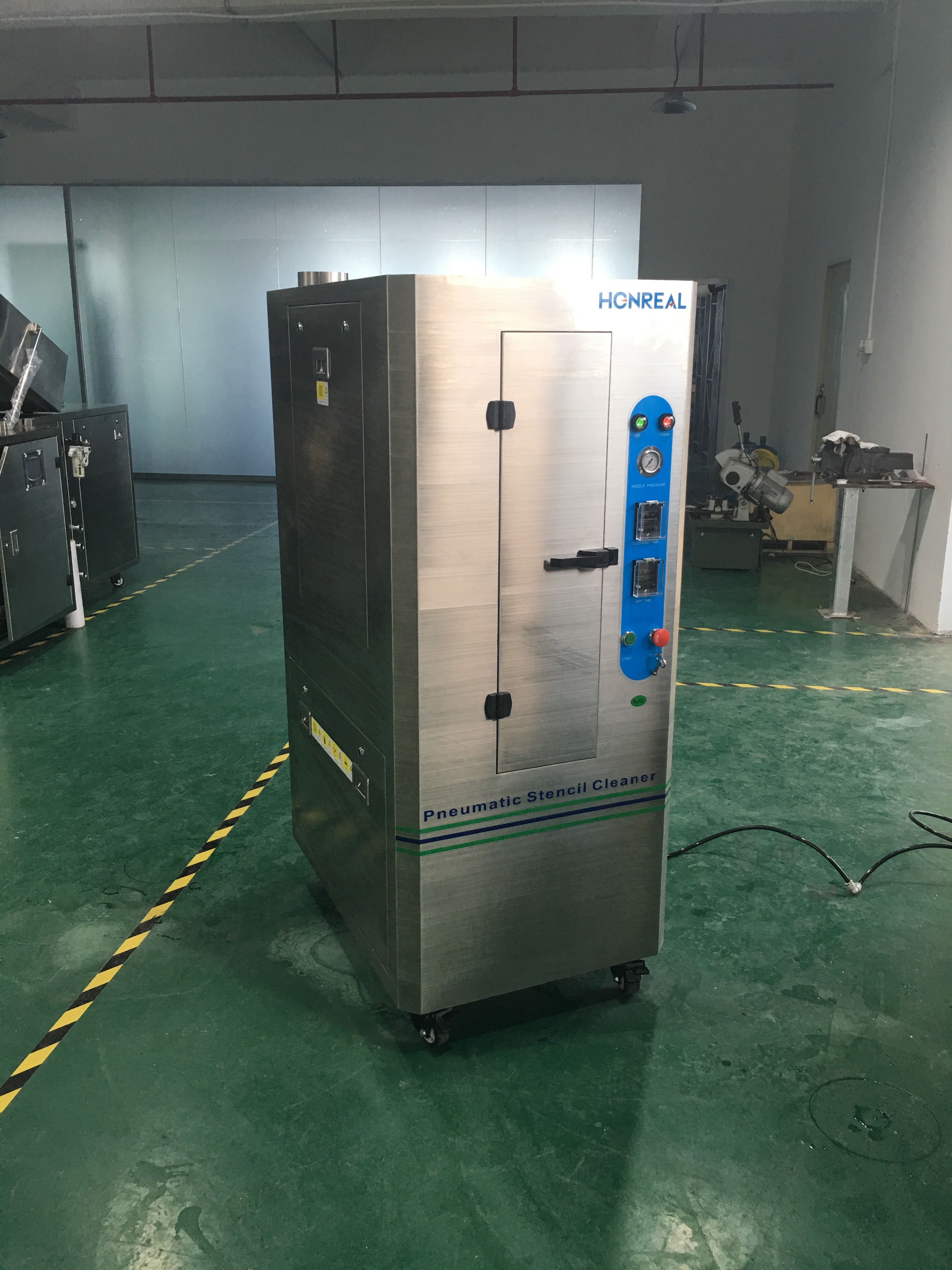

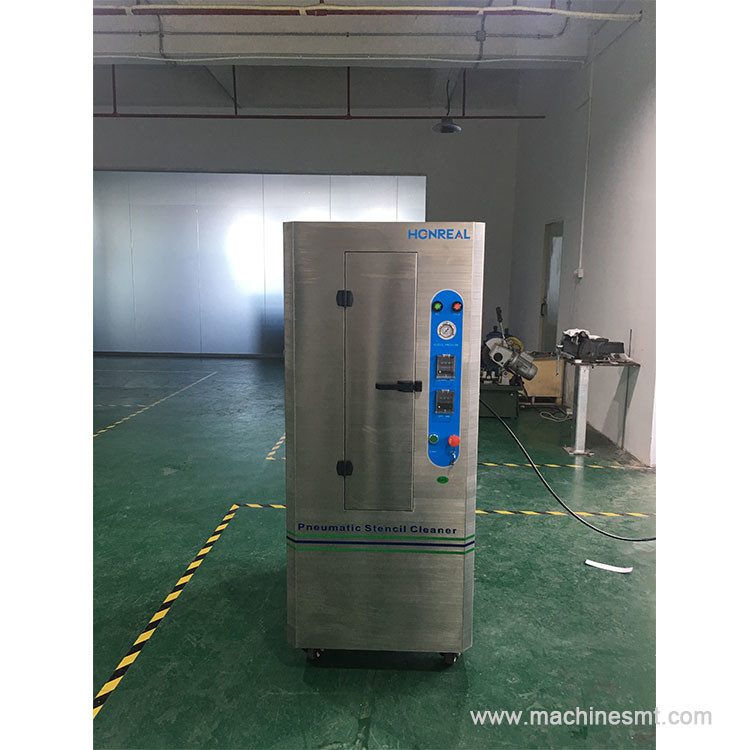

Steel Mesh SMT Stencil Cleaning Machine Pneumatic For SMT Line

MOQ: 1set
Price: USD 7500-9000/ set
Standard Packaging: Woodencase
Delivery Period: 15 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100 sets/ month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONREAL
Certification
CE
Model Number
HR-1688
Product Name:
Pneumatic Stencil Cleaning Machine
Cleaning Time:
3~5min
Maximum Tank Volume:
40L
Compressed Air Pressure:
0.45~0.7Mpa
Gas Consumption:
400~600L/min
Filter System:
10um/5um/1um, 3 Level
Highlight:

Steel Mesh SMT Stencil Cleaning Machine

,

Pneumatic SMT Stencil Cleaning Machine

Product Description

SMT Steel Mesh Cleaning Machine SMT Stencil Cleaning Machine For Smt Line

Field of application:
Suitable for steel mesh,copper mesh,porous network and crystal and other types of discscreen cleaning;
also suitable for circuit board,fixture,scraper and othersimilar products and cleaning appliances

Features:
1.Stainless steel body: beautiful,wear resistant,corrosion resistant,in live with environmental protection requirements and standards;
2.Fill pneumatic operation,without electricity,there isno fire and other security risks,the steel certified by the EU safety regulation;
3.High density isobaric double rotation cleaning nozzle: clean power and will not damage the steel wire tension;
4.Four stage filtration system,low exhaust duct design:solvent recycling,low consumption;
5.System integration of global quality devices: to ensure good quality,stable performance,long service life.

Specification:

SMT Pneumatic Stencil Cleaning Machine
Item HR-1688
Max stencil size L736 x W736 x H40(mm)
Maximum tank volume 40L
Cleaning time 3~5min
Drying time 3~5min
Compressed air pressure 0.45~0.7Mpa
Gas consumption 400~600L/min
Clean method 360°rotation spray clean + compressed air blow dry
Filter system 10um/5um/1um, 3 level
Machine size L980 x W700 x H1730(mm)
Machine weight 320KG


Steel Mesh SMT Stencil Cleaning Machine Pneumatic For SMT Line 0Steel Mesh SMT Stencil Cleaning Machine Pneumatic For SMT Line 1



Company Information

Shenzhen Honreal Technology Co., Ltd. is recognized as a prominent national high-tech enterprise, specializing in the research, development, production, and sales of SMT equipment. We proudly serve renowned electronic companies listed among the world's top 500. Our company has a registered capital of 5 million, accompanied by a highly skilled technical team and a remarkable aptitude for technical innovation. Our enduring objective is to establish an improved product supply chain and service team, aimed at fulfilling diverse customer requirements. We are committed to comprehending our customers, prioritizing their needs, and delivering valuable services that exceed expectations.



Steel Mesh SMT Stencil Cleaning Machine Pneumatic For SMT Line 2


Certification


Steel Mesh SMT Stencil Cleaning Machine Pneumatic For SMT Line 3





FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
3) I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
