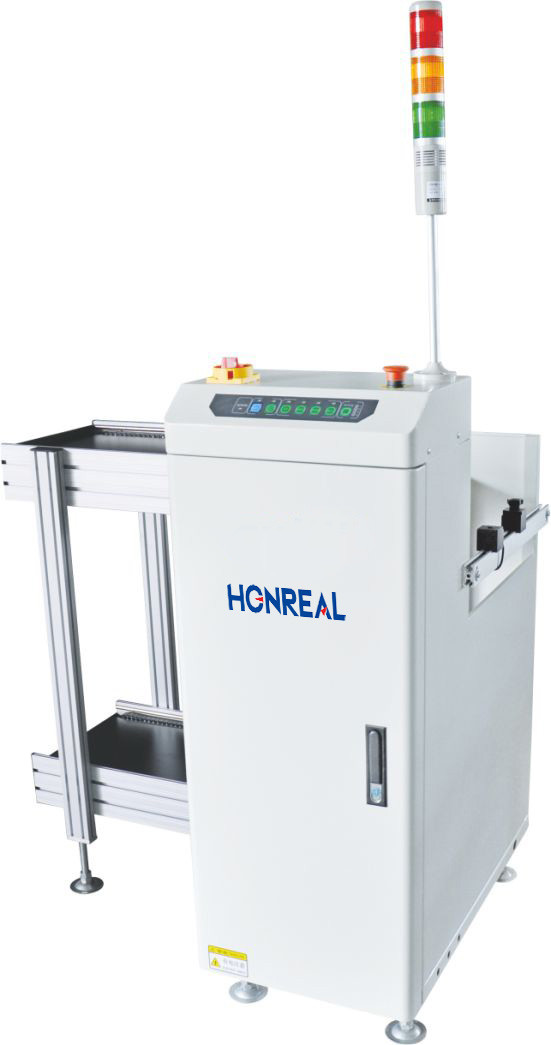

Mini Size Smt Magazine Rack Loader Unloader For Pcbs With OEM/ODM Services For Pcb Board Transmission

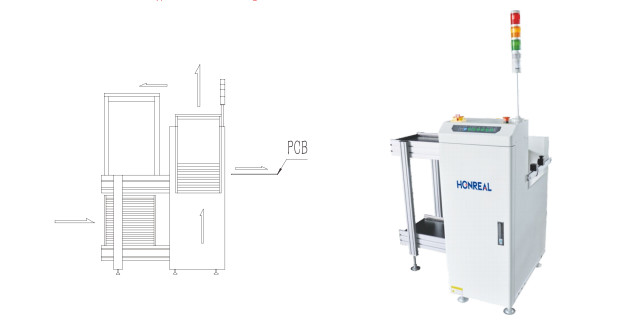

Product introduction:
|
Technical parameters
|
|
| Function | This unit is used to send PCBs out from magazine to SMT production line |
|
PCB thickness
|
Min0.6mm |
|
Magazine number
|
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select
|
1-4(10mm step pitches) |
|
PCB loading time
|
Approx 6 seconds |
|
Magazine change-over time
|
Approx 30 seconds |
|
Transport direction
|
Left to right/right to left(optional) |
|
Transport height
|
900±20mm(or customized) |
|
Air pressure
|
4-6 bar, MAX30L/minute |
|
Power supply
|
100-230V AC(customized) single phase, MAX 300V/A |
| Specifications | ||||
| Model No | HR-250D | HR-330D | HR-390D | HR-460D |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1080×770×1200 | 1280×850×1200 | 1450×920×1200 | 1450×990×1200 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 110kg | 130kg | 150kg | 165kg |
Who We Are ?
Shenzhen Honreal Technology Co., Ltd. is recognized as a prominent national high-tech enterprise, specializing in the research, development, production, and sales of SMT equipment. We proudly serve renowned electronic companies listed among the world's top 500. Our company has a registered capital of 5 million, accompanied by a highly skilled technical team and a remarkable aptitude for technical innovation. Our enduring objective is to establish an improved product supply chain and service team, aimed at fulfilling diverse customer requirements. We are committed to comprehending our customers, prioritizing their needs, and delivering valuable services that exceed expectations.
Certification
Packing
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
