Three-Phase 380V 50HZ Small Inline Selective Wave Solder L1400mm X W1450mm X H1700mm

Product Description:

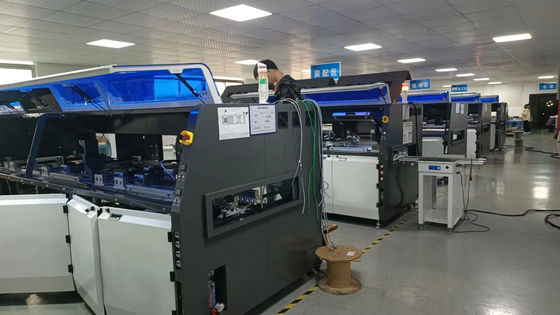

The SELPOT-400 Online Selective Wave Soldering Machine is a Dual Pot Selective Wave Soldering Machine that is perfect for producing high-quality SMT products. It has three positioning axes - X, Y, and Z - that allow you to position your products precisely. With a Position Accuracy of + / - 0.05 Mm, you can be assured that your products will be soldered accurately and efficiently.

The SELPOT-400 Online Selective Wave Soldering Machine is a powerful machine that requires an air source of 0.4-0.6MPa to operate. It has a user-friendly interface that makes it easy to use, and it is equipped with advanced features that ensure optimal performance. This Lead Free SMT Selective Wave Soldering Machine is perfect for use in a variety of industries, including electronics, automotive, medical, and more.

Features:

• Product Name: SELPOT-400 Online Selective Wave Soldering Machine Selective Solder Machine
• Max Carrier Size: L400 X W400MM
• Positioning Axis: X, Y, Z
• Required Power Supply: Three-phase 380V 50HZ
• Required Air Source: 0.4-0.6MPa

• Small Offline Selective Wave Solder
• Dual Pot Selective Wave Soldering Machine
• Small Offline Selective Wave Solder

Technical Parameters:

SoftwarePart:

• All software system developed by company from India, with our practical experience about selective soldering, base on Windows7 system, with good trace-ability.

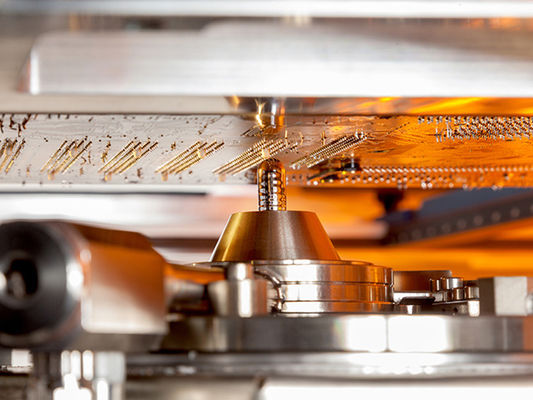

• Use scanned picture as background for path programming, moving speed, dwell time, empty move speed, Z height , wave height etc all programmed for different solder site.
• Show solder process with live on camera.
• Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc.
• With auto wave height calibration function, to check & calibrate wave’s height after every certain pcb, so to keep a very good stability of wave.
• Can upgraded to be with Mark positioning function, to check PCB’s mark point after every certain pcb, so to be reduce the pcb’s position offset.
• About PCB’s menu in soldering machine, all information will be stocked in one file. It will include PCB dimension and picture, used flux type, solder type, solder nozzle type, solder temperature, N2 temperature, motion path and each site’s related wave height and Z height etc. When customer to solder same PCB, they can get full information about how it’s done in history, also easy for trace.
• With LOG function, provide 3 level to enter software with different rights. Meanwhile, can record machine’s operation & alarm.

Support and Services:

The SMT Selective Wave Soldering Machine is designed to provide reliable and consistent performance in high-volume production environments. Our technical support team is available to assist with any questions or issues that may arise during the installation, set-up, or operation of the equipment.

In addition to support, we offer a range of services to ensure optimal performance and longevity of the SMT Selective Wave Soldering Machine. These include:

• Regular maintenance and cleaning
• Calibration and adjustment
• Repairs and replacement of parts
• Training for operators and technicians

Our team of experienced technicians has extensive knowledge of the SMT Selective Wave Soldering Machine and can provide customized solutions to meet your specific needs. Contact us to learn more about our technical support and service options.
