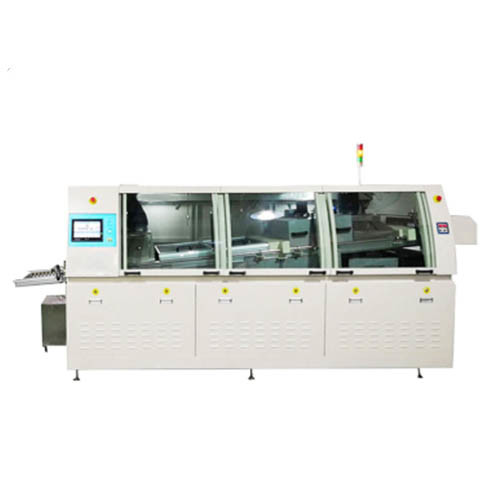

Automatic Dip Wave Soldering Machine with 390kg Solder Pot

MOQ:	1set
Price:	USD 15000-18000 Per Set
Standard Packaging:	woodencase
Delivery Period:	15 work days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	100sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HONREAL

Certification

CE ISO

Model Number

HR-400F

Dimensions:

4260(L)*1495(W)*1725(H)

Controlling Type:

PC + PLC Controlling

Temperature Range:

Ambient---300℃

Max PCB Width:

50-400MM

Conveyor Speed:

0-1800mm/min

Sprayer:

St-6 Made In Japan

Highlight:

Automatic Dip Wave Soldering Machine

3 Individual Bottom Wave Soldering Machine

Hot Air Zone Wave Soldering Machine

Product Description

Automatic Dip Wave Soldering Machine with 3 Individual Bottom Hot Air Zones

390kg Solder Pot Capacity

Key Specifications

Dimensions	4260(L)1495(W)1725(H)
Controlling type	PC + PLC controlling
Temperature range	Ambient---300℃
Max PCB width	50-400MM
Conveyor speed	0-1800mm/min
Sprayer	ST-6 made in Japan

Advanced Features

Streamlined design for easy maintenance based on mechanical aesthetics and practicability
PLC controller with PC and UPS for stable, safe and efficient control system
Advanced software with PCB counting, temperature setting, multi-language conversion and safety features
One-week timer for automatic startup, saving 1.5 hours daily
Specially designed guiding rail reduces heat deformation - only copper bars need replacement after 2 years
Precision Japanese ST-6 sprayer with perfect flux atomization
Automatic flux feeding system with dual sensors
3 individual bottom hot air zones plus optional upper zone for superior preheating
Cast iron heater mounted outside solder pot for extended lifespan
Dual wave solder system with transducer-controlled wave heights
3mm thickness Ti material solder pot with long life warranty
Italian-made B&M wave motor for quiet, stable operation
Automatically lifting solder pot for easy maintenance and lead/lead-free conversion

HR-400L Technical Specifications

Model	HR-400L
PCB width	50-400MM
Solder pot capacity	390kg
Running power/general power	5-12KW/25KW
Machine dimension	4260(L)1495(W)1725(H)
Net weight	1500KG
Controlling system	PC + PLC
Conveyor motor	3Ph 220V , 90W
Conveyor speed	200MM-1800MM/Min
Preheating zone	3 individual bottom preheating zones
Solder pot material	Fully Ti
Wave type	Turbulence first wave and Lambda 2nd wave

Process Flow

PCBs with mounted components are automatically fed into the chain conveyor system, progressing through flux spraying, preheating, wave-soldering and cooling processes before exiting the system.

Operation Precautions

Maintain flux specific gravity at 0.83 and replace every 15-30 days
Clean nozzle daily with alcohol to prevent clogging
Regularly check sensors and clean filters 1-3 times daily
Monitor PCB bottom temperature for optimal soldering
Inspect cables regularly to prevent electrical issues
Only trained operators should adjust spray settings

Certifications

Our Services

We provide comprehensive pre-sales consultation, contract-compliant production and delivery, installation support, technical training, and long-term technical support with readily available spare parts.
