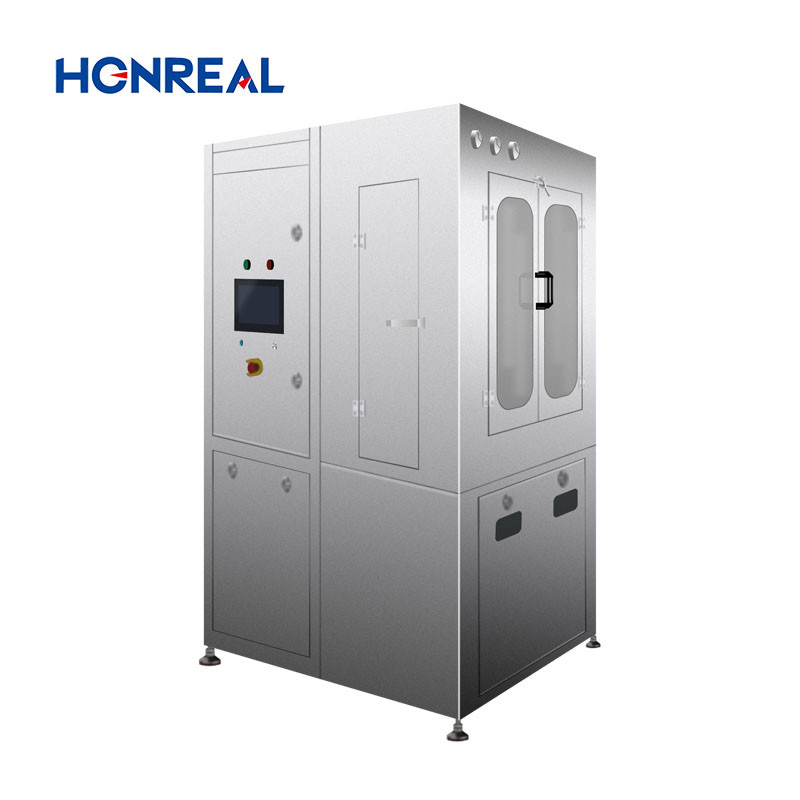

Electrical Stencil Cleaning Machine 50L Capacity 30-60L/Min DI Water

Water Based Steel Mesh Cleaning Machine Electrical Stencil Cleaning Machine

• Comprehensive cleaning system: cleaning of SMT steel mesh, SOP printing steel mesh, printing glue jig, can effectively clean the residual solder paste, red glue and other pollutants on the surface and hole wall after printing
• Fully automatic cleaning mode: complete the cleaning, rinsing and drying processes in one cleaning room, with small size and compact structure
• Visualization of the whole process: the cleaning room is equipped with a visualization window, and the cleaning process is clear at a glance
• Widely used: SMT/SOP steel mesh, printing glue jig, SMT scraper, large-size PCBA/ misprinted board
• Real-time conductivity/cleanliness monitoring system of DI water: used to monitor the cleaning effect, the conductivity can be set, and the conductivity control range is 10μs~400 μs
• Nozzle pressure adjustable and symmetrical design: solves the tension problem of SMT/SOP steel mesh under high pressure spraying conditions during cleaning
• Standard cleaning liquid tank heating system: meets the needs of water-based processes for heating and emulsification, greatly improves cleaning efficiency and shortens cleaning time
• Low operating cost: built-in filtering device can realize the recycling of solvents and reduce the amount of solvents. At the end of cleaning, compressed air is used to recover the residual chemical liquid in the pipeline and pump, which can effectively save 50% of the cleaning agent
• More environmentally friendly and zero pollution discharge: built-in rinsing liquid discharge filtration system, effectively filter various impurities generated during the cleaning process, environmentally friendly discharge
• High-pressure fan + wind knife cut wind and dry: 5HP high-pressure fan is used to make drying more efficient (3-5 minutes) and more thorough!

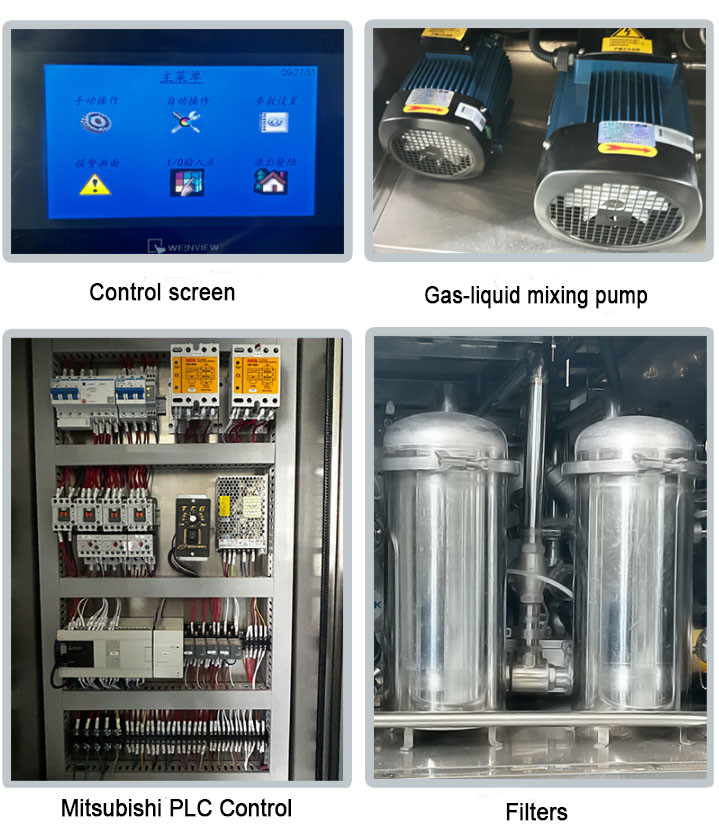

• Full Chinese large touch screen operation interface: using a stable and reliable imported brand color touch screen, for solvent temperature, cleaning time, rinsing times/time, rinsing temperature, drying time, drying temperature, conductivity monitoring parameters and other settings

Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise, specializing in SMT equipment research and development, production, sales. Services for the world's top 500 electronic companies. The registered capital of the company is 5 million. Having experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

• This is the first time I use this kind of machine, is it easy to operate?
  There is english manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
• How is the training?
  After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
• I would like to ask you if it's possible to have my logo on the product.
  We hope you know that our company perfectly support customized logo service, we're do this. Besides, it's totally free, so just tell us your requirements.
• How can I buy this machine from you? (Very easy and flexible!)
  A. Consult us about this product on line or by e-mail.
  B. Negotiate and confirm the final price, shipping, payment methods and other terms.
  C. Send you the proforma invoice and confirm your order.
  D. Make the payment according to the method put on proforma invoice.
  E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
  F. Send your order by air or by sea.
