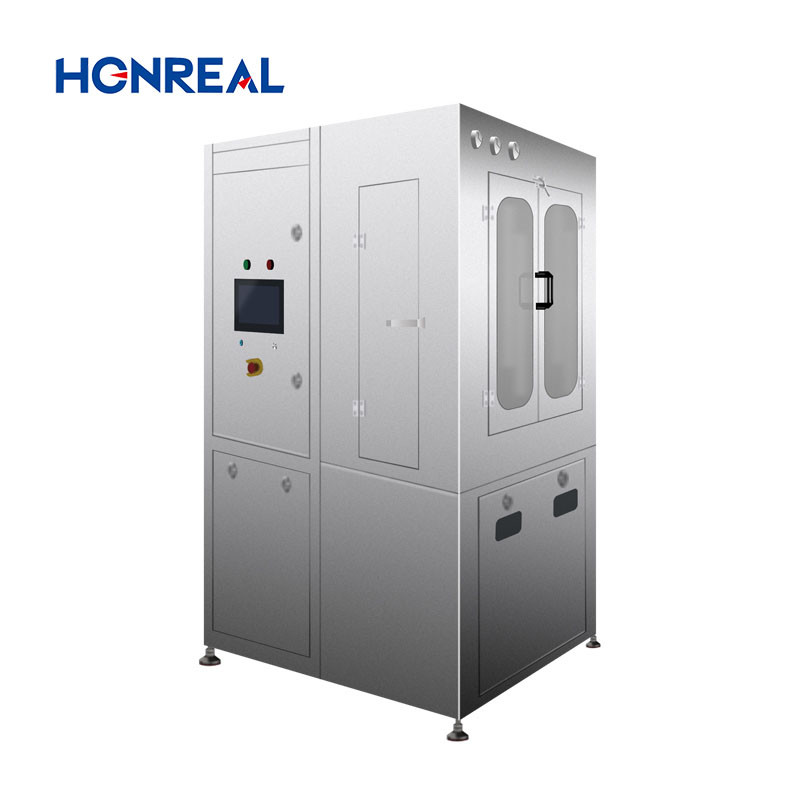

Water Based Steel Mesh Cleaning Machine Electrical Stencil Cleaning Machine
Features:
· Comprehensive cleaning system: cleaning of SMT steel mesh, SOP printing steel mesh, printing glue jig, can effectively clean the residual solder paste, red glue and other pollutants on the surface and hole wall after printing;
· Fully automatic cleaning mode: complete the cleaning, rinsing and drying processes in one cleaning room, with small size and compact structure;
· Visualization of the whole process: the cleaning room is equipped with a visualization window, and the cleaning process is clear at a glance;
· Widely used: SMT/SOP steel mesh, printing glue jig, SMT scraper, large-size PCBA/ misprinted board;
· Real-time conductivity/cleanliness monitoring system of DI water: used to monitor the cleaning effect, the conductivity can be set, and the conductivity control range is 10μs~400 μs;
·Nozzle pressure adjustable and symmetrical design: solves the tension problem of SMT/SOP steel mesh under high pressure spraying conditions during cleaning;
·Standard cleaning liquid tank heating system: meets the needs of water-based processes for heating and emulsification, greatly improves cleaning efficiency and shortens cleaning time;
·Low operating cost: built-in filtering device can realize the recycling of solvents and reduce the amount of solvents. At the end of cleaning, compressed air is used to recover the residual chemical liquid in the pipeline and pump, which can effectively save 50% of the cleaning agent;
·More environmentally friendly and zero pollution discharge: built-in rinsing liquid discharge filtration system, effectively filter various impurities generated during the cleaning process, environmentally friendly discharge;
·High-pressure fan + wind knife cut wind and dry: 5HP high-pressure fan is used to make drying more efficient (3-5 minutes) and more thorough!
·Full Chinese large touch screen operation interface: using a stable and reliable imported brand color touch screen, for solvent temperature, cleaning time, rinsing times/time, rinsing temperature, drying time, drying temperature, conductivity monitoring parameters and other settings.
Specification:
| SMT Pneumatic Stencil Cleaning Machine | |
| Item | HR-1410 |
| Max stencil size | L736 x W736 x H40(mm) |
| Cleaning liquid capacity | 50L |
| Optimal liquid usage | 40LX2 |
| Clean method | left and right movable high-pressure liquid spray cleaning |
| Drying method | High-pressure hot air water drying |
| Cleaning time | 2-5 minutes cleaning liquid isolation reflux time 40 seconds |
| Rinse time | 2-5 minutes |
| DI water supply | 30~60L/Min |
| DI water inlet and outlet connection pipe | 1 inch |
| Air supply | 0.45Mpa~0.7Mpa |
| Power supply | AC380V 50HZ 65A |
| Total power | about 24KW |
| Machine net weight | 547.5KG |
| Machine size | 1140mm(L)X1160mm(W)X1850mm(H) |

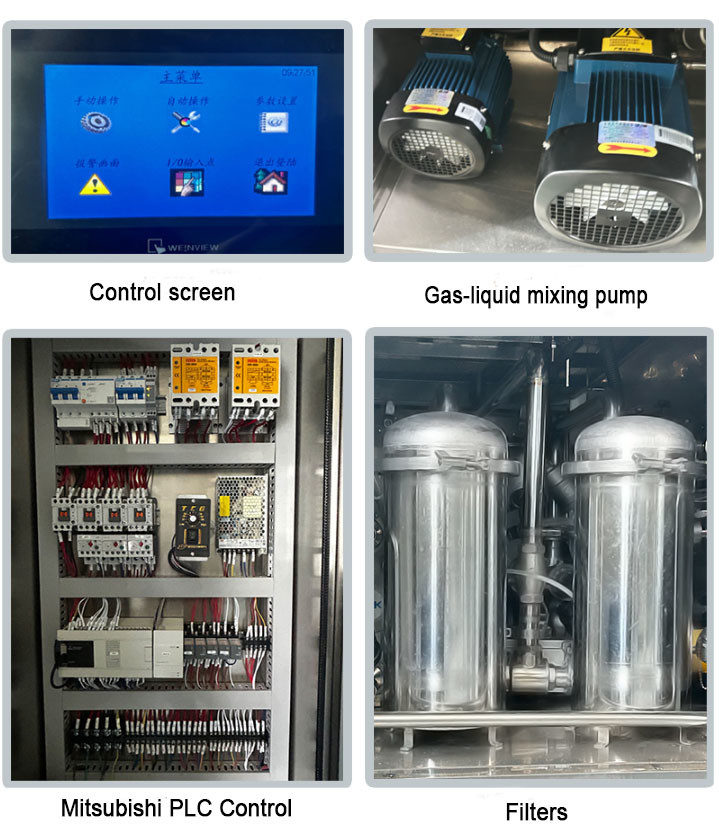

Details:
