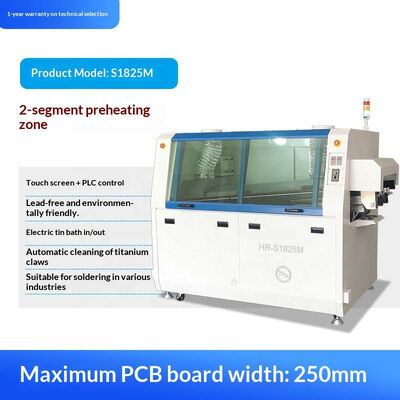

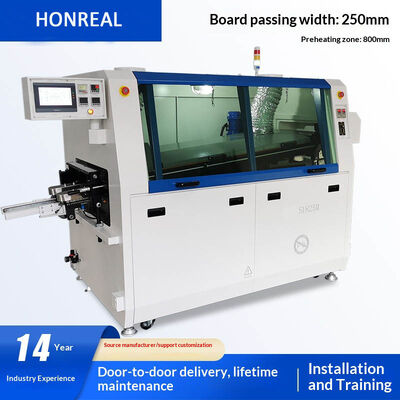

Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine

MOQ: 1set
Price: USD 5200 Per Set
Standard Packaging: woodencase
Delivery Period: 15 work days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100sets/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONREAL
Certification
CE
Model Number
HR-S1825M
Dimensions:
2200*1200*1600mm
Controlling Type:
Touchscreen + PLC
Temperature Range:
Ambient---350℃
Max PCB Width:
250mm
Conveyor Speed:
200MM-1800MM/Min
Solder Pot Capacity:
180kg
Power Type:
3-phase 220V 60Hz 3-phase 380 50HZ
Highlight:

mini through hole wave soldering machine

,

lead free PCB wave solder machine

,

automatic SMT wave soldering machine

Product Description
Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine
Technical Specifications
Model Lead-free double wave soldering machine HR-S1425M
Configuration Touch screen control, Two-stage hot air heating double wave peak, Manual tin furnace operation, Manual cleaning of titanium claws, Stepper motor spray swing
Number of peaks 2 peaks
Board width Max 250mm
Capacity of the tin furnace 180KG
Preheating length 600mm
Peak height 12mm
PCB board component pin length 10mm
PCB board transportation height 750±20mm
Starting power 9KW
Operating power 2KW
Power of the tin furnace 6KW
Preheating power 2KW
Motor Power 0.25KW
Control Methods Touch screen
Rack dimensions 1400*1200*1500mm
External dimensions 2200*1200*1600mm
PCB board transportation speed 0-1.2m/min
Preheating zone temperature Room temperature to 180°C
Heating method Hot air
Number of cooling zones 1
Cooling method Axial flow fan cooling
Tin furnace temperature Room temperature to 300°C
Transportation Direction Left to right
Temperature control method PID+SSR
Whole machine control mode Mitsubishi PLC + Touch Screen
Flux capacity Max 5.2L
Spray method Stepper motor + ST-6
Power source 3-phase 5-wire system, 380V, 50Hz
Air supply 4-7KG/CM², 12.5L/Min
Weight 600KG
PCB Board Requirements
  • Height limit of components on a PCB: 90mm
  • PCB board component foot length limit: 10mm
  • The direction of PCB board transportation: Left to right
Flux Spray Component
Blow Head: ST-6 system with spray range of 20-65mm, adjustable fan angle, nozzle height adjustable from 50 to 200 mm, maximum flow rate of 60 ml/min
Airway System: Imported filters, control valves and pipe fittings
Spray Nozzle Moving System: Stepper motor with Mitsubishi PLC intelligent control for selective spraying
Jet Movement: Precision stepper motor with slide rail
Flux Filter Recovery System: Stainless steel wire mesh filtration using fluid characteristics to maximize filtration and recovery of excess flux
Preheating Component
Extended Preheating Zone: 2-stage hot air preheating system with 600mm total length and independent temperature control
Temperature Control: PID control
Heater Block: High temperature hot air turbine with high temperature ceramic heating tube from Taiwan
Installation Mode: Drawer type modular design for convenient maintenance and repair
Tin Furnace Components
Temperature Range: Room temperature to 300°C
Tin Furnace Movement: Manual operation
First/Second Wave Spacing: 20-30mm
First Wave: Baozhun shock wave for surface mount components and double-sided pad components
Second Wave Peak Vent: Baozun advection wave
Low Oxidation Design: Lead-tin residue ≤2kg/8h, non-lead tin residue ≤1.5kg/8h (varies with tin bar impurities)
Economy Mode Operation: PLC and photoelectric switch control to reduce unnecessary waste
Wave Peak Motor: Digital Control of Peak Height with High Temperature Motor from Taiwan TCG Company
Heater Block: Specialized long-life design with hot air heating system, Taiwan ANV solid-state relay, and ±2°C tin liquid heating
Refrigeration System: Strong refrigeration axial flow fan cooling
PCB Transmission System
Guide Rails: High-strength, wear-resistant special aluminum rails with high-temperature stainless steel rails and thermal compensation structure
Parallelism of Guide Rails: 0.5mm
Width Adjustment: Manual width adjustment
Chain Claw: Double hook titanium claw splinting standard ≤2.5mm
Transmission Speed Range: Minimum unit: 1 mm/min; Range: 0-2200 mm/min
Transmission Speed Deviation: Electronic closed-loop control within 0-10 mm/min
Chain Tensioner: Adjustable sprocket tension
Transport Motor: Taiwan TCG 90W motor with overload limiter protection
Machine Structure
Body Structure: Streamlined fuselage frame with elegant and durable design
Front and Rear Door Structure: Fully enclosed structures with maximum maintenance space
Electrical Control Performance
Control Method: Mitsubishi PLC + Touch Screen
Control Interface: Simple and intuitive operation with stable performance
Abnormal Alarm: High or low temperature alarm
Temperature Control Protection: Stops heating when preheating or soldering furnace failure occurs
Accessories Brands & Models
Accessory Name Brand and Model
PLC, Touch Screen Mitsubishi, Display Control
Transport Motor, Gearbox Taiwan TCG Single-phase 90W, Tooth Box: 1:120K
Titanium Claw Special titanium alloy double-hook claws, 1.5mm thick
Tin Furnace Motor Taiwan TCG 3-phase 4-pole 0.25KW high-temperature resistant
Auxiliary Relay OMRON MY2, MY4
Frequency Transformer Yatai 0.4KW
Heating Tube Taiwan Exhibition, Importing Nickel-Chromium Wire
Photoelectric Switch 24V NPN Swiss Joy
Solid State Relay Zuoyi 40A
Air Switch Chint
AC Contactor Chint
Thermocouple Taiwan Panta, Insulation Type K
Button Start Schneider
Blow Head ST-6
Service System
Defects Liability Period: All accessories come with 1-year free warranty (excluding human factors)
Out of Warranty: Lifetime maintenance with paid service (labor and material costs only)
Product Images

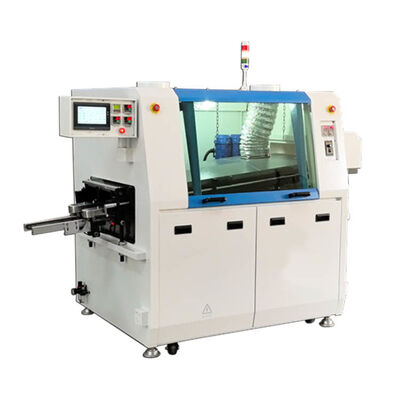

Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 0 Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 1 Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 2
Work Environment Requirements
  • Ventilated and dry workshop with flat floor
  • Ambient temperature: 5-45°C
  • Stable, well-grounded power supply with rated current
Before Powering On: Verify power rating, proper grounding, and secure electrical connections.
About Shenzhen Honreal Technology Co., Ltd

National high-tech enterprise specializing in SMT equipment R&D, production, and sales. Serving top 500 electronic companies worldwide with registered capital of 5 million. Our experienced technical team focuses on innovation to meet diverse customer needs through valuable services.

Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 3
 Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 4
Frequently Asked Questions
Q: How can you guarantee your sales' quality?
A: We guarantee rigorous testing of every machine before delivery to ensure excellent performance.
Q: How is the training?
A: Engineers can train at our facility or easily learn through provided training videos and user manual included with the machine.
Q: Can I have my logo on the product?
A: We fully support free customized logo service - just provide your requirements.
Q: Is it hard to use these machines?
A: No, most clients learn operation within 2 days.
Packaging
Automatic Mini Through Hole Heat PCB Wave Soldering Machine Lead Free Wave Solder Machine 5
