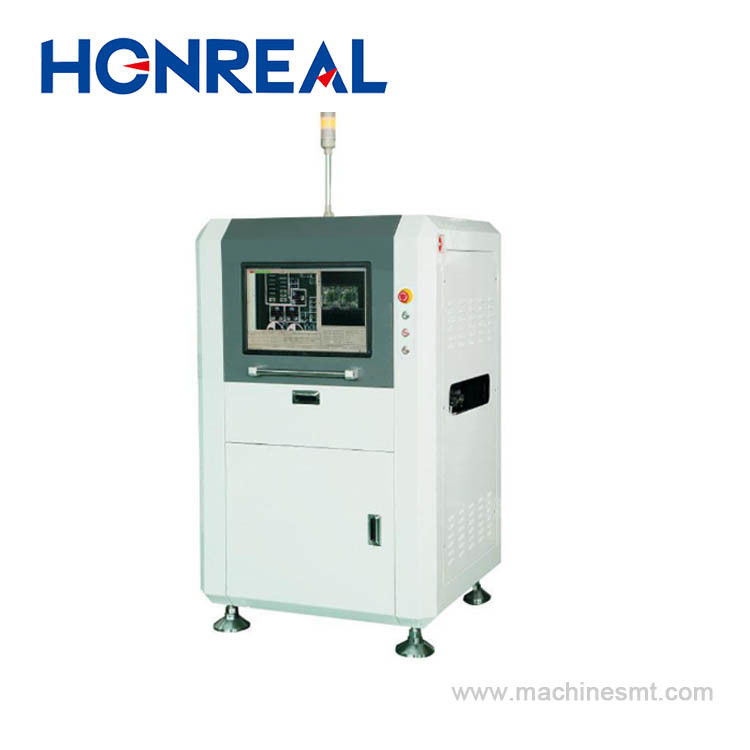

Online SMT AOI Inspection Machine Automatic for Optical Inspection

1set
MOQ
USD 23000-28000 Per Set
Price
Online SMT AOI Inspection Machine Automatic for Optical Inspection
Features Gallery Product Description Request A Quote
Features
Specifications
Camera: CCD Colorful Camera
Width Adjustment: Automatically
PCB Size: 20 Mm × 20 Mm To 360 Mm X 400 Mm
Minimum Parts: 01005 Chip
Accurate Location: <8 μm
Movement Speed: 830 Mm/SEC (MAX)
Display: 22 " Display
Machine Dimension: L980mm×980mm×1600 Mm
Highlight:

Online AOI Inspection Machine

,

SMT AOI Inspection Machine
Basic Infomation
Place of Origin: China
Brand Name: HONREAL
Certification: CE ISO
Model Number: H800
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 15Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Product Description

Online Smt Aoi Machines Automatic Optical Inspection System Aoi Equipment



Features:
1. HD color global exposure digital camera speed increase 30%.
2. High depth of field telecentric lens, which can measure the solder joints on the side of high components.
3. Support the detection of smt front, back and dip station.
4. Support 0201 and 01005 packaged component inspection.
5. CAD data import, automatic linking component library, automatic color picking.
6. True non-stop offline programming and program update.
7. MES data docking to realize intelligent factory.
8. Support multi-line centralized management and remote service.



H800​ Technical parameter:

Category Project Specifications
Visual identity system
Inspection Using Multiple Algorithms Synthetically Such As Widm,Color Image Contrast Technology,Color Extracting Technology, Similarity, Two-Value Handling Technology ,Ocr/Ocv And So On.
Camera 5 million Color Ccd Camera: 10um/15um/18um/20um/25um

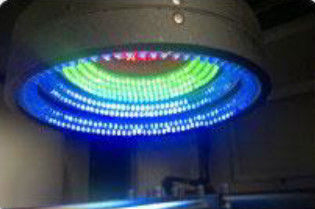

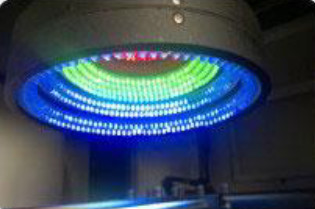

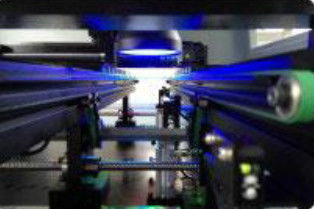

Light source Ring-shaped three-dimensional multi-channel colored light, choose RGB/RGBW/RGBR/RWBR depending on the application
Image processing speed 0201 components <7.6 ms
Per-Image Time 220～450ms

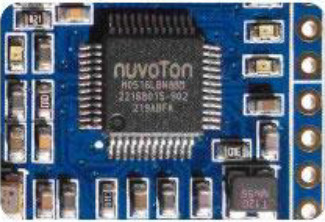

Testing content Paste Printing Defects Misaligned, Overflow, Insufficient, Pasting Open, Stain
Component Defects Missing, Misaligned, Skewed, Tombstone, Billboard, Overtured, Reversed Polarity, Wrong, Damaged
Solder Defects Overflow, Insufficient, Short Solder, Stain
Wave Soldering Inspect Overflow, insufficient, short, Excess Solder, solder void
Mechanism system
PCB size 20 mm × 20 mm to 400mm x 360 mm (Can Make Bigger Size According To Clients’ Demands)
PCB Conveyor Left to right (Optional, right to left),PCB fixing: bottom-up, Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Conveyor clearance: 900±20mm
PCB thickness 0.3 mm ~5.0 mm
PCB Warp Tolerance <5 mm
Component Clearance Top<35mm,Bottom<35mm
Minimum Space Parts 01005chip & 0.3mmpitch

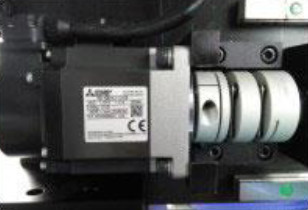

X,Y platform Driver AC Server
Accurate location <8um
Movement speed 830 mm/SEC (MAX)
Software system
Operating system Microsoft Windows 7 X64
Controlling & Recognizing characteristics Widm, Study Ok Template, Automatically Set Template Imaging, Identify Data And Error Numerical Value
operation Graphic Programming, Take Along With Chip Library And Get a Inspection Frame According With Chip Shape, Aureate Position, Micron Adjust, And Easy Programming
Network Communication port SMEMA,
Operation Graphic programming, Chinese, English
Control system
Computer host CPU:Intel E3, Memory:16GB, Harddisk:1TB
Display 22 "LED display
Other parameters
Machine dimension(L*W*H) L980mm×980mm×1600 mm
Weight About 600 kg
Power AC220v, 10%, Single Phase 5a 50/60hz, Power Consumption 600w
