Auto Visual AOI Inspection Machine Equipment Electric Button Controlled

1set

MOQ

Negotiable

Price

Auto Visual AOI Inspection Machine Equipment Electric Button Controlled

Features Gallery Product Description Request A Quote

Features

Specifications

Width Adjustment: Controlled By Electric Button

Camera: Sony CCD Colorful Camera

PCB Size: 25 Mm × 25 Mm To 350 Mm X 450 Mm

Minimum Parts: 01005 Chip

Accurate Location: <8 μm

Movement Speed: 830 Mm/SEC (MAX)

Display: 22 "LED Display

Mechanical Shape Dimension(L*W*H): L970*W1070*H1450 (MM)

High Light:

Auto AOI Inspection Machine

,

AOI Inspection Machine Button Controlled

,

Visual aoi inspection equipment

Basic Infomation

Place of Origin: China

Brand Name: HONREAL

Certification: CE ISO

Model Number: H920

Payment & Shipping Terms

Packaging Details: Woodencase

Delivery Time: 15Work Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100sets/month

Gallery

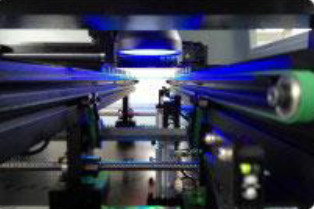

Auto Visual AOI Inspection Machine Equipment Electric Button Controlled

Product Description

Aoi Inspection Systems Auto Visual Inspection Machine Auto Optical Inspection Machine

Product Feature:

Suitable for AOI inspection of high-end electronic products in SMT production line, minimum inspection of 0201 parts; faster debugging speed and editing speed;
Smart camera barcode recognition system (can recognize one-dimensional code and two-dimensional code)
Simple programming and debug mode, easy to operate.
Product Software:

Simple test results report: The test report contains some contents of spc, according to the real test case shows the ratio ofNG and distribution, real-times show the quantity of the sting boards, parts per million, false-operatorrate and other relevant information,so the operatoris easy to know the detail of the production line.
Professional spc system: Professional spc analysis report to macroscopic readjustment and control the production line, reduce the incidence and raise productivity.

Parameter configuration:

Category

Project

Specifications

Visual identity system

Inspection	Using Multiple Algorithms Synthetically Such As Widm,Color Image Contrast Technology,Color Extracting Technology, Similarity, Two-Value Handling Technology ,Ocr/Ocv And So On.
Camera	5 million Color Ccd Camera: 10um/15um/18um/20um/25um

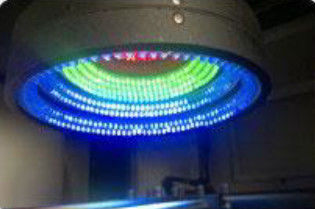

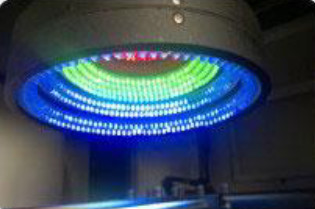

Light source	Ring-shaped three-dimensional multi-channel colored light, choose RGB/RGBW/RGBR/RWBR depending on the application
Image processing speed	0201 components	<10 ms
	Per-Image Time	<170ms
Testing content	Paste Printig Defects	Misaligned, Overflow, Insufficient, Pasting Open, Stain
	Component Defects	Missing, Misaligned, Skewed, Tombstone, Billboard, Overtumed, Reversed Polarty, Wrong, Damaged
	Solder Defects	Overflow, Insufficient, Short Solder, Stain
Anti Static Measures	Anti Static Electric Outlet, Anti Static Wreath

Mechanism system

PCB size	20 mm × 20 mm to 450mm x 350 mm (Can Make Bigger Size According To Clients’ Demands)
PCB thickness	0.3 mm ~5.0 mm
PCB Warp Tolerance	<5 mm
Component Clearance	Top<35mm,Bottom<75mm
Minimum Space Parts	01005chip & 0.3mmpitch
X,Y platform	Driver	AC Serverv
	Accurate location	<8um
	Movement speed	830 mm/SEC (MAX)

Software system

Operating system	Windows 7 64-bit
Controlling & Recognizing	characteristics	Widm, Study Ok Template, Automatically Set Template Imaging, Identify Data And Error Numerical Value
Controlling & Recognizing	operation	Graphic Programming, Take Along With Chip Library And Get a Inspection Frame According With Chip Shape, Aureate Position, Micron Adjust, And Easy Programming
Mark	Mark Numbers	0 – 2marks Can Be Chosen
Mark	Recognising Speed	0.5s/Pcs

Control system

Computer host	CPU:Intel E3, Memory:16GB, Harddisk:1TB
Display	22 "LED display

Other parameters

Machine dimension(LWH)	L1120mm×900mm×1400 mm
Weight	About 480 kg
Power	AC220v, 10%, Single Phase 5a 50/60hz, Power Consumption 600w

Photo Show

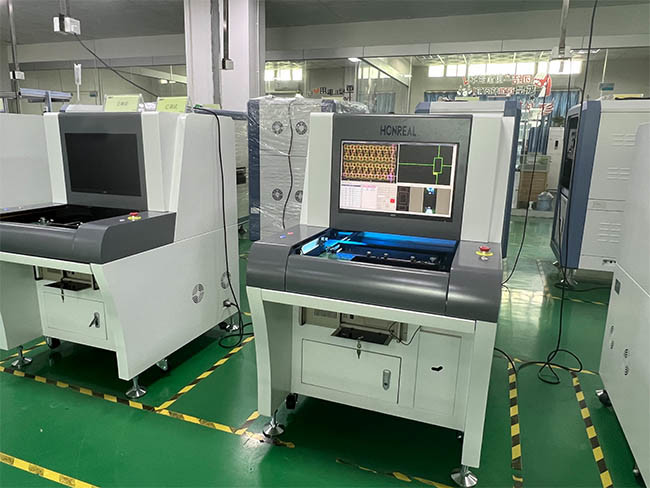

Auto Visual AOI Inspection Machine Equipment Electric Button Controlled 0
