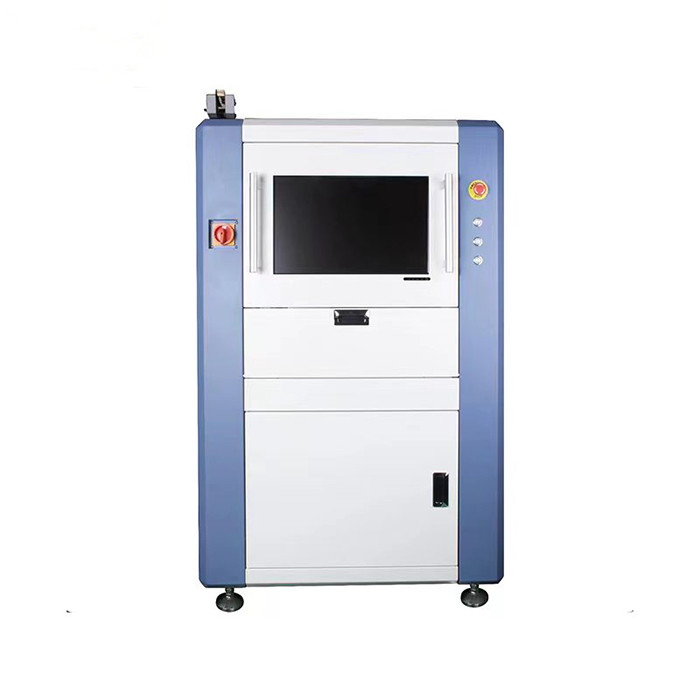

CCD Camera Automatic Optical Inspection System Single Rail AOI SMT Inspection Machine

1.5 million pix full-color high speed digital camera (12/20 million pix optional), ensure high efficiency, high quality and high stability of image shooting, restore the real and natural image effect.

2.Windows10 x64 operation system, high data processing speed.

3.GPU independent hardware processing images, while CPU processing non-image computing, so as to balance the efficiency of computer system.

4.Thousands of sales, advanced and upgraded configuration and continuous technological innovation based on 6 series AOI products, high stability and efficiency.

5.Optional telecentric lens with high resolution, unique parallel light design, PCBA tilted or tall components can be distinctly displayed.

6.Intelligent and fast programming, intelligent algorithm, no need of manual intervention, easy to learn,  high detection rate, low error rate.

7.Flexible and mobile maintenance station and SPC checking terminal.

Mobile devices under wireless network, working station can be set up flexibly on workshop in one to many mode: the detection data of multiple online machines can be checked through one maintenance workstation, the defect details are clearly reported. SQL data system are well-defined, SPC report with pie chat and histogram, very convenient for customer process analysis and quality improvement.

8.Convenient and practical offline programming software OLP. PCB genuine image can be taken in real time and stored in full memory, ensure high efficient programming under circumstances of either online or offline.

Specifications: H900
