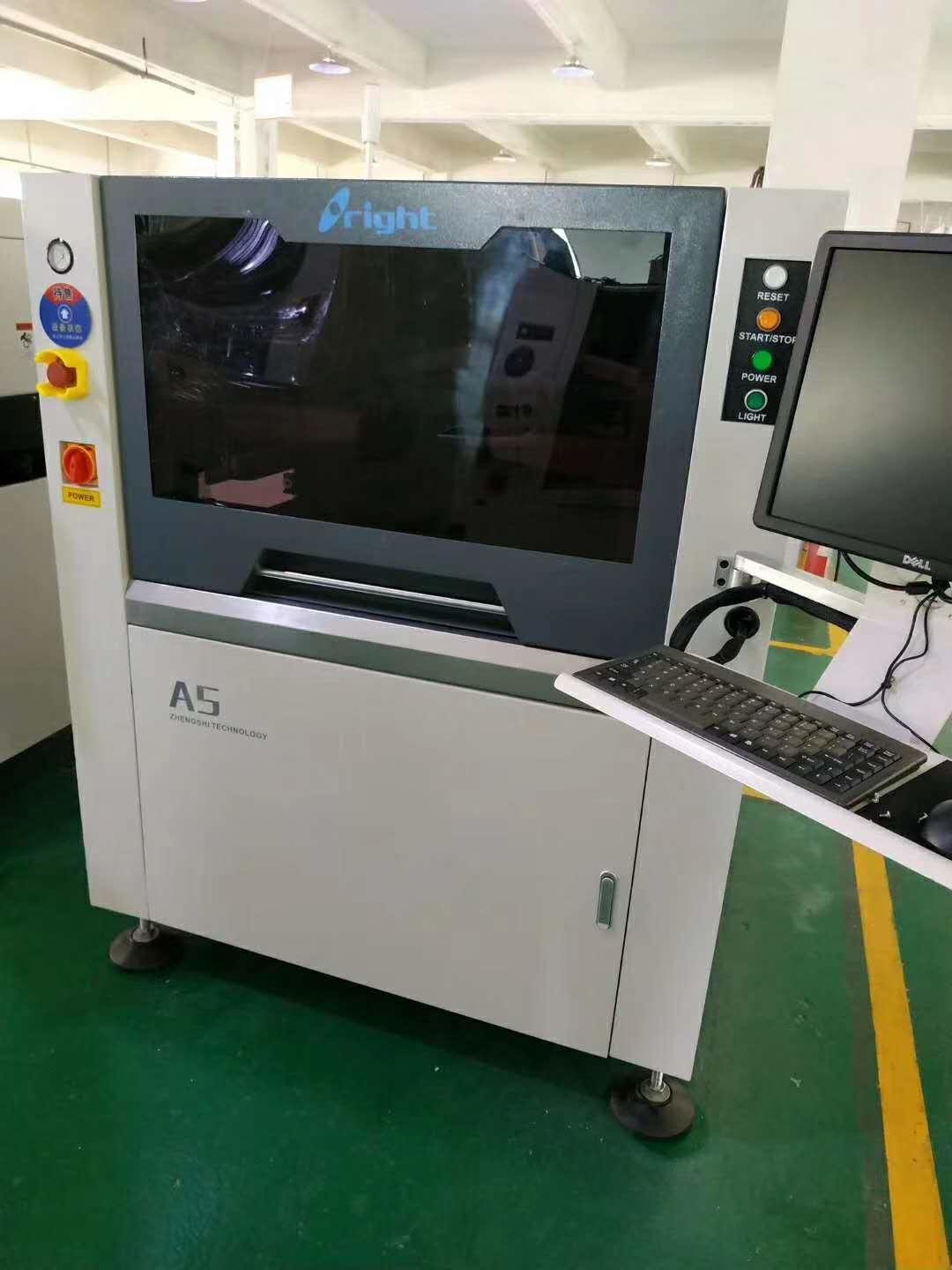

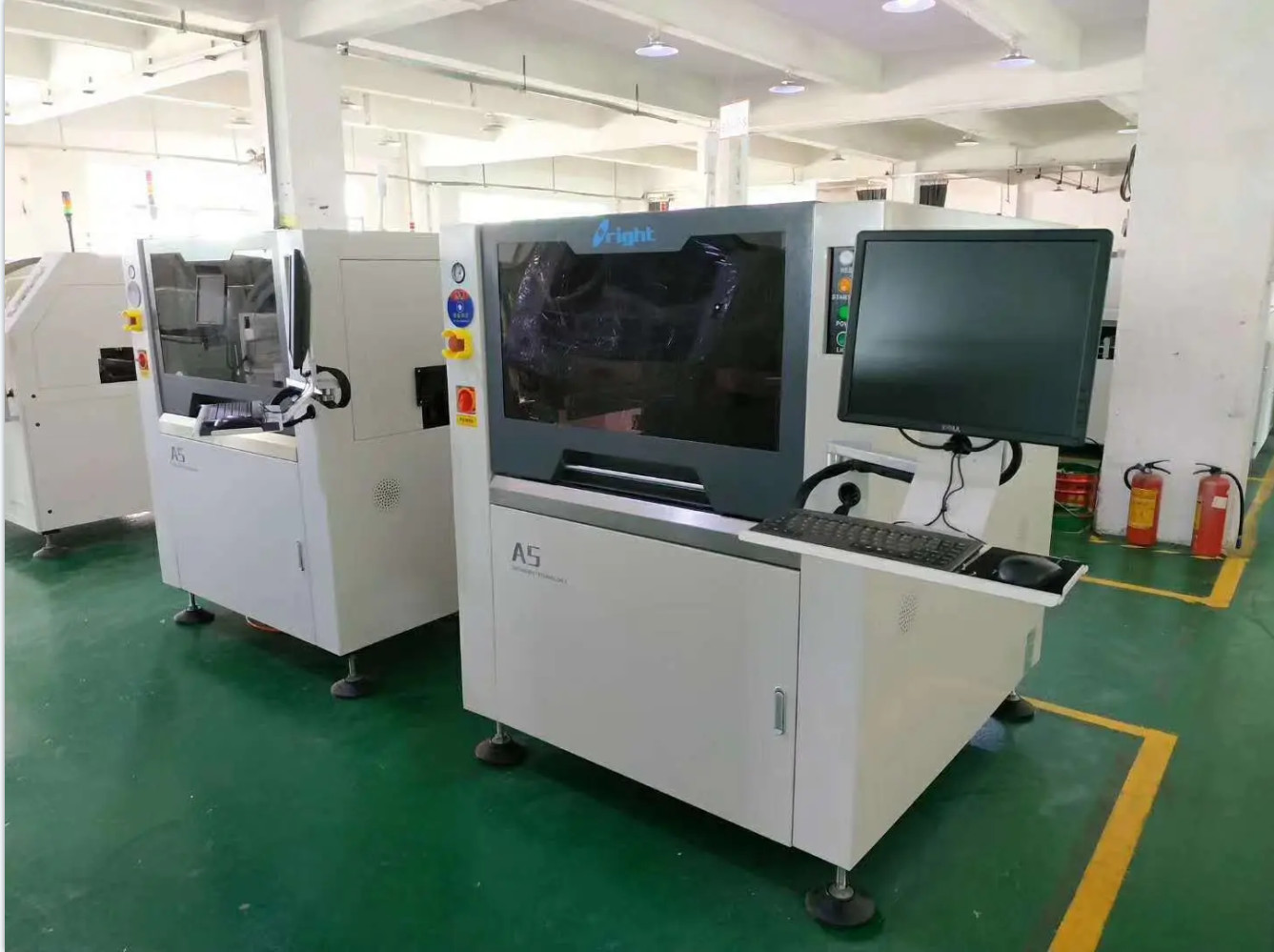

Full Automatic Pcb Stencil Printer Automatic Stencil Printing Machine A5
Product Description:
Humanized design;
Wide range of application, strong versatility;
Unique spray type automatic cleaning system;
Highly efficient and energy-saving wipe paper-saving structure;
Unique image processing system;
Intelligent printing production mode;
Printing range:400*340mm/510*340mm;
Adopt the international common UVW three-axis linkage platform;
Machine size:1220X1355X1500mm;
Machine options: Automatic tin adding function, automatic stencil plugging detection function, automatic dispensing function, squeegee pressure feedback function;
Automatic MSE/SPI inline function Automatic temperature and humidity control function.
Equipment Parameter:
|
Screen Frames: |
370*370mm~737*737mm |
|
Thinkness: |
25~40mm |
|
PCB size(min~max) |
50*50~400*340mm |
|
PCB thickness |
0.4~6mm |
|
PCB Warpage |
＜1% |
|
Transport Height |
900±40mm |
|
Transport direction |
Left to right or right to left |
|
Transport Speed |
Max 1500mm/s Programmable |
|
Print head |
Two independent motorised printheads |
|
Squeegee speed |
6~200mm/sec |
|
Squeegee Angle |
60°/55°/45° |
|
Squeegee type |
Stainless steel (Standard) Plastic |
|
Stencil Separation spped |
0.1~20mm/sec Programmable |
|
Cleaning System |
Dry/Wet/Vacuum(Programmable) |
|
Table Adjustment ranges |
X:±10mm Y:±10mm |
|
CCD FOV |
8*6mm |
|
Solder Paste Inspection |
2D Inspection Standard |
|
Repeat Position Accuracy |
±0.025mm |
|
Cycle Time |
＜7s(Exclud Printin&Cleaning) |
|
Product Changeover |
＜5min |
|
Air Required |
4.5~6kg/cm2 |
|
Machine weight |
Approx 1000kgs |
|
Machine Dimensions |
1220*1355*1500 |
