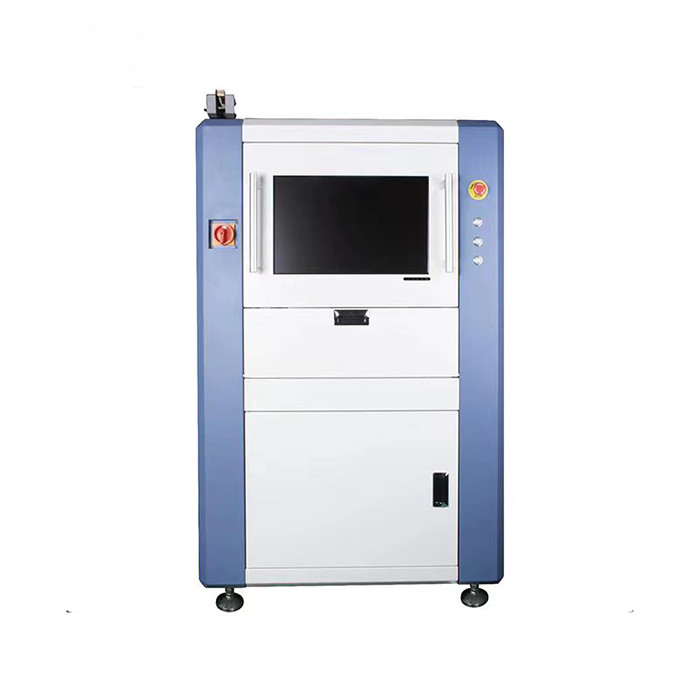

Automatic Optical Inspection AOI Pcb Machine On Line System Equipment

1.Various vector image algorithms to get the best inspection capability

The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction (RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc… More than 30 kinds of the most advanced algorithms.

2. 5.0 Mp industry cameras

With a high color reproduction, collocation a high-resolution telecentric Lens, high NG identification, provide high-definition image output for the AOI
3.Import Control System

All major components are used internationally renowned brands. In the premise of ensuring the stability and accuracy of the movement equipment, with high service life and low failure rate.
The entire PCB match capability can detect extra parts at any location.
The entire PCB match function
High frame rate industrial cameras with telecentric lens, high-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software’s entire board matching algorithm, can be used detect extra parts, foreign matter, scratches and other information on the PCB.

4.Multi machines one operator, intelligent communication
Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator.

Specifications: H900
