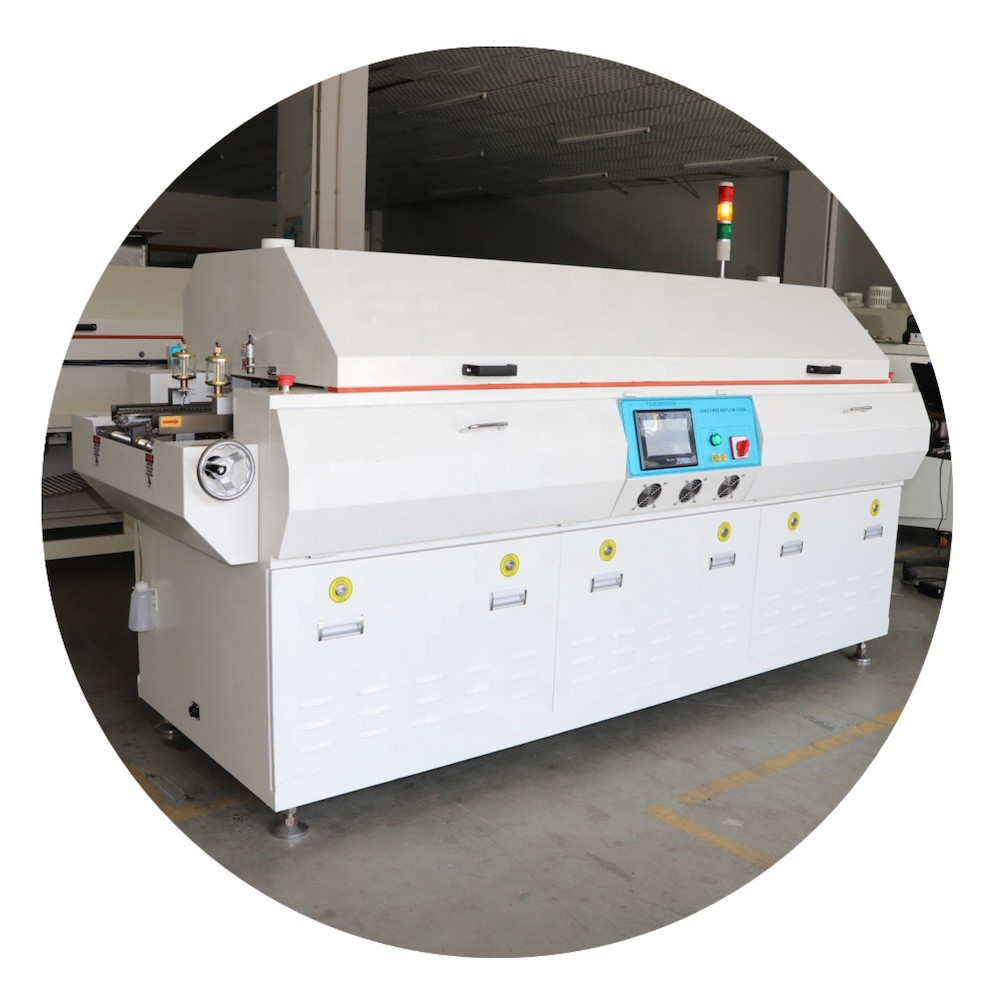

6 Zone SMT Reflow Soldering Oven for PCB Production
  • name
  • name

6 Zone SMT Reflow Soldering Oven for PCB Production

MOQ: 1
Price: USD 9000-11000 Per Set
Standard Packaging: Export wooden box packaging
Delivery Period: 20 Days
Payment Method: T/T
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honreal
Certification
CE
Model Number
HRE-640
Heating Zones:
6 Zones
Heating Tunnel:
1938mm
Dimension:
L3571*W1200*H1450
Rising Time:
15 Mins
Controlling Type:
Touch Screen And PLC
Temperature Accurancy:
±1 ℃
Max PCB Width:
400mm
Mesh Belt Width:
450mm
Highlight:

6 Zones SMT Reflow Soldering Machine

,

SMT Reflow Soldering Machine Lead Free

,

PCB lead free reflow oven

Product Description
6 Zones SMT Reflow Soldering Machine Oven Lead Free For PCB Production Line
Key Specifications
Attribute Value
Heating zones 6 zones
Heating tunnel 1938mm
Dimension L3571 × W1200 × H1450
Rising time 15 mins
Controlling type Touch screen and PLC
Temperature accuracy ±1℃
Max PCB width 400mm
Mesh belt width 450mm
Product Overview

This 6-zone SMT lead-free reflow soldering oven features advanced PLC+PID closed-loop control for precise temperature management and repeatable profiles. Designed for PCB production lines, it combines efficiency with reliability.

Key Features
  • Streamlined design with high-precision temperature control (±1℃ accuracy)
  • Stores 50 temperature parameter groups with 2 additional profile testing ports
  • Premium components including Schneider breakers and Omron relays
  • Specially designed CE-certified blower for lead-free operation
  • Easy-access design for cleaning and maintenance
  • Stainless steel inner tunnel resistant to high temperatures
  • Forced hot air convection in all zones
  • Hardened rail stainless steel mesh belt with SMEMA compatibility
  • Modular design reduces maintenance time and costs
Technical Parameters
Parameter Specification
Model HRM-640
Heating zones Upper 6 zones, Bottom 6 zones
Net weight ≈1100Kg
Power consumption ≈8-8KW
Temperature range Ambient to 350℃
Temperature uniformity ±2℃
Cooling system 1 cooling zone with air cooler
Conveyor speed 0-1000mm/min
Power supply 380V, 3PH, 50Hz
Control System Features
6 Zone SMT Reflow Soldering Oven for PCB Production 0 6 Zone SMT Reflow Soldering Oven for PCB Production 1 6 Zone SMT Reflow Soldering Oven for PCB Production 2
  • Full English interface with intuitive operation
  • Stores 50+ parameter groups with pre-set leaded/lead-free profiles
  • Unique program design reduces startup power consumption
  • Color touchscreen with PLC controller for stable operation
Temperature Standards
6 Zone SMT Reflow Soldering Oven for PCB Production 3 6 Zone SMT Reflow Soldering Oven for PCB Production 4 6 Zone SMT Reflow Soldering Oven for PCB Production 5 6 Zone SMT Reflow Soldering Oven for PCB Production 6
  • Calibrated to meet IPC standards for both leaded and lead-free soldering
  • Peak temperature exceeds solder paste melting point by 20-30℃
  • Pre-configured optimal temperature settings provided before shipment

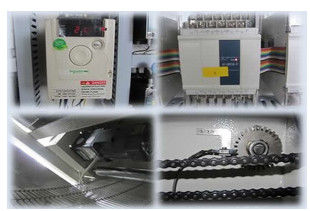

Electrical Components
6 Zone SMT Reflow Soldering Oven for PCB Production 7
Packaging & Clients
6 Zone SMT Reflow Soldering Oven for PCB Production 8 6 Zone SMT Reflow Soldering Oven for PCB Production 9 6 Zone SMT Reflow Soldering Oven for PCB Production 10
