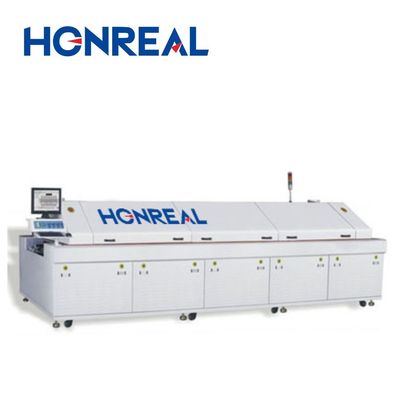

10 Zones Pcb Smd Reflow Oven Hot Air Convection SMT Reflow Soldering Machine
Features:
HR Series High End/Nitrogen Reflow Soldering Machine
| Machine | HR-10C |
| Heating zones | upper 10 zones |
| bottom 10 zones | |
| Heating tunnel | 3580mm |
| Dimension | L5500*1270*1450 |
| Net weight | about 1915Kg |
| General power | 54KW |
| Power consumption | Approx.10 KW |
| Rising time | 20 minutes |
| Controlling type | PC + PLC controlling |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---300℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±1.5 ℃ |
| Cooling | two cooling zones (top and bottom) |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Max PCB width | 350mm |
| PCB clearance | Top / Bottom 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-1800mm/min |
| Hook lift | Electrical screw pole |
| UP/Downstream communication | SMEMA |
| Power supply | 380v,3ph,50hz |

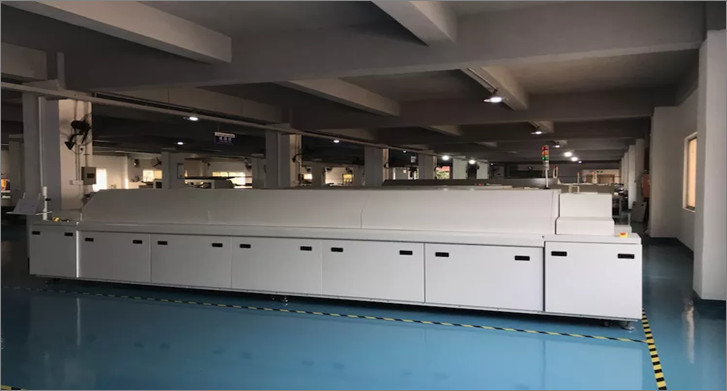

Dtails:
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
