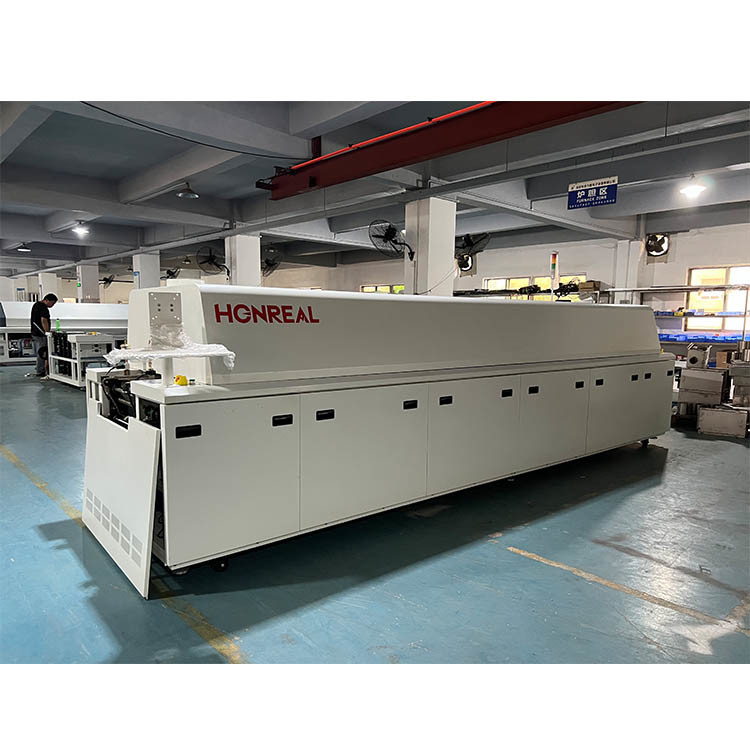

8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design
  • name
  • name
  • name

8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design

MOQ: 1set
Price: USD 14500-16000 Per Set
Standard Packaging: woodencase
Delivery Period: 20 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 50 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONREAL
Certification
CE ISO
Model Number
HR-8C
Dimensions:
L4900*1270*1450 Mm
Zones Constitute:
Upper8,bottom8, One Cooling Zones
Length Of Heating Zone:
2800mm
Exhaust Requirement:
25 M3/min X2 Vanes
Temperature Controlling:
PID Close-loop Control, SSR Drive
Temperature Range:
Ambient---300℃
Temperature Accurancy:
±1 ℃
Conveyor Method:
Mesh Belt And Chain Conveyor
Max PCB Width:
350mm
Conveyor Speed:
0-1800mm/min
Highlight:

Vacuum SMT Reflow Soldering Machine

,

SMT Reflow Soldering Machine

,

8 Zones solder reflow oven

Product Description

Vacuum Reflow Oven Smt Reflow Soldering Machine Solder Reflow Oven Equipment

Features:

HR Series High End/Nitrogen Reflow Soldering Machine

1. Modular design of temperature zone makes maintenance convenient and quick.
2. Self-extending guide rail design further prevents deformation from causing the board to fall off.
3. Segmented heating method saves energy and reduces power consumption.
4. One extended forced constant air cooling zone at the top and bottom
5. Flux recovery device meets environmental protection requirements
6. SMEMA communication enables automated operation mode
7. About 70% of the machine uses imported brand accessories to ensure durability and stability.



Technical Parameters:

Machine HR-8C
Heating zones Upper 8 zones
Bottom 8 zones
Heating tunnel 2800mm
Dimension L4900*1270*1450mm
Net weight About 1600Kg
General power 45KW
Power consumption Approx 8 KW
Rising time 20 minutes
Controlling type PC + PLC controlling
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---300℃
Temperature accurancy ±1 ℃
Temperature uniform ±1.5 ℃
Cooling 1 cooling zones (top and bottom)
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Max PCB width 350mm
PCB clearance Top / Bottom 30mm
Conveyor direction Left to right
Conveyor speed 0-1800mm/min
Hook lift Electrical screw pole
UP/Downstream communication SMEMA
Power supply 380v,3ph,50hz

Temperature zone part:

8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design 0

  • Small hot air circulation structure, hot air volume can be adjusted by computer.
  • Imported high temperature resistant wind motor with air volume up to 70CFM.
  • Extend the length of the temperature zone to 300mm/temperature zone
  • Nickel-chromium heating wire imported from Japan
  • 3mm thick electrolytic plate air distribution plate, uniform heat distribution
  • Segmented heating to reduce power consumption



Who We Are ?

Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.



8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design 1



8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design 2

Certification

8 Zones SMT Reflow Soldering Machine Oven Vacuum Modular Design 3


FAQ

Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.



Q:How is the training?

A:After buying our machines, your engineers can go to our company or it is so easy to operate

the machine according the training video and user manual,the user manual will come with the machine together.



Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.



Q: Is it hard to use these machines?

A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
