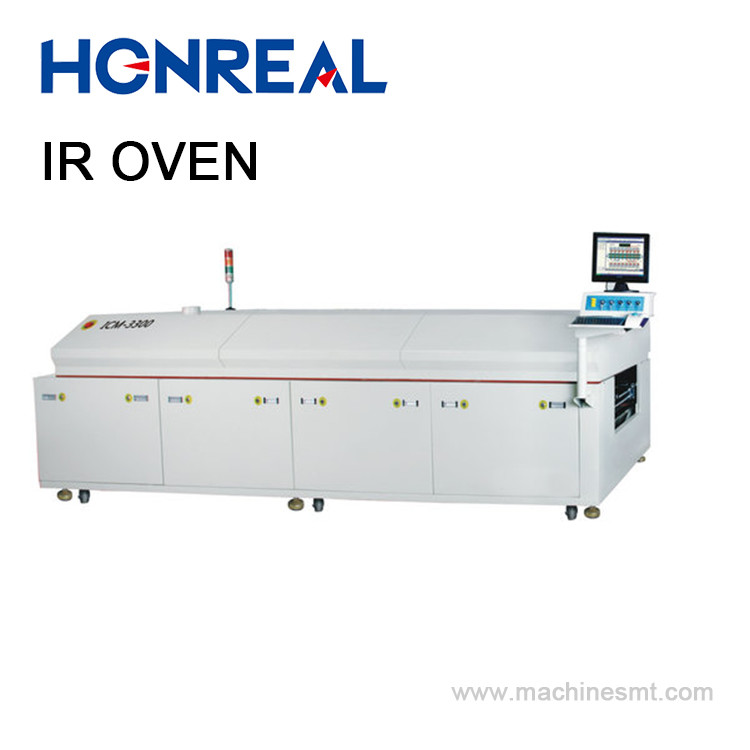

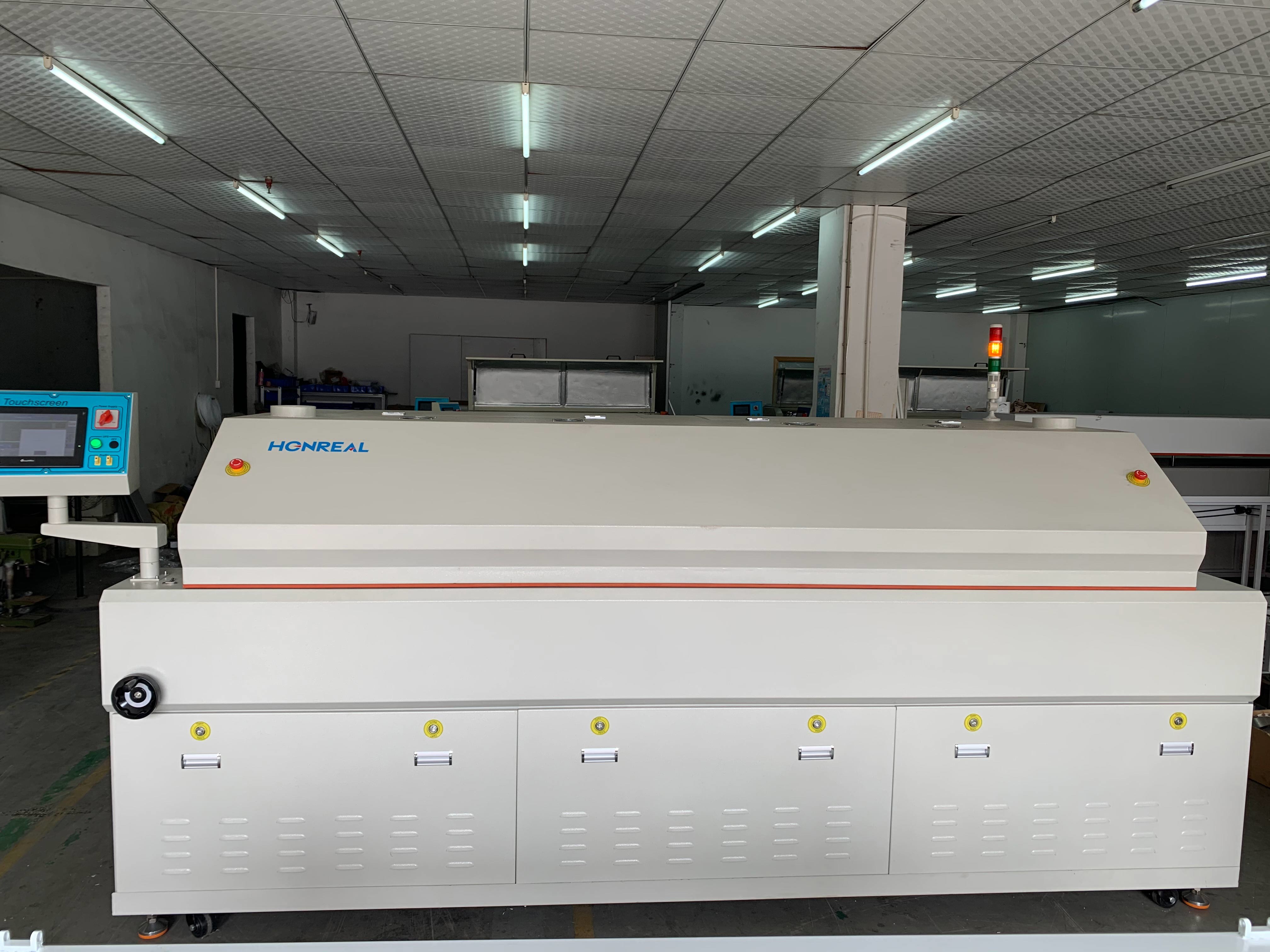

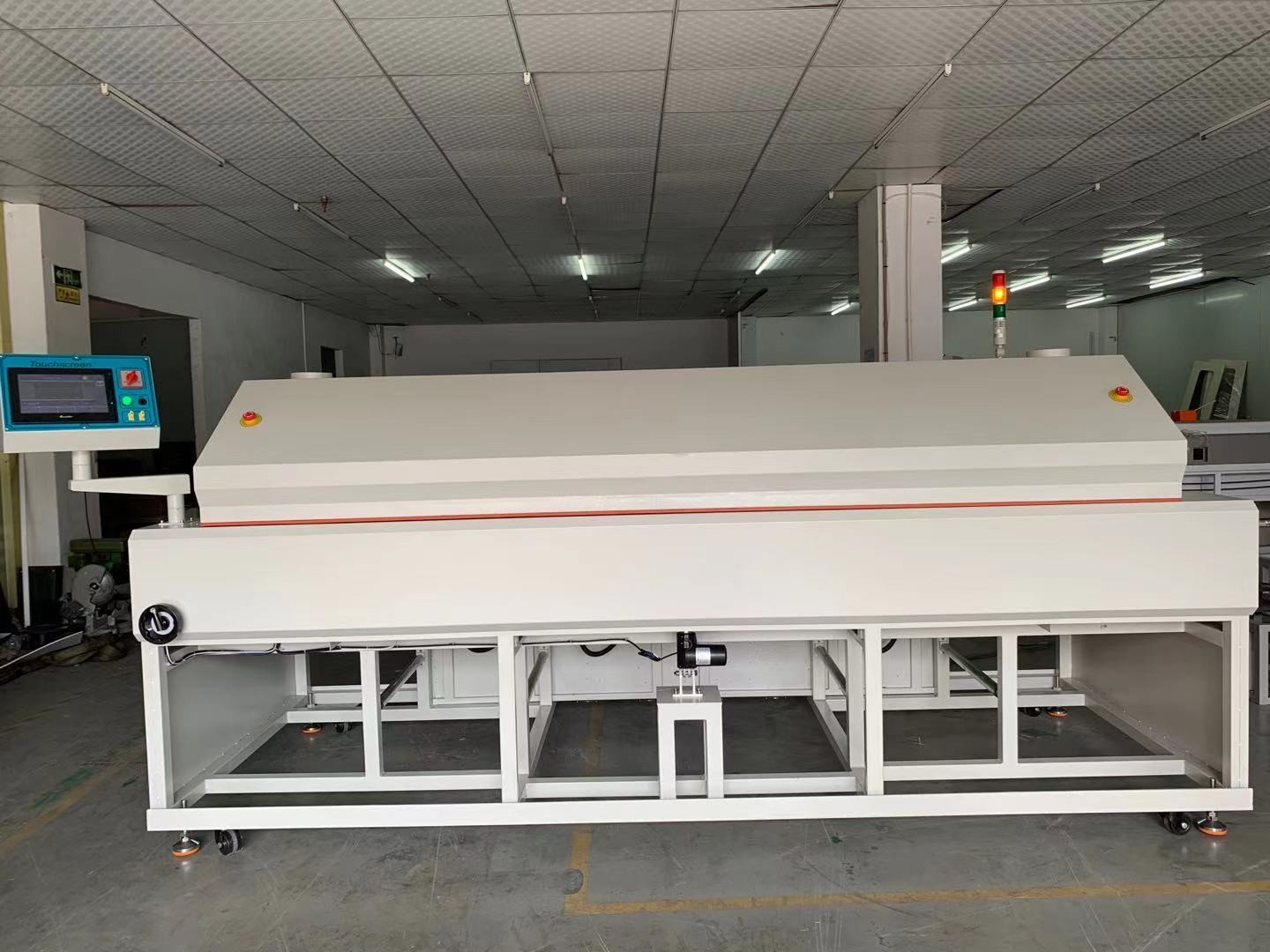

General of machine:
1.The in line curing machine (ICM Series) is idea for high volume curing production.They are easy to integate with different Conformal Coating machines.
2.Available in different lengths,they provide the flexibility to match your production requirements and feature robust construction and a streamlined appearance.
3.The oven is equipped with a unique downdraft exhaust design.Plenums below the conveyor rails,it will remove volatile organic compunds(VOC),which are typically found in comformal coating applications.This provides a safe operating environment when coupled to your external exhaust system
4.The upper cover can be lifted manually. So to maintain the heater easily.
Heating system:
1.The cure chamber achieves a thermally uniform atmosphere with special far infrared carbon silicon heater from Japan originally.
2.All the heaters can be adjusted height manually,so to get best heat performance for different products.
3.The inner tunnel of the oven is made of stainless steel which easy for cleaning.
4.Specially enlarged the heat-resistant layer to 100mm,prevent the heat lose effectively,so to save energy .
Electrical system:
1.PLC and color touch screen for controlling.It can store more than 50 groups of parameters in the touch screen.
2.PID for temperature controlling,temperature can be controlled under ±2℃.
3.Brand electrical component like Schneider (German) breaker,Omron (Japan) box breaker.It runs stable and lower noise.

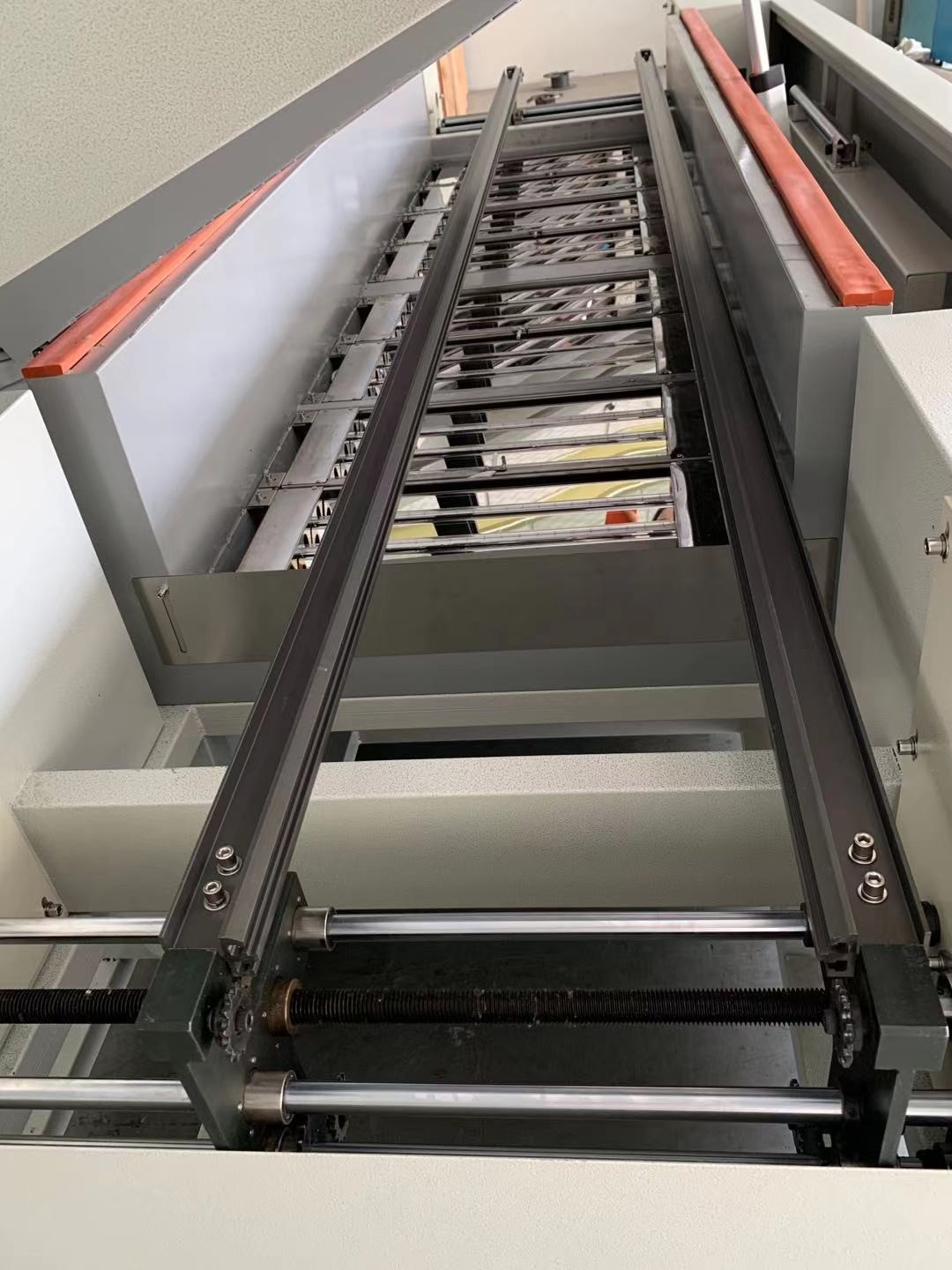

Conveyor system:
At entrance and exit there are plate we can adjust the height ,so to prevent heat lose from both end.
Fine pinch mesh belt conveyor system.It able to carrier 20Kg products.
Operating environment
1.Room temperature: The room temperature for this machine should be kept at 5~40℃ no matter the machine works or not.
2.Relative humidity: The relative humidity of the room for this series of machines should be kept at 20~95%.
3.Transportation and storage: This machine can be transported and stored at -25~55℃. It also can accept a temperature of 65℃ within 24 hours. During transportation, high humidity, vibration, pressure and mechanical shock should be avoided as possible as you can.
Site preparation for installation:
a: Please see Section 3.3 for machine dimensions.
b: Please place and use the machine in a clean and ventilated environment to prevent soldering quality from being impacted by dust.
c: Do not install the machine near any electric or magnetic interference source.
d: During installation, please make sure that the feeding end and the discharging end do not face straight any fans or windows.
e: Enough space should be reserved at the rear side of the machine for its repair and maintenance and over the oven for opening top cover and installing ventilation pipes (The diameters of the two exhausting outlets at the two ends of this machine are Φ125mm).
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
