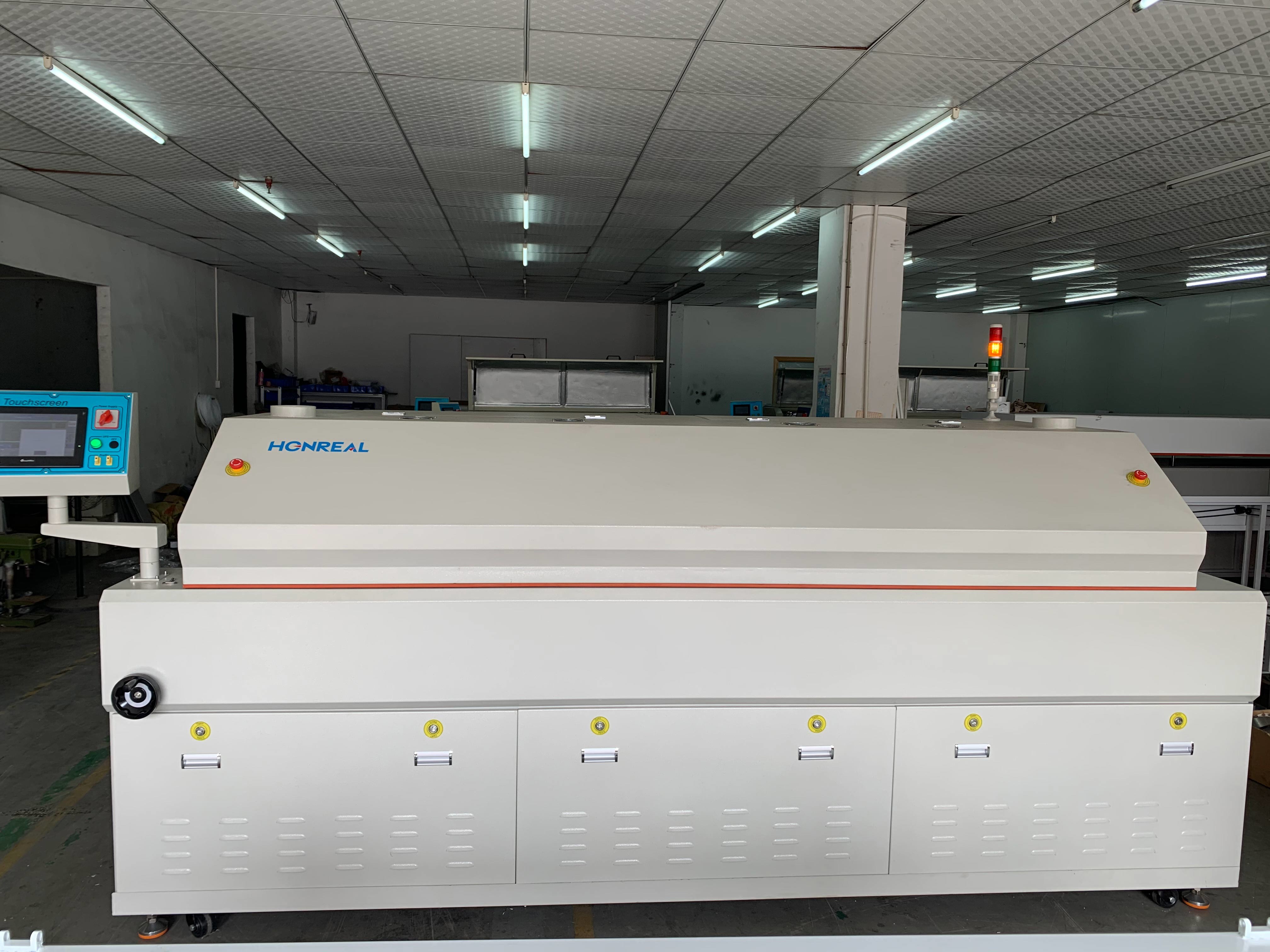

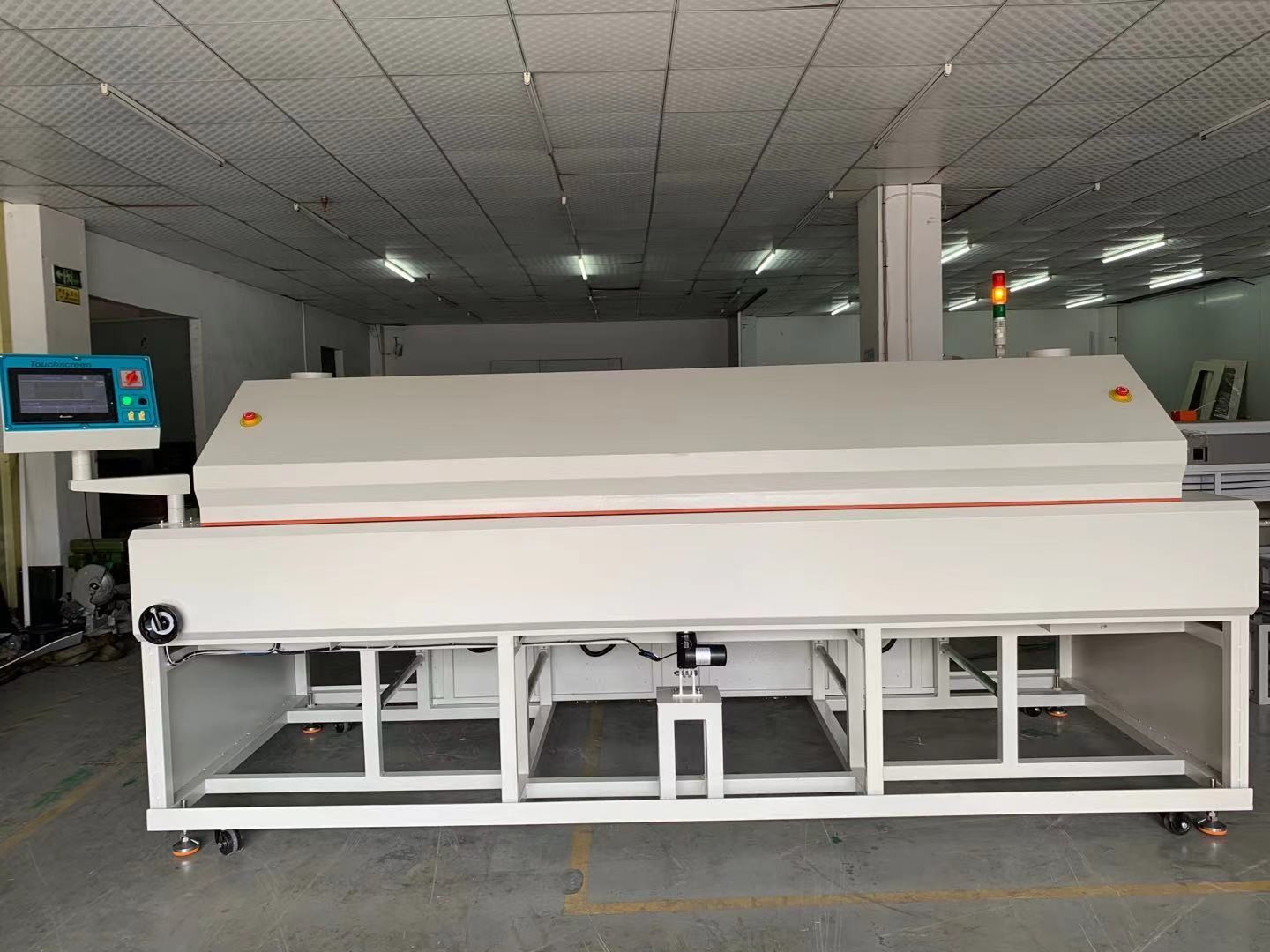

General of machine:
1.The in line curing machine (ICM Series) is idea for high volume curing production.They are easy to integate with different Conformal Coating machines.
2.Available in different lengths,they provide the flexibility to match your production requirements and feature robust construction and a streamlined appearance.
3.The oven is equipped with a unique downdraft exhaust design.Plenums below the conveyor rails,it will remove volatile organic compunds(VOC),which are typically found in comformal coating applications.This provides a safe operating environment when coupled to your external exhaust system
4.The upper cover can be lifted manually. So to maintain the heater easily.
Heating system:
1.The cure chamber achieves a thermally uniform atmosphere with special far infrared carbon silicon heater from Japan originally.
2.All the heaters can be adjusted height manually,so to get best heat performance for different products.
3.The inner tunnel of the oven is made of stainless steel which easy for cleaning.
4.Specially enlarged the heat-resistant layer to 100mm,prevent the heat lose effectively,so to save energy .

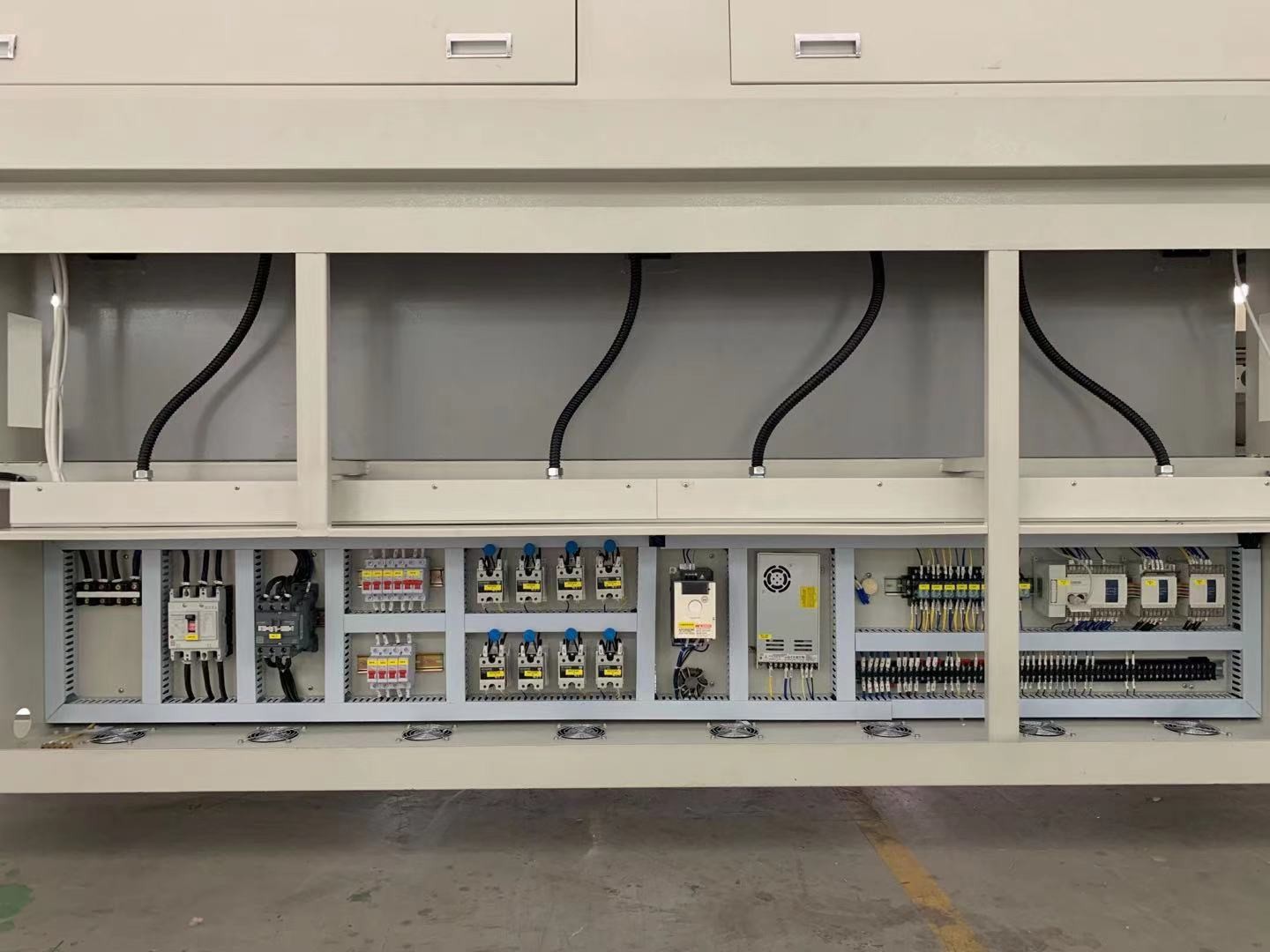

Electrical system:
1.PLC and color touch screen for controlling.It can store more than 50 groups of parameters in the touch screen.
2.PID for temperature controlling,temperature can be controlled under ±2℃.
3.Brand electrical component like Schneider (German) breaker,Omron (Japan) box breaker.It runs stable and lower noise.

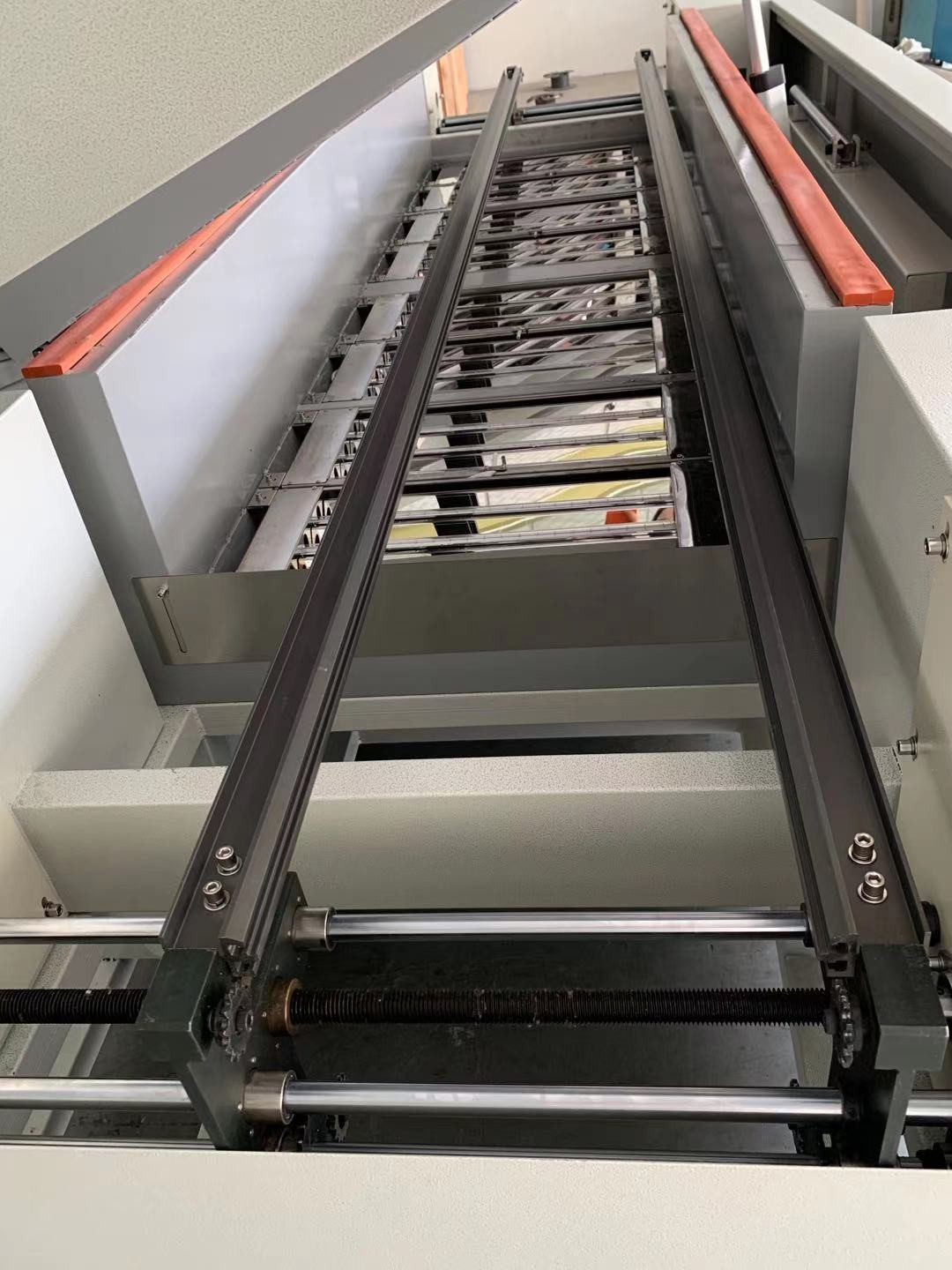

Conveyor system:
At entrance and exit there are plate we can adjust the height ,so to prevent heat lose from both end.
Fine pinch mesh belt conveyor system.It able to carrier 20Kg products.
Preparation before starting the machine:
1. Check if the rated voltage and current of the power source can meet requirements and if it is a three-phase 4-line power supply.
2. Check if main power is already connected to the machine.
3. Check if machine is earthed properly.
4. Check if any foreign objects are left within the electrical cabinet and all the sockets can work properly within the electrical cabinet.
5. Check if all the emergency stop switches at both feeding and discharging ends are ejected to their normal positions.
6. Make sure that the exhausting pipes at both feeding and discharging ends of the curing machines equipment are connected flexibly with the main ventilation pipes.
7. Check if all the roller bearing seats are lubricated properly.
8. Check if conveyer chains come off the guide rails within the chamber.
9. Check if all the fastening screws for the sprockets and gears at both feeding and discharging ends of the conveyer system are turned tight.
10. Check if chains can run normally and make sure that they are not pressed or stuck, are engaged with all the sprockets properly and do not come off.
11. Clear and clean the chamber. Do not allow any object staying in the chamber other than the workpieces.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
