General of machine:

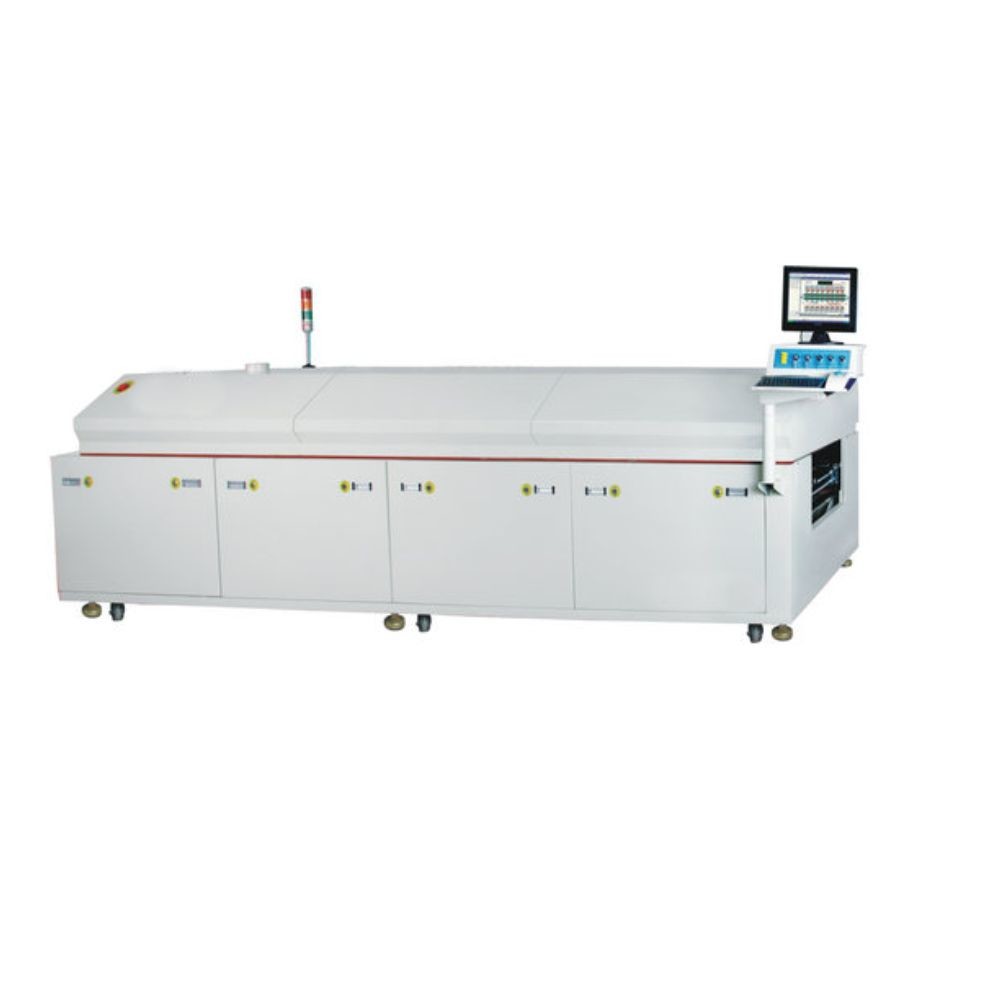

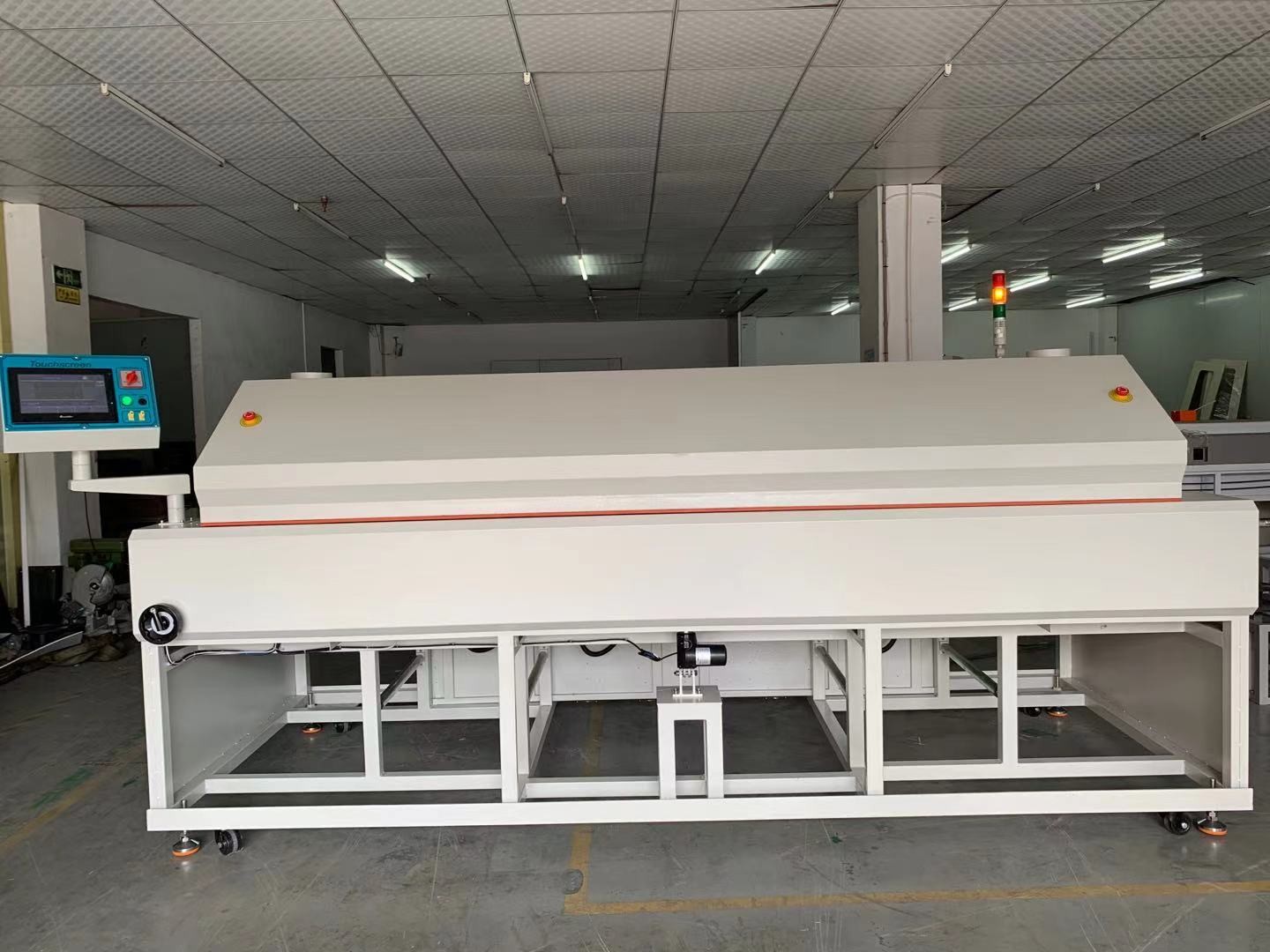

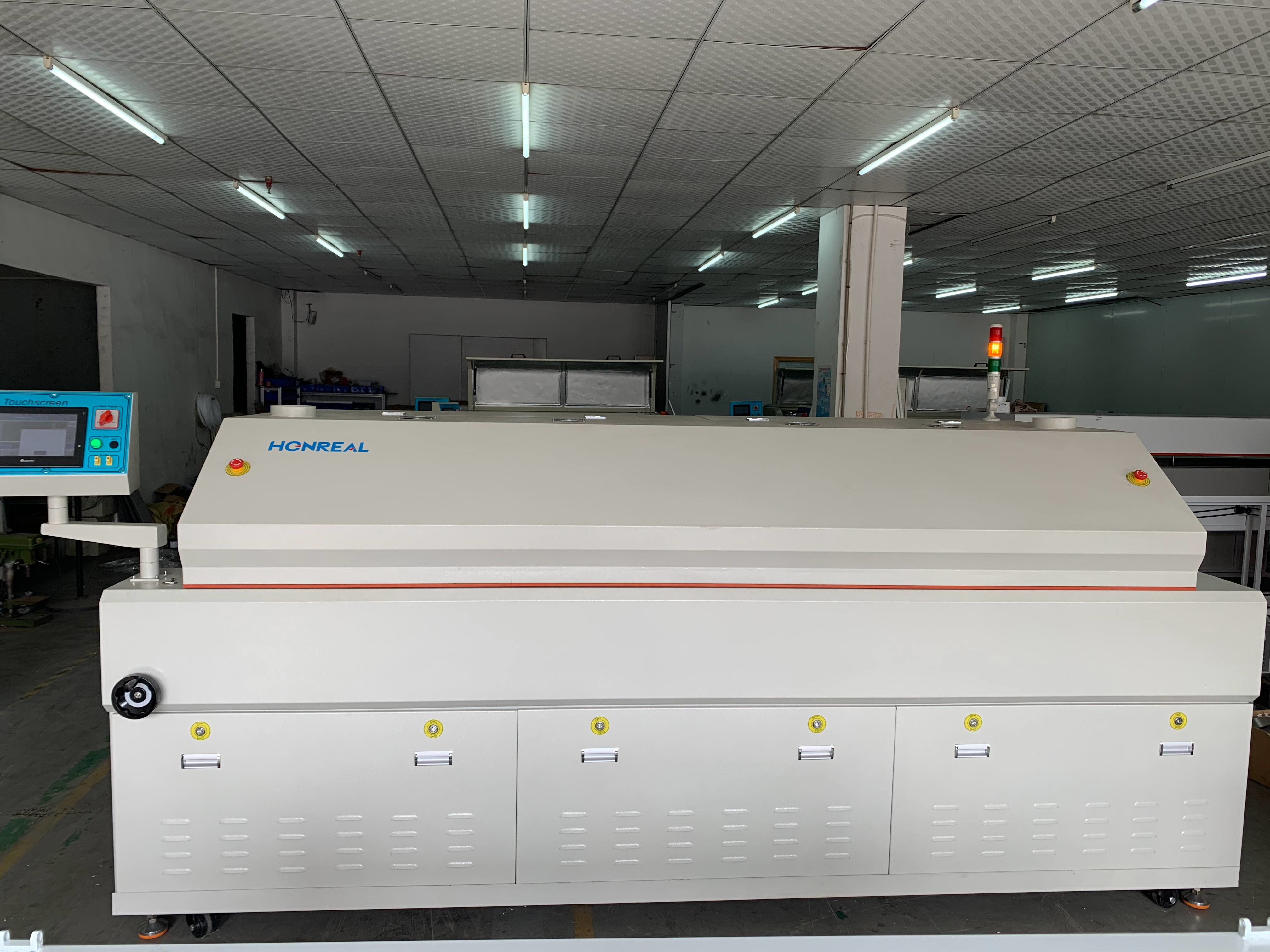

1.The in line curing machine (ICM Series) is idea for high volume curing production.They are easy to integate with different Conformal Coating machines.
2.Available in different lengths,they provide the flexibility to match your production requirements and feature robust construction and a streamlined appearance.
3.The oven is equipped with a unique downdraft exhaust design.Plenums below the conveyor rails,it will remove volatile organic compunds(VOC),which are typically found in comformal coating applications.This provides a safe operating environment when coupled to your external exhaust system
4.The upper cover can be lifted manually. So to maintain the heater easily.
Heating system:
1.The cure chamber achieves a thermally uniform atmosphere with special far infrared carbon silicon heater from Japan originally.
2.All the heaters can be adjusted height manually,so to get best heat performance for different products.
3.The inner tunnel of the oven is made of stainless steel which easy for cleaning.
4.Specially enlarged the heat-resistant layer to 100mm,prevent the heat lose effectively,so to save energy .

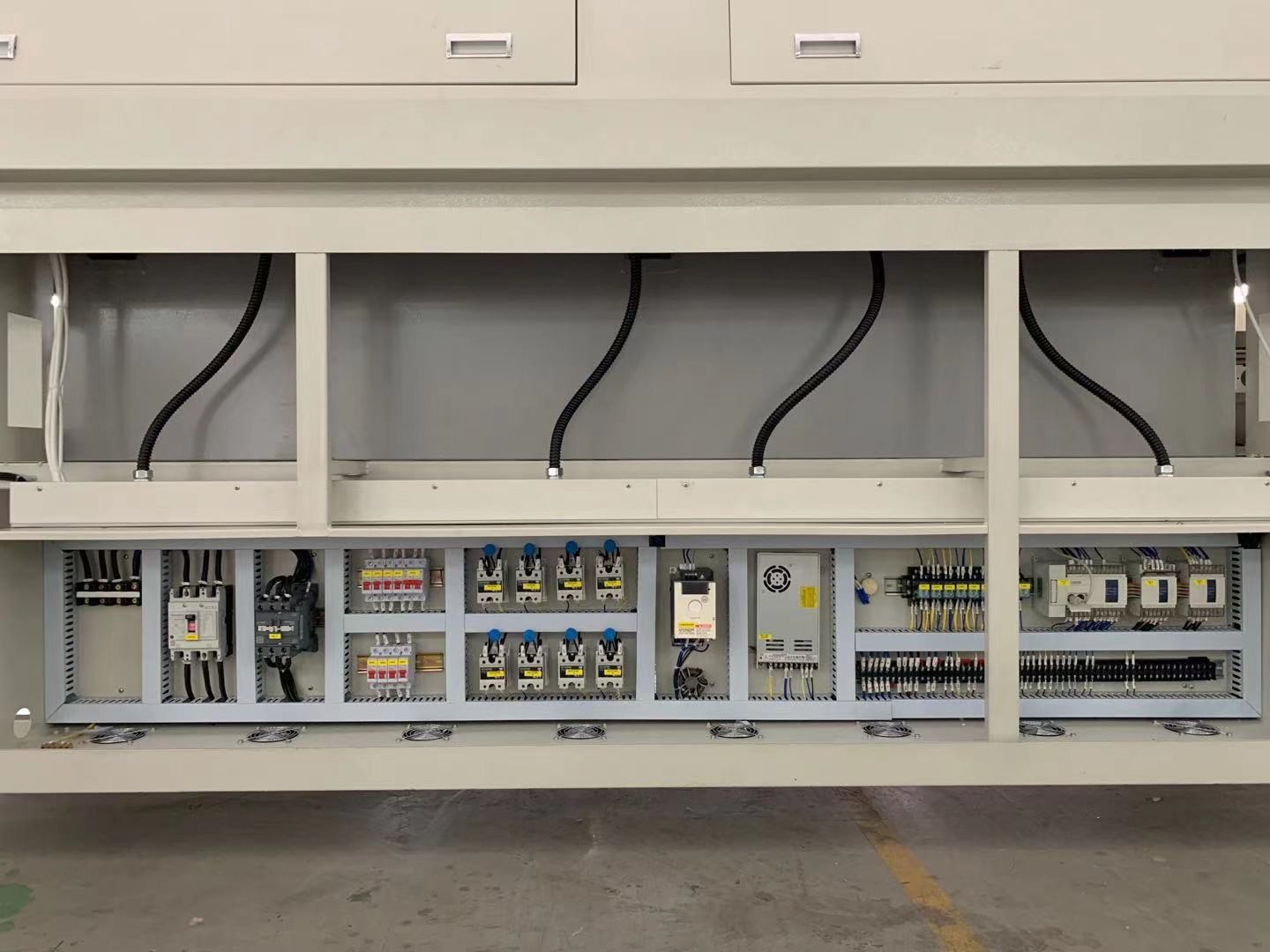

Electrical system:
1.PLC and color touch screen for controlling.It can store more than 50 groups of parameters in the touch screen.
2.PID for temperature controlling,temperature can be controlled under ±2℃.
3.Brand electrical component like Schneider (German) breaker,Omron (Japan) box breaker.It runs stable and lower noise.

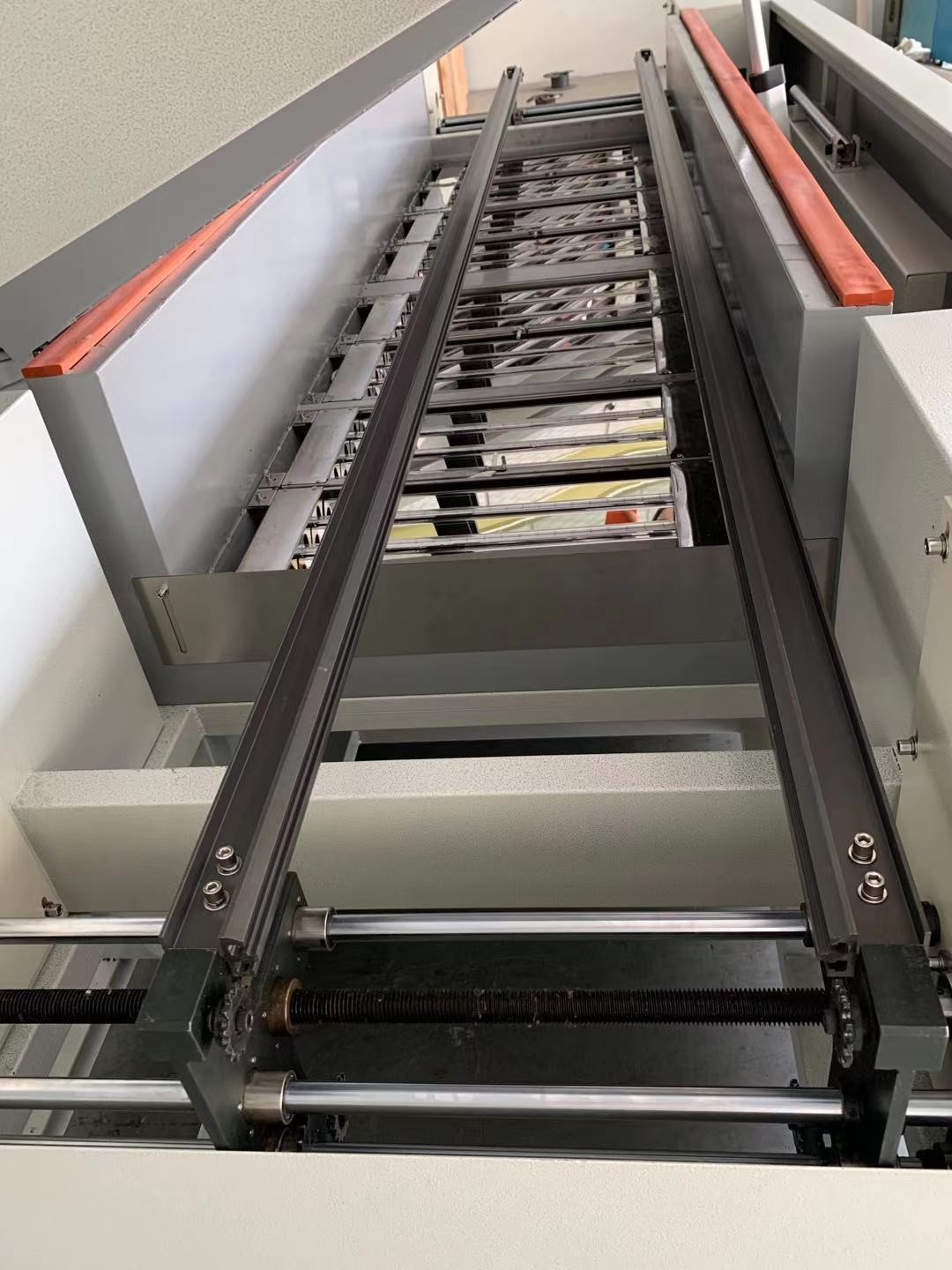

Conveyor system:
At entrance and exit there are plate we can adjust the height ,so to prevent heat lose from both end.
Fine pinch mesh belt conveyor system.It able to carrier 20Kg products.
Precautions:
1. curing machines equipment has two exhausting outlets with the same diameter of 125 mm３/min. These two exhausting outlets must be connected with factory’s main ventilation pipes and their exhaust capacity is usually 10m3-20m3/min. For easy regular maintenance, such exhausting outlets should be connected with factory’s main ventilation pipes in flexible insert-type connection.
2. If any emergency appear, just press the emergency stop switches at the two end of the machine.
3. If over-heat warning, over-loading warning, open-phase warning, chain slip warning, PCB fall warning and so on appear and emergency stop switches are activated, please remember to click the Reset button on your computer (An alert will appear at the lower left corner of your main interface for you to operate the Reset button).
4. Both plugs and sockets for temperature detection can not bear high heat. So every time when you finished your temperature detection, make sure to pull out the temperature detection cables from the chamber to prevent their deformation due to high heat.
5. Temperature set should not be lower than room temperature lest that the red indicator light is always on.
6. Check if chains can run normally and make sure that chains and sprockets are engaged well, are not pressed or stuck or come off.
7. Make sure that the automatic lubrication devices for both chains and guide rails can work normally and heat-resistant lubricant is filled to them regularly.
8. If you are to check and repair the machine, please make sure to cut off the power source to prevent any electric shock or short-circuit.
9. If you are to check and repair the machine, please do so as possible as you can when the chamber is in room temperature.
10. During operation, be careful of over-heat and avoid being burnt.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
