8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
  • name
  • name
  • name

8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control

MOQ: 1Set
Price: USD 14000-16000 Per Set
Standard Packaging: Woodencase
Delivery Period: 25 Days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 50 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONREAL
Certification
CE
Model Number
HRM-840
Heating Zones:
8 Zones
Heating Tunnel:
2673mm
Dimension:
L4600*W1200*H1450
Rising Time:
20 Mins
Controlling Type:
Touch Screen And PLC
Heating Method:
Fully Forced Air Convection
Temperature Controlling:
PID Close-loop Control, SSR Drive
Temperature Range:
Ambient---350℃
Temperature Accurancy:
±1 ℃
Max PCB Width:
400mm
Highlight:

SMT Reflow Soldering Machine Hot Air

,

SMT Reflow Soldering Machine 8 Zone

,

Surface Mount 8 Zone Reflow Oven

Product Description
Hot Air SMT Reflow Soldering Machine, Surface Mount 8 Zone Reflow Oven
Product Specifications
Attribute Value
Heating zones 8 zones
Heating tunnel 2673mm
Dimension L4600*W1200*H1450
Rising time 20 mins
Controlling type Touch screen and PLC
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---350℃
Temperature accuracy ±1 ℃
Max PCB width 400mm
8 Zones Lead Free SMT Hot Air Reflow Oven
This surface mount solder reflow machine features advanced technology for precise temperature control and efficient lead-free processing.
Key Features
  • Streamlined design with PLC+PID closed loop control for high precision temperature control
  • Stores 50 temperature parameter groups with 2 additional ports for profile testing
  • Premium components including Schneider breakers and Omron relays

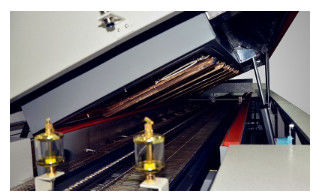

  • Easy-access design with openable upper zone, hood, and electrical box cover
  • Stainless steel inner tunnel resistant to high temperatures
  • Full forced hot air convection in all zones
  • Stainless steel mesh belt with hardened rail for stability
  • Modular design for quick maintenance and reduced downtime
Technical Parameters
Model HRM-840
Heating zones Upper 8 zones, Bottom 8 zones
Net weight about 1300Kg
General power 53KW
Power consumption Approx.5--9KW
Temperature uniformity ±2 ℃
Cooling Two cooling zones with industrial chiller

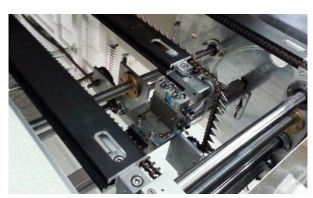

Conveyor method Mesh belt and chain conveyor
Conveyor speed 0-900mm/min
Power supply 380v,3ph,50hz

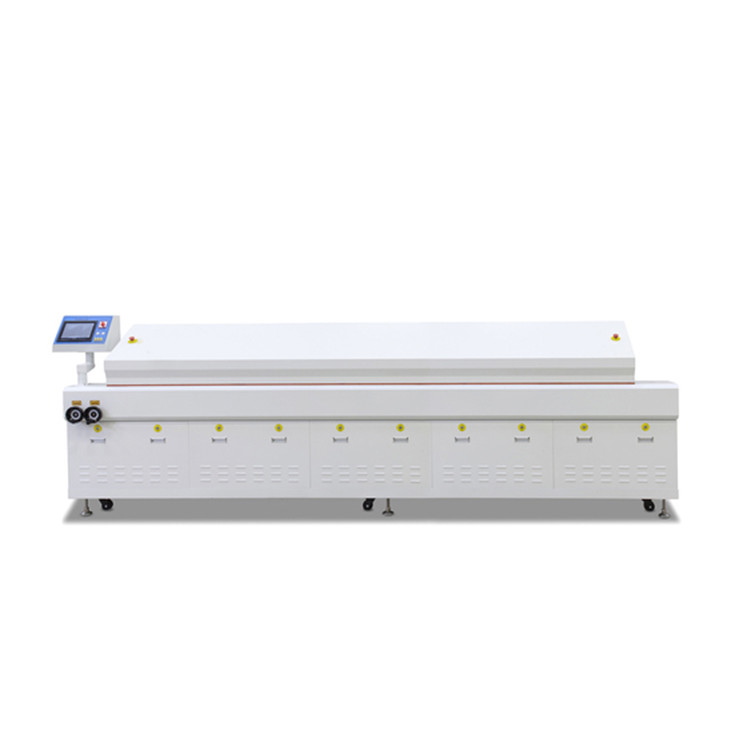

Product Images
8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 0 8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 1 8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 2 8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 3 8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 4
Manufacturer Information
Shenzhen Honreal Technology Co., Ltd is a professional manufacturer of SMT electronic equipment, specializing in reflow ovens, PCB handling equipment, and other SMT automation solutions.
8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 5
Certifications
8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 6
Our Services
We provide comprehensive support including product analysis, recommendations, installation, training, and long-term technical assistance. Our commitment includes:
  • Detailed product analysis before purchase
  • Strict quality control and on-time delivery
  • Installation, commissioning, and training services
  • Long-term technical support and spare parts availability
Packaging & Shipping
8 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control 7
Frequently Asked Questions
How can you guarantee your sales' quality?
We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
How is the training?
After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Can I have my logo on the product?
We perfectly support customized logo service, and it's totally free. Just tell us your requirements.
Is it hard to use these machines?
No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
