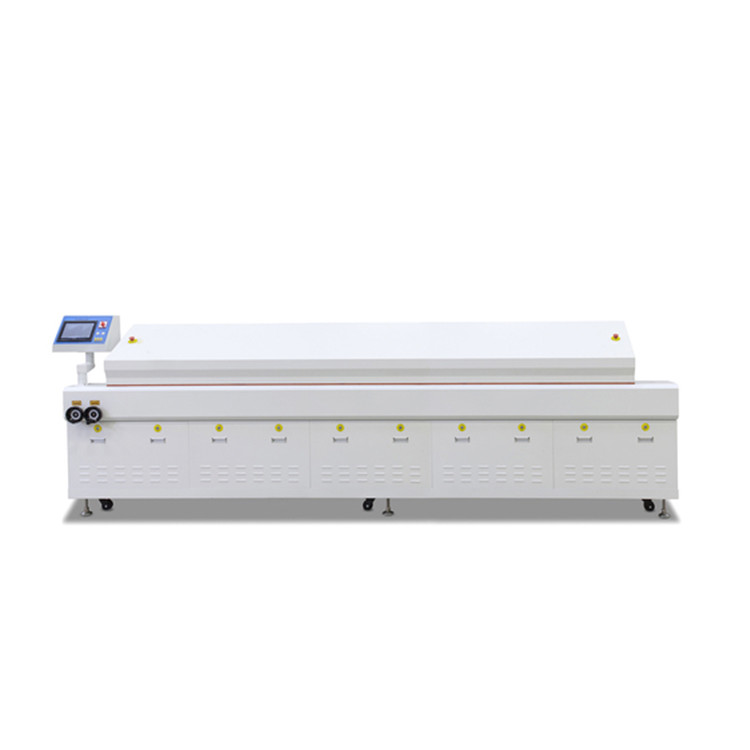

8 Zones Lead Free Smt Hot Air Reflow Oven Surface Mount Oven Solder Reflow Machine
Product introduction:
Machine's parameters:
| Model | HRM-840 |
| Heating zones | Upper 8 zones |
|
Bottom 8 zones
|
|
| Heating tunnel | 2673mm |
| Dimension | L4600*W1200*H1450 |
| Net weight | about 1300Kg |
| General power | 53KW |
| Power consumption | Approx.5--9KW |
| Ramp Time from Room Temperature to 260 Deg C | < 20 mins |
| Controlling type | Touch screen and PLC |

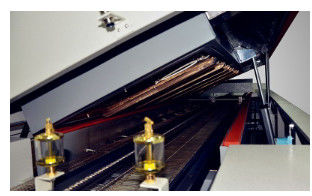

| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---350℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±2 ℃ |
| Cooling | Two cooling zones,industrial chiller for cooling |

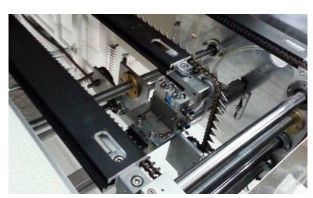

| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Mesh belt width | 450mm |
| Max PCB width | 400mm |
| Width adjustment | Manual |
| PCB clearance | 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-900mm/min |
| Hook lift | Electrical screw pole |
| Power supply | 380v,3ph,50hz |
Machine characters:
Shenzhen Honreal Technology Co.,Ltd is a Professional manufacturer of SMT electronic equipment. The main products: Reflow oven /pcb loader and unloader / pcb cutting machine/smt peripheral equipmen/ PCBA cleaning machine / BGA Rework Station and so on smt automation equipment.Honreal integrates SMT automation design and development, production, sales, service in one of the professional electronic equipment manufacturers.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
