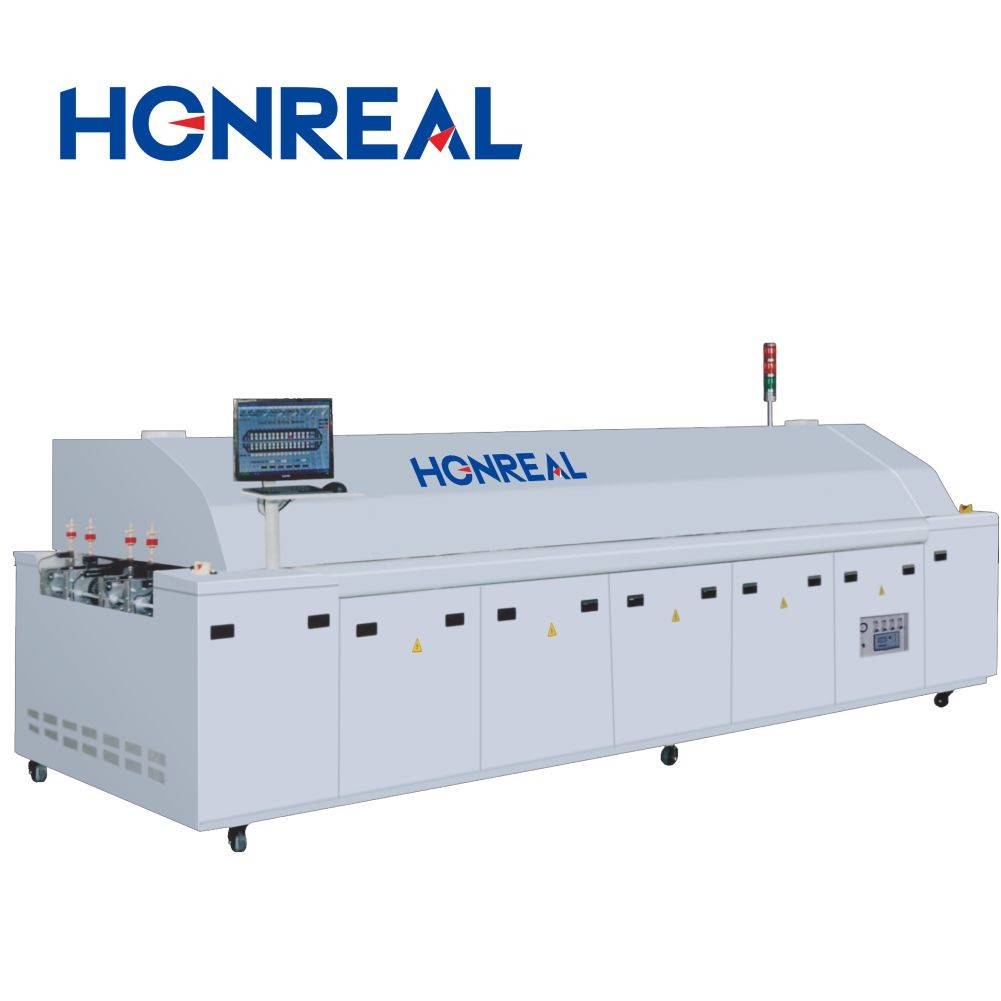

Smt Vitronics Reflow Oven 8 Zones Nitrogen N2 Lead Free Reflow Oven
Features:
HR series micro cycle solder-reflow machines adopt a pipe nozzle comparable with that made by ERSA Germany. The thermal efficiency of pipe nozzles construction (example: ERSA type hot wind construction) is higher than that of perforated plate construction (example: HFLLER type hot wind construction). Therefore can effectively solve problems such as interval interference and dead angle of conveyor.
| Machine | HR-8C |
| Heating zones | Upper 8 zones |
| Bottom 8 zones | |
| Heating tunnel | 2800mm |
| Dimension | L4900*1270*1450mm |
| Net weight | About 1600Kg |
| General power | 45KW |
| Power consumption | Approx 8 KW |
| Rising time | 20 minutes |
| Controlling type | PC + PLC controlling |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---300℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±1.5 ℃ |
| Cooling | 1 cooling zones (top and bottom) |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Max PCB width | 350mm |
| PCB clearance | Top / Bottom 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-1800mm/min |
| Hook lift | Electrical screw pole |
| UP/Downstream communication | SMEMA |
| Power supply | 380v,3ph,50hz |
Details

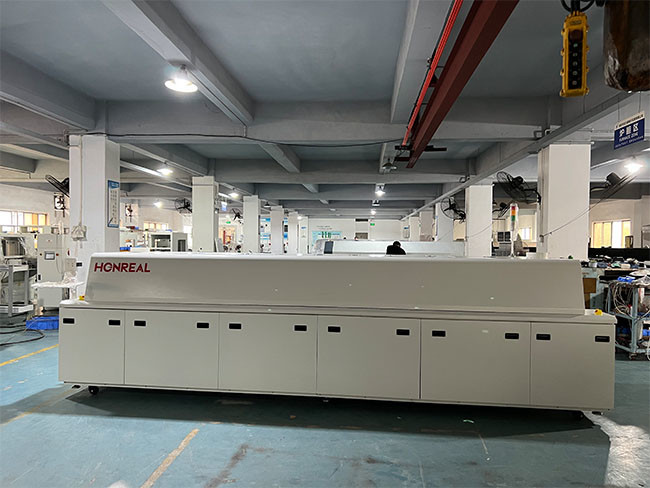

Photo show:
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
