6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
  • name
  • name
  • name

6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel

MOQ: 1Set
Price: USD 9000-11000 Per Set
Standard Packaging: Export wooden box packaging
Delivery Period: 15 Days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONREAL
Certification
CE
Model Number
HRE-640
Heating Zones:
6 Zones
Heating Tunnel:
1938mm
Dimension:
L3571*W1200*H1450
Cooling:
One Cooling Zone, Fans For Cooling
Controlling Type:
Touch Screen And PLC
Temperature Accurancy:
±1 ℃
Max PCB Width:
400mm
Mesh Belt Width:
450mm
Highlight:

SMT Reflow Soldering Machine Reflow Oven

,

SMT Reflow Soldering Machine 1938mm

,

Hot Air Reflow Oven 6 Zones

Product Description
6 Zones SMT Reflow Soldering Machine Hot Air Reflow Oven 1938mm Heating Tunnel
Product Specifications
Attribute Value
Heating zones 6 zones
Heating tunnel 1938mm
Dimension L3571*W1200*H1450
Cooling One cooling zone, fans for cooling
Controlling type Touch screen and PLC
Temperature accuracy ±1 ℃
Max PCB width 400mm
Mesh belt width 450mm
Hot Air Convection Reflow Soldering LED Low Cost Reflow Oven Machine
Key Features
  • Streamlined shape design with touch screen and PLC control system
  • Stores 50 temperature parameter groups with 2 profile testing ports

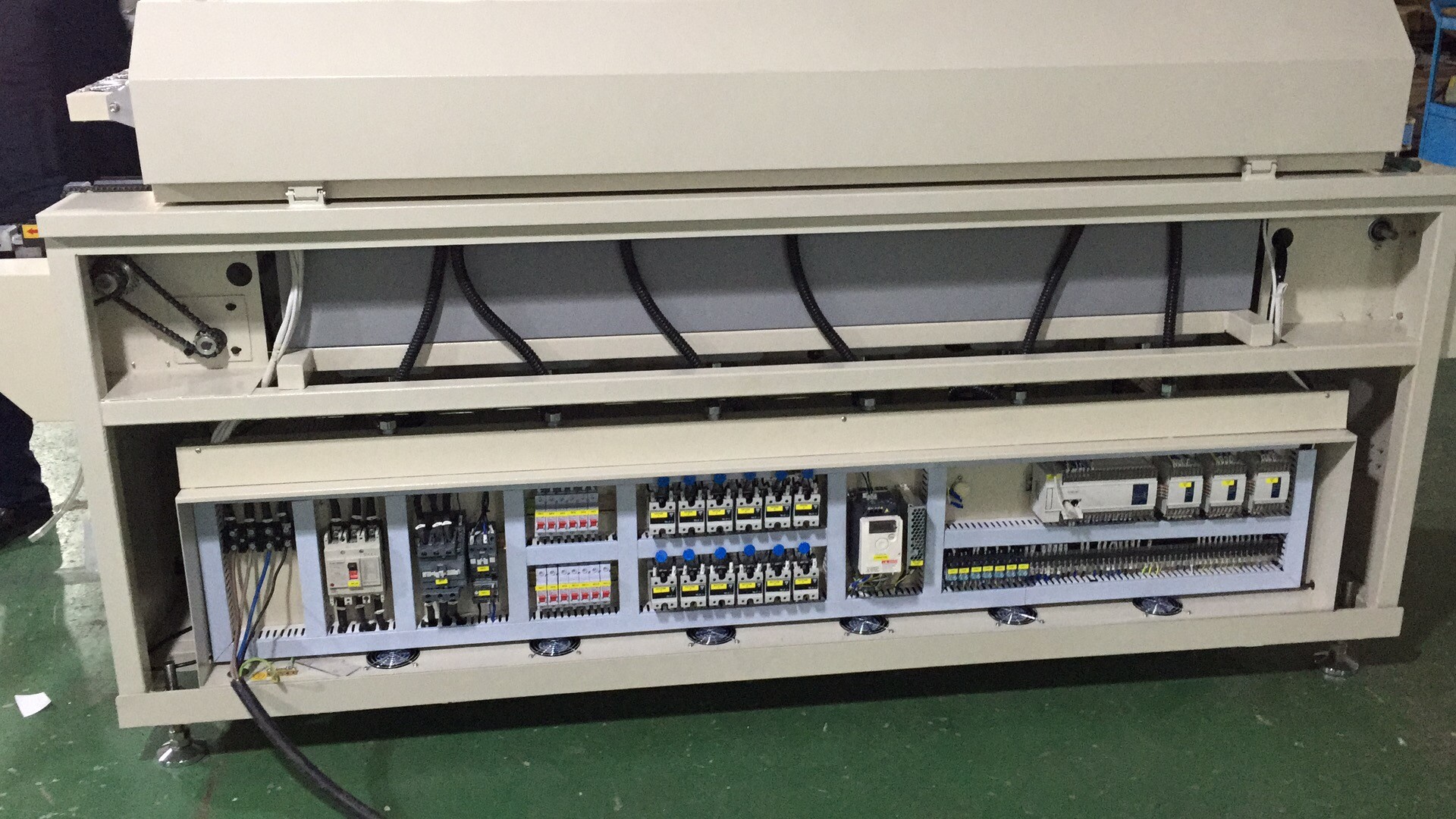

  • Premium components: Schneider breakers, KETE SSR, Omron box breakers
  • Automatically opening upper zone and hood for easy maintenance
  • Safety electrical pole prevents cover drop during power failure
  • Ni-Cr heater filaments provide rapid 15-minute ramp-up time
  • Stainless steel inner tunnel for easy cleaning
  • Forced air convection for superior temperature accuracy (±1℃)

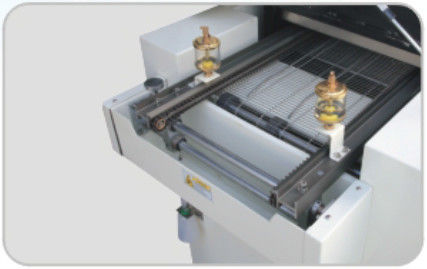

  • Dual conveyor system: stainless steel mesh belt with pin chain
  • Industrial chiller for enhanced cooling performance
  • SMEMA interface compatibility
Technical Parameters
Model HRM-640
Heating zones Upper 6 zones
Bottom 6 zones
Heating tunnel 1938mm
Dimension L3571*W1200*H1450
Net weight About 1100Kg
General power 41KW
Power consumption Approx. 8-8KW
Ramp time (to 260°C) < 15 mins
Temperature range Ambient - 350℃
Temperature uniformity ±2 ℃
Conveyor height 900±20mm
PCB clearance 30mm
Aluminum Heating System (HRE-640 Model)
  • Composed of 2 aluminum plates and 2 stainless steel U-shape heaters
  • Simplified maintenance with easy screw-based heater replacement
  • Extended service life compared to traditional heating elements
  • Superior materials ensure temperature stability
  • Retrofit compatible with existing reflow ovens

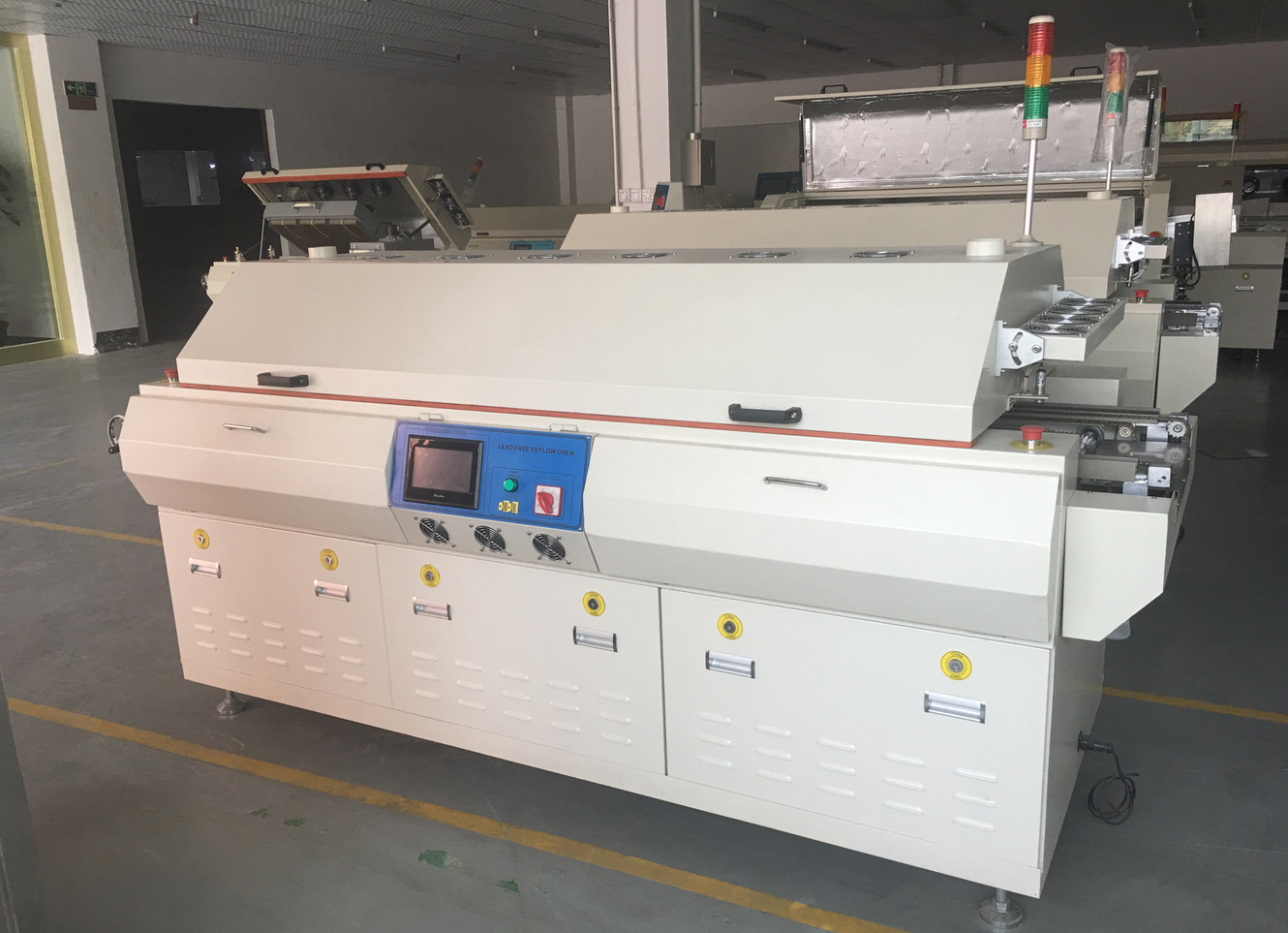

Product Images
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 0 6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 1
Company Profile

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise specializing in SMT equipment R&D, production, and sales. With 5 million registered capital, we serve top global electronics companies with experienced technical teams and innovative solutions.

6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 2
Certifications
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 3
Our Services
  • Pre-sale consultation and product recommendations
  • Strict quality control and on-time delivery
  • Installation, commissioning, and technical training
  • Long-term technical support and spare parts supply
  • Comprehensive after-sales service
Frequently Asked Questions
Q: How can you guarantee your sales' quality?
A: Every machine undergoes rigorous testing before delivery to ensure excellent performance.
Q: How is the training?
A: We provide training videos and detailed user manuals with each machine. On-site training for engineers is also available.
Q: Can I have my logo on the product?
A: Yes, we offer free customized logo service according to your requirements.
Q: Is it hard to use these machines?
A: Most operators become proficient within 2 days of training.
Packaging & Shipping
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 4
