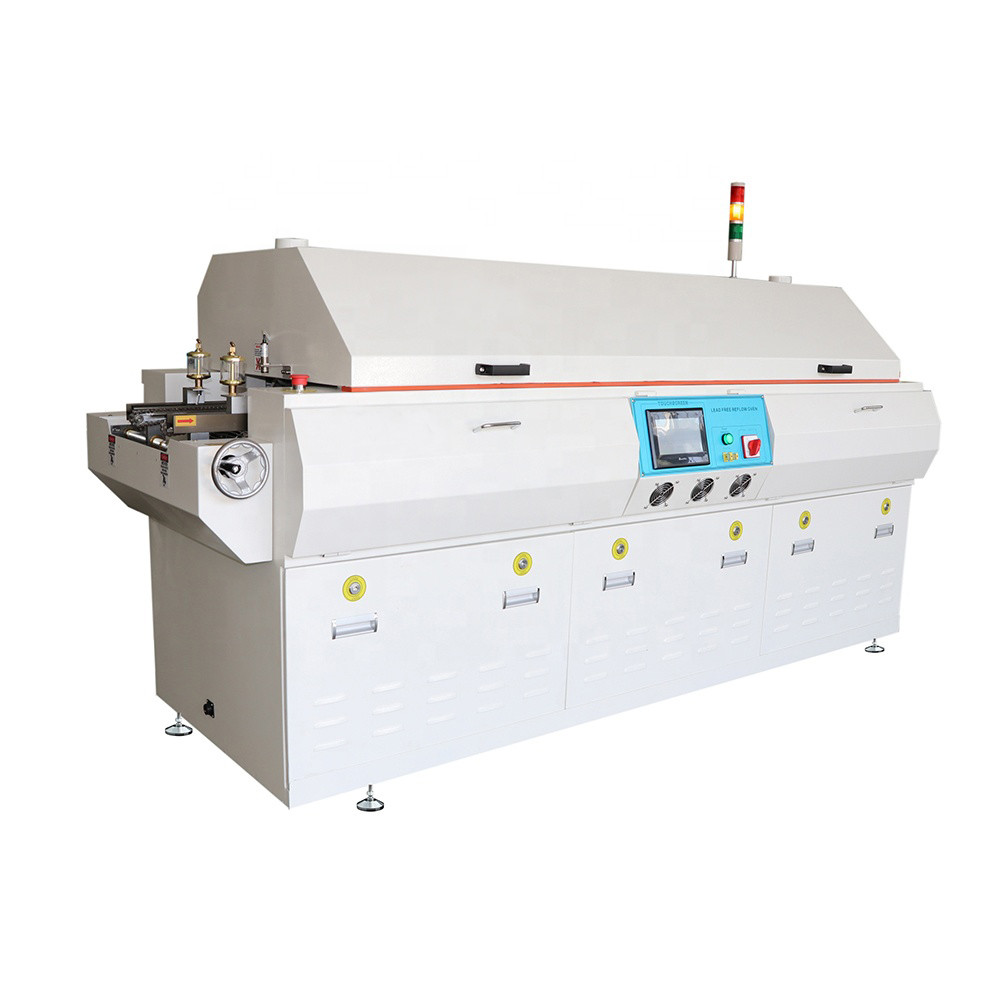

4 Zone SMT Reflow Oven with Touch Screen PLC Control
  • name
  • name
  • name
  • name

4 Zone SMT Reflow Oven with Touch Screen PLC Control

MOQ: 1Set
Price: Negotiable
Standard Packaging: Export wooden box packaging
Delivery Period: 20 Days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONREAL
Certification
CE
Model Number
HRE-430
Heating Zones:
4 Zones
Rising Time:
15 Mins
Controlling Type:
Touch Screen And PLC
Temperature Controlling:
PID Close-loop Control, SSR Drive
Temperature Accurancy:
±1 ℃
CoolingTemperature Uniform:
±2 ℃
Max PCB Width:
300mm
Mesh Belt Width:
330mm
Highlight:

Automatic 4 Zone Reflow Oven

,

Small 4 Zone Reflow Oven

,

PLC small reflow oven

Product Description
Automatic Small SMT 4 Zone Reflow Oven With Touch Screen PLC Control
Key Specifications
Attribute Value
Heating zones 4 zones
Rising time 15 mins
Controlling type Touch screen and PLC
Temperature controlling PID close-loop control, SSR drive
Temperature accuracy ±1 ℃
Cooling temperature uniform ±2 ℃
Max PCB width 300mm
Mesh belt width 330mm
Product Features
  • Streamlined design with touch screen and PLC control system capable of storing 50 temperature profiles
  • Advanced software with temperature setting/editing, PCB parameter menu, profile testing, alarms, and multi-language support
  • Premium components including Schneider breakers, KETE SSR, and Omron box breakers
  • Electrically operated upper zone and hood for easy cleaning and maintenance
  • Specially designed Ni-Cr heater filaments enable rapid 15-minute warm-up from ambient
  • Stainless steel inner tunnel for easy cleaning
  • Full forced air convection for superior temperature accuracy (±1℃) and uniformity (±2℃)

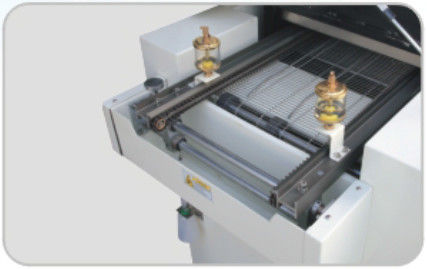

  • Combination stainless steel mesh belt and pin chain conveyor system
  • Industrial chiller for enhanced cooling performance
  • SMEMA interface compatibility
Technical Specifications
Model HRE-430
Heating zones Upper 4 zones, Bottom 4 zones
Heating tunnel 980mm
Dimensions L1920×W750×H1250mm
Net weight Approx. 280Kg
Power requirements 380V, 3 phase, 50Hz
General power 23KW
Power consumption Approx. 3-7KW
Temperature range Ambient to 350℃
Conveyor speed 0-900mm/min
PCB clearance 30mm

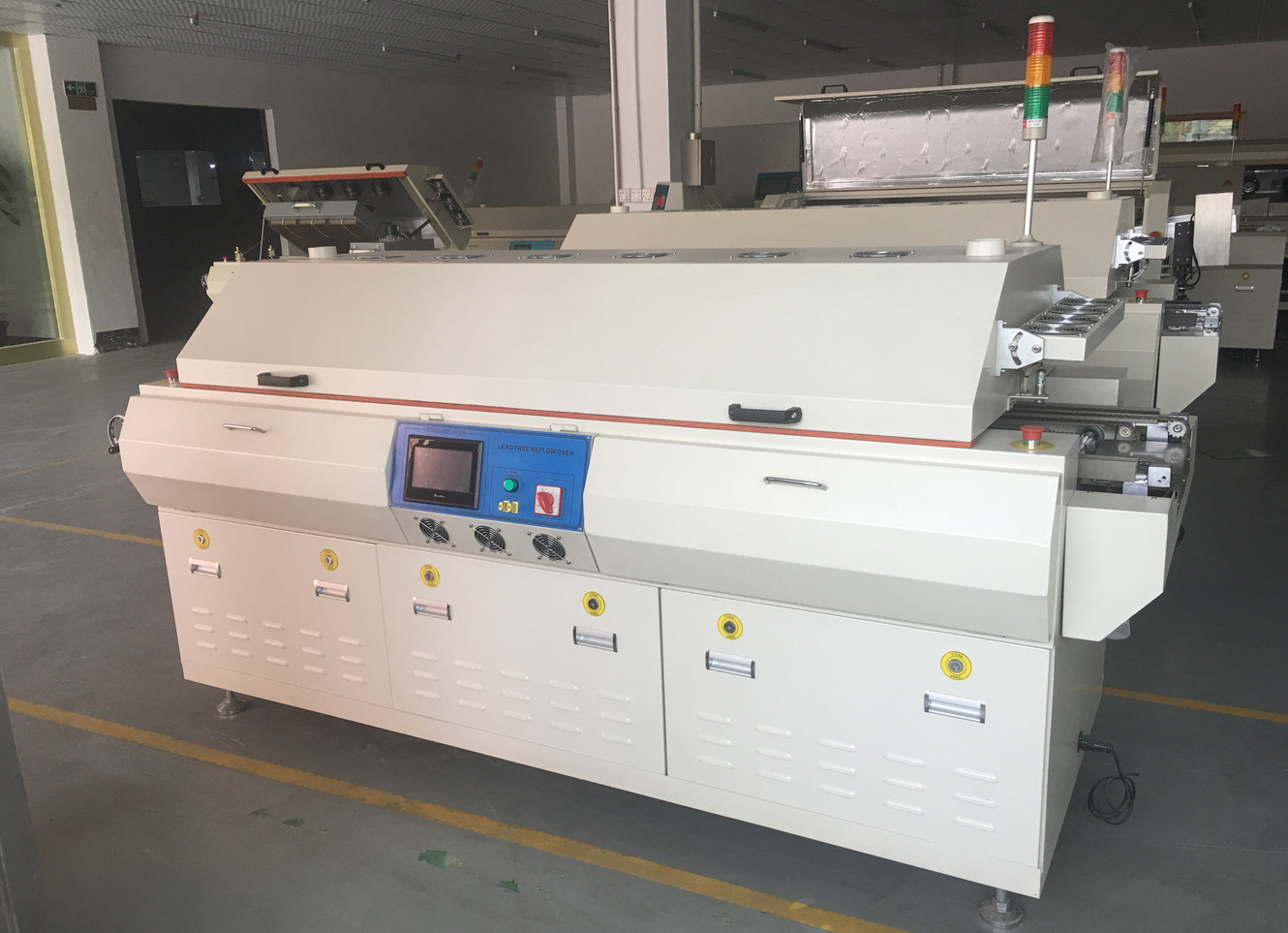

Machine Schematic
4 Zone SMT Reflow Oven with Touch Screen PLC Control 0

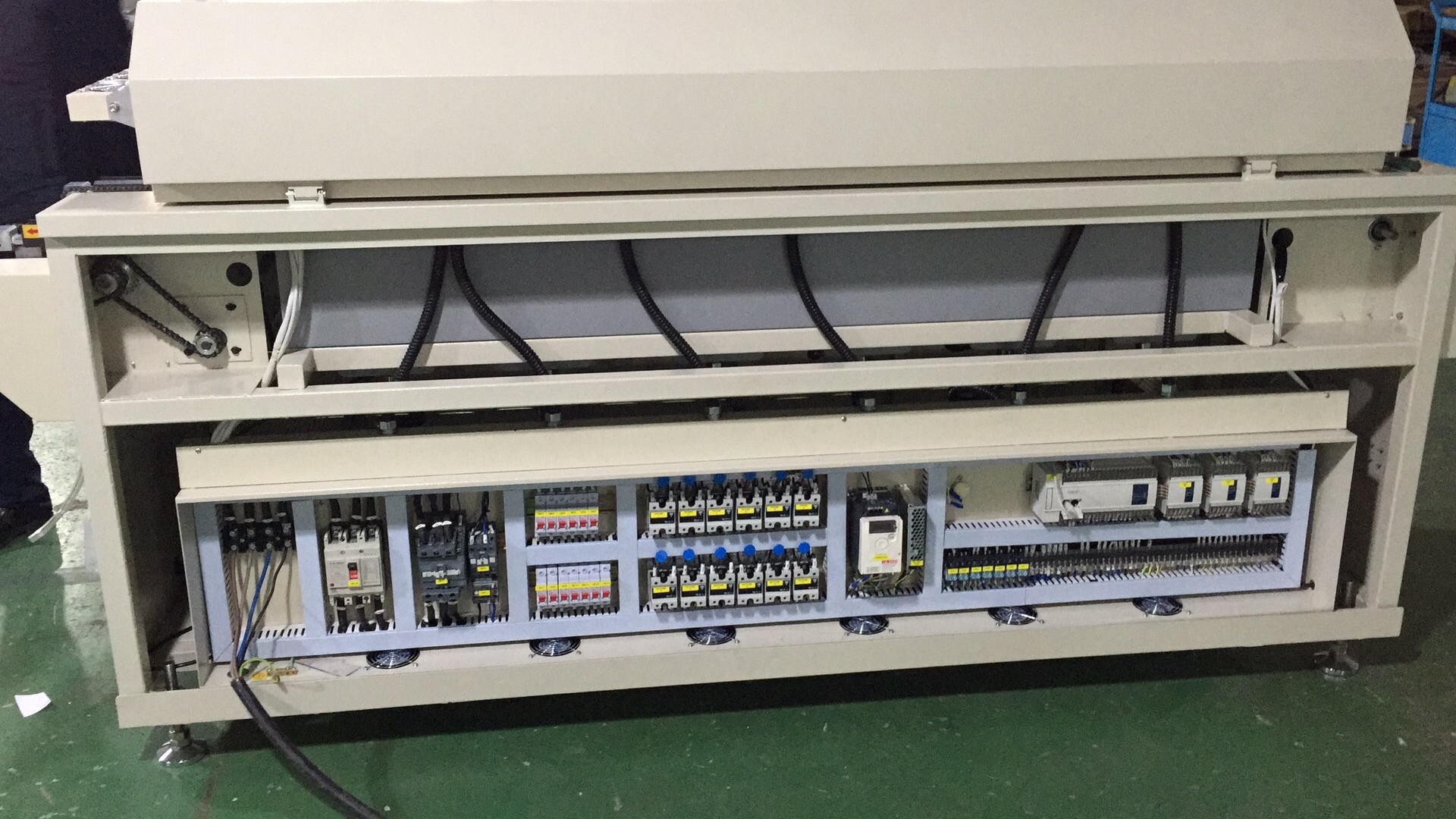

Electrical Components
4 Zone SMT Reflow Oven with Touch Screen PLC Control 1
Frequently Asked Questions
How can you guarantee your sales' quality?
We guarantee that every machine undergoes rigorous testing before delivery to ensure excellent performance.
How is the training?
After purchase, your engineers can visit our facility or easily learn operation through training videos and user manuals included with the machine.
Can I have my logo on the product?
We fully support customized logo services at no additional cost - simply provide your requirements.
Is it hard to use these machines?
No, most clients become proficient in operation within 2 days.
Packaging & Shipping
4 Zone SMT Reflow Oven with Touch Screen PLC Control 2
