Product introduction:

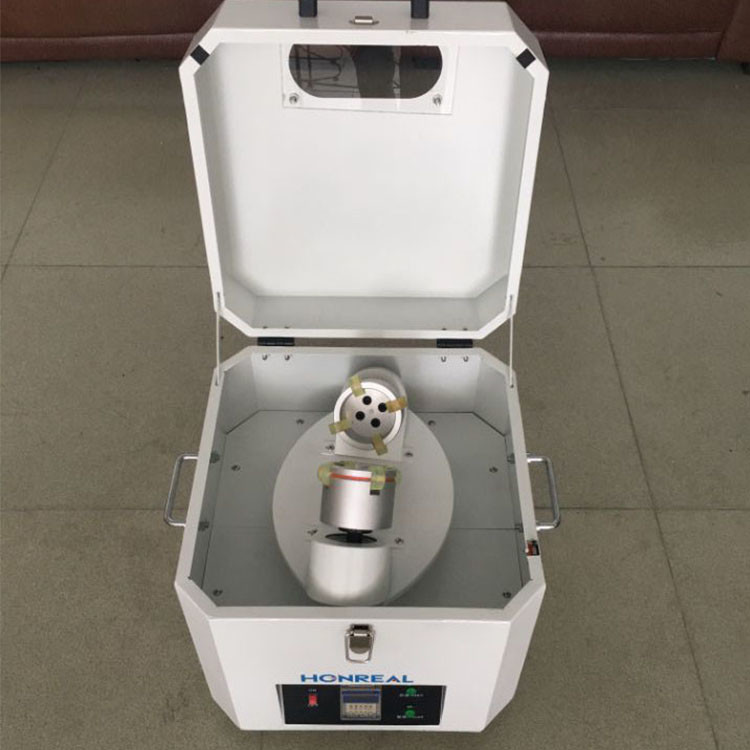

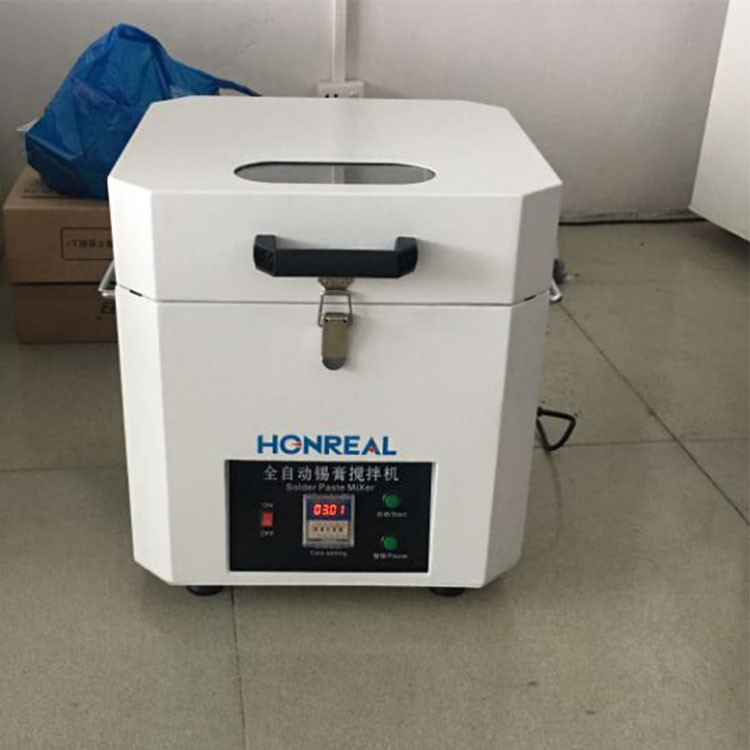

Automatic Solder Paste Mixer makes solder paste move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution. Solder paste located in the tank bottom makes upward movement from the surrounding, which forms a tornado-funnel shaped stirring action, and it can stir, soften and de-foam the solder paste with appropriate viscosity. Solder paste has good wet-ability, even diffusivity, excellent printing effect after mixing, which achieves the best welding performance when reflowing soldering. Its characteristics are as follows:
Features:
1. Place the solder paste at 45 degrees ,rotate along the axis direction, solder paste no longer adhere to the tank.
2.Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.
3.Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient.
4.Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption.
5.Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste.
6.Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance.
7.Applies to Omron time relay controller, reliable and easy to operate
| Technical parameters | |
| Model No | HR-168 |
| Running speed | first rotation: 800 RPM; Secondary rotation: 600 RPM |
| Ability to work | 500g*2 tins (or customized) |
| Can accept solder paste pot | tin diameter Φ60-Φ67 standard configuration(or customized) |
| Time setting | 0.1s~9999s |
| Display mode | Microcomputer LED digital display |
| Power supply | AC220V 50/60Hz 180W |
| Machine size | 400*400*H430mm |
| Weight | 30Kg |
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
