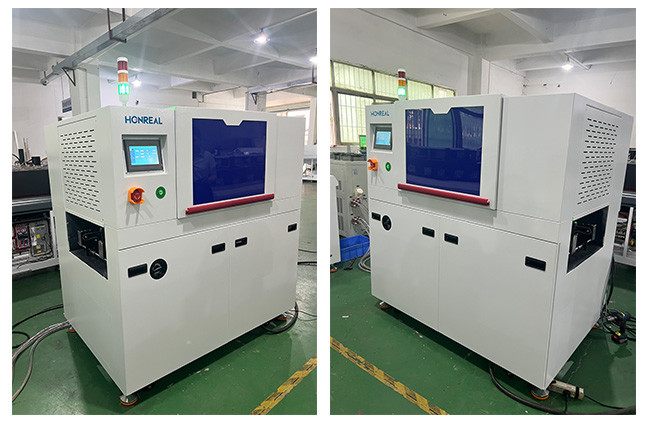

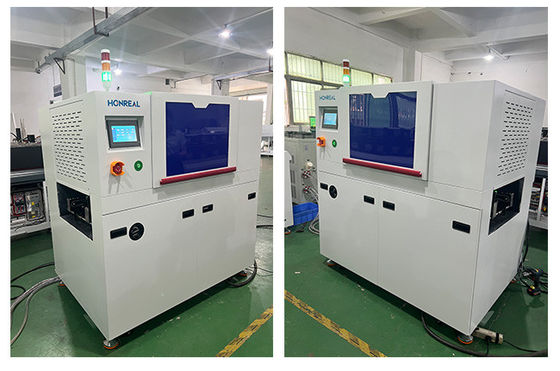

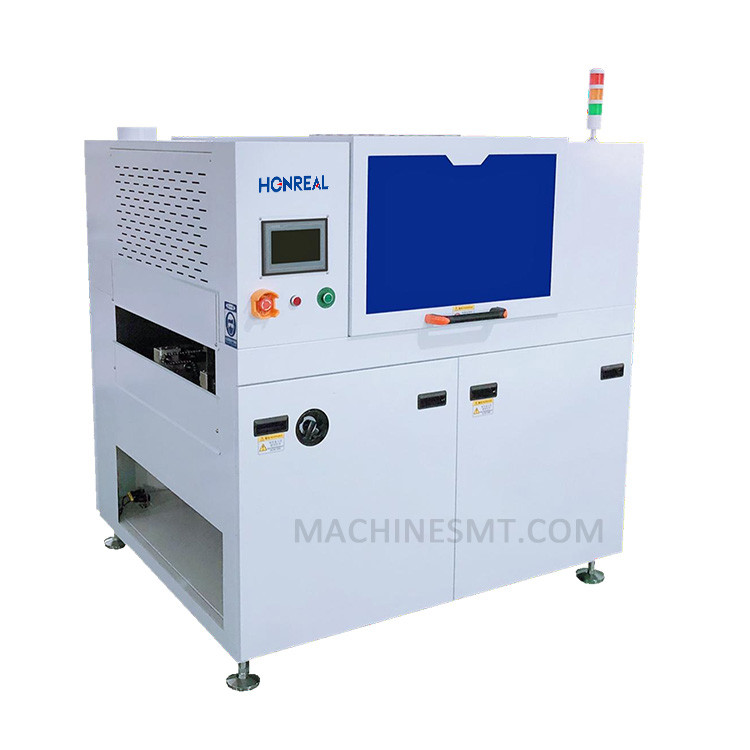

UV LED Curing Oven for PCB Conformal Coating 6KW/12KW

MOQ: 1
Price: USD 16000-25000 Per Set
Standard Packaging: Export wooden box packaging
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honreal
Certification
CE
Model Number
HR-UVLED12
Control System:
PLC +Kunlun Tongtai
Conveyor Speed:
0.3-2.5M/min
LED The Type Of Light Source:
UV LED Lamp Beads
LED The Size Of The Light Source:
420*320mm
LED Main Peak Wavelength:
395nm
LED The Light Intensity Of The Light Source:
6KW/12KW
LED Life:
>20,000 Hours
Dimensions:
L1500*W1010*H1500mm
Highlight:

Customized UV LED OVEN

,

uv led curing oven

Product Description
Customized UV LED OVEN For HumiSeal UV40 LED UV Curable Conformal Coating
Key Specifications
Attribute Value
Control system PLC +Kunlun Tongtai
Conveyor speed 0.3-2.5M/min
LED The type of light source UV LED lamp beads
LED The size of the light source 420*320mm
LED Main peak wavelength 395nm
LED The light intensity of the light source 6KW/12KW
LED life >20,000 hours
Dimensions L1500*W1010*H1500mm
Principle and Application

The UV-LED curing oven instantly cures UV-sensitive materials including glue, ink, and paint through high-intensity ultraviolet radiation (365nm/395nm/405nm peak wavelengths). This initiates rapid polymerization and crosslinking reactions, transforming liquid resins to solid state within seconds.

Primary Applications:
  • Laser UV encapsulation curing
  • PCB industry LED UV light curing
  • Mobile phone component assembly (camera lenses, housings, touch screen coatings)
  • Hard disk head assembly (encapsulation, chip bonding)
  • Medical device adhesive curing
  • Optical communication components
  • PCB conformal coating
  • Printing industry ink and varnish curing
Functional Features
  • Robust Construction: Heavy-duty square tube frame with electrostatic powder coating for durability
  • Advanced Control: PLC + touch screen interface with comprehensive protection systems
  • Precision Conveyor: Chain transport system with adjustable height baffles for operator safety
  • High-Performance LED: Imported UVLED lamp beads with 1% power adjustment precision
  • Efficient Cooling: External chiller maintains optimal operating temperature
  • Smart Monitoring: Automatic usage tracking and fault alarm system
Technical Specifications
Category Item Specifications
System section Control system PLC +Kunlun Tongtai
Equipment operation mode Human Machine Interface
Communication port I/O control interface
Additional features Temperature monitoring, parameter password setting protection
Transportation section Transport method Hard Oxide Aluminum Alloy Track + 35B Stainless Steel Chain
Direction of transport Left to Right (standard)
Conveying height 900±20mm
Conveyor width 50-450mm
Conveyor speed 0.3-2.5M/min
PCB board height ±100mm
Transport load-bearing 4KG/meter evenly distributed
LED Light source section LED The type of light source UV LED lamp beads
LED The size of the light source 420*320mm (Customizable)
LED Main peak wavelength 395nm
LED The light intensity of the light source 6KW/12KW
Light source power 10％~100％adjustable
LED life >20,000 hours
